Fuel Pump Resistor: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL FUEL PUMP RESISTOR
    1. Install the resistor with the 2 bolts.

      Torque: 7.0 N*m (71.4 kgf*cm, 62 in.*lbf)

    2. Connect the connector.
  2. INSTALL FUEL PUMP RESISTOR COVER
    1. Install the cover to the resistor.
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

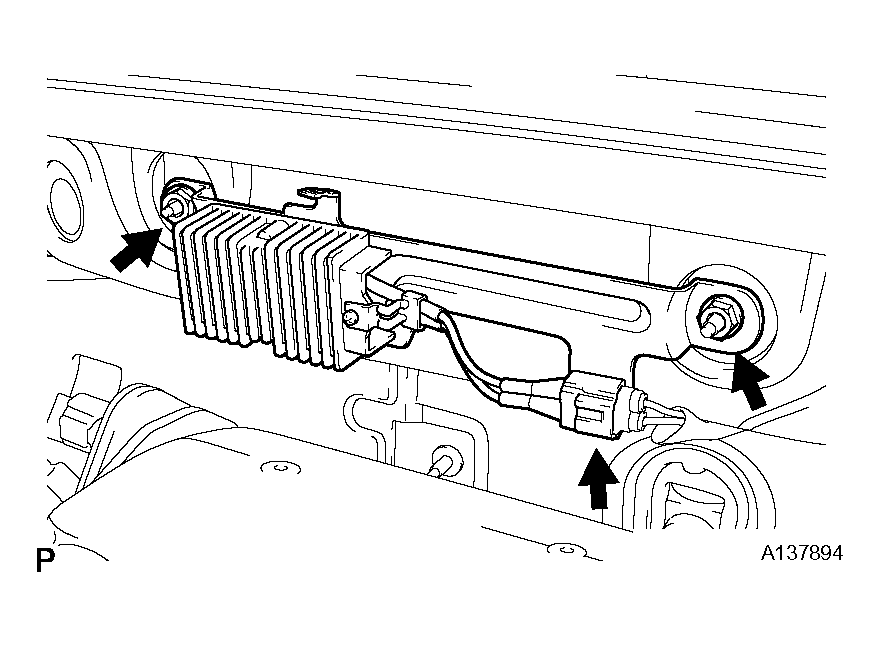

    Fig 1: Installing Cover To Resistor
    G04485591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
