Ignition System: Wiring Diagram

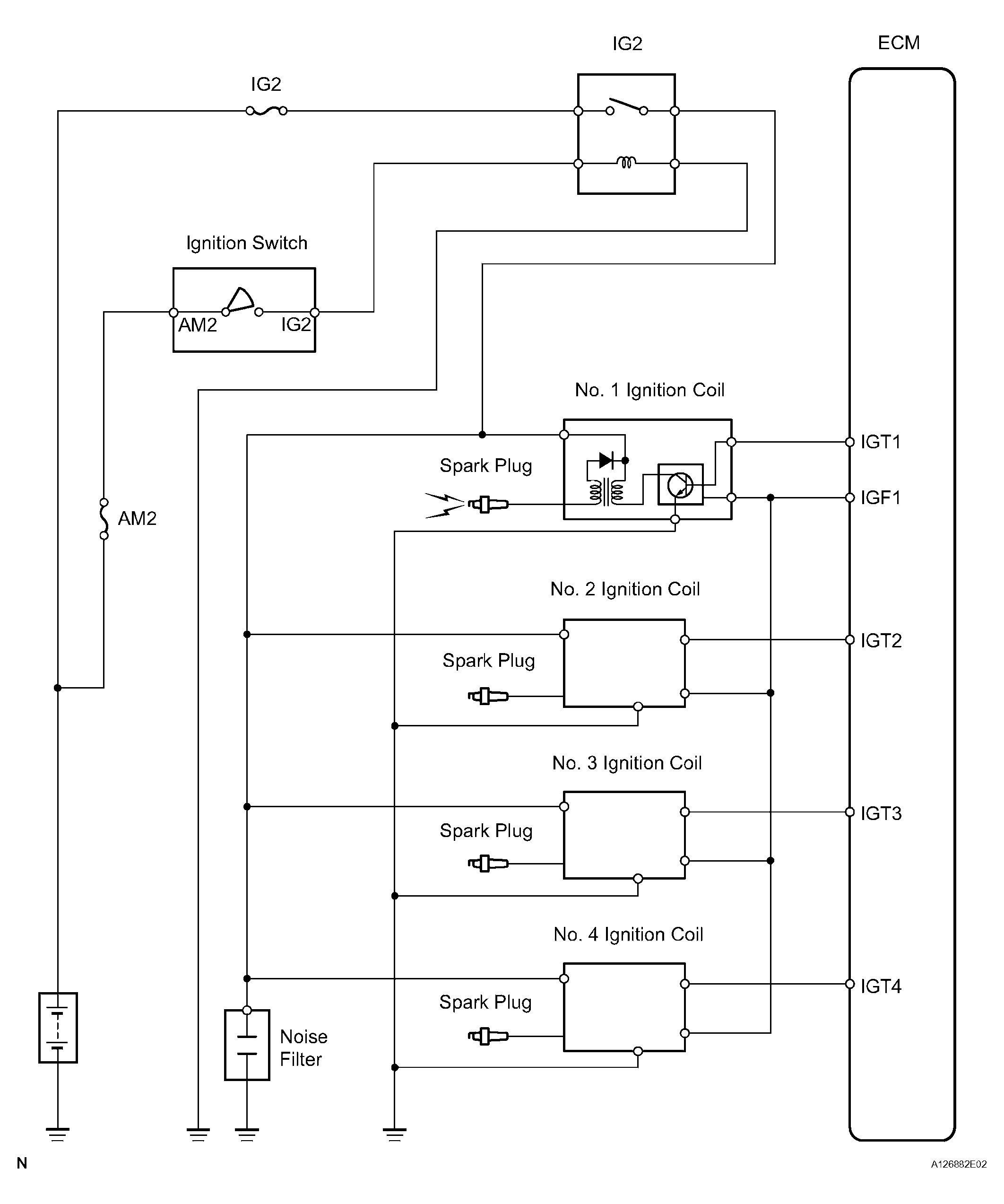

Fig 1: Ignition System Wiring Diagram (1 Of 2)
G04485982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

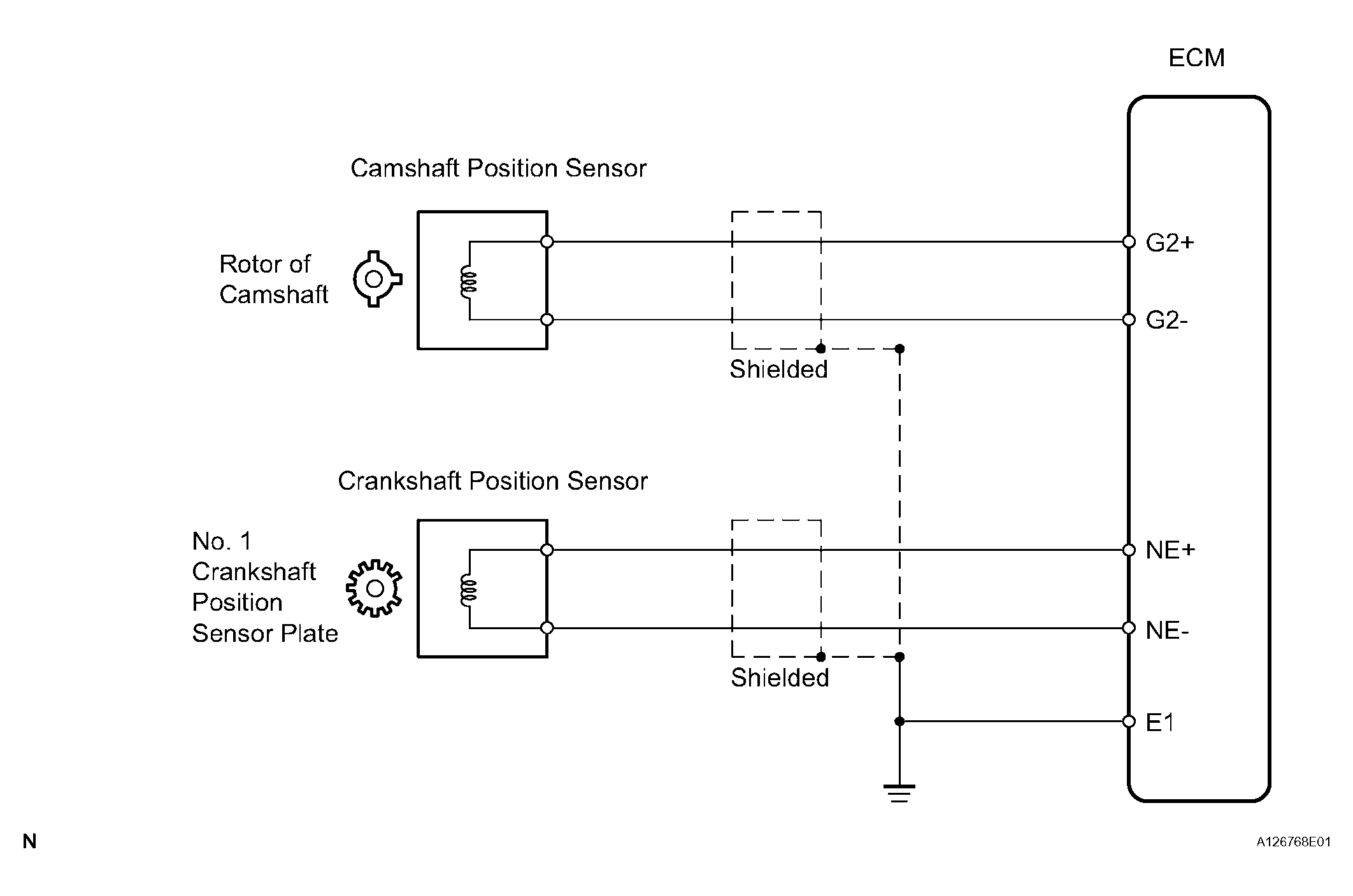

Fig 2: Ignition System Wiring Diagram (2 Of 2)
G04485983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
