Ignition Coil: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE NO. 1 ENGINE COVER (See  REMOVAL  )
  3. REMOVE IGNITION COIL ASSEMBLY
    1. Disconnect the 4 ignition coil connectors.
    2. Remove the 4 bolts and 4 ignition coils.

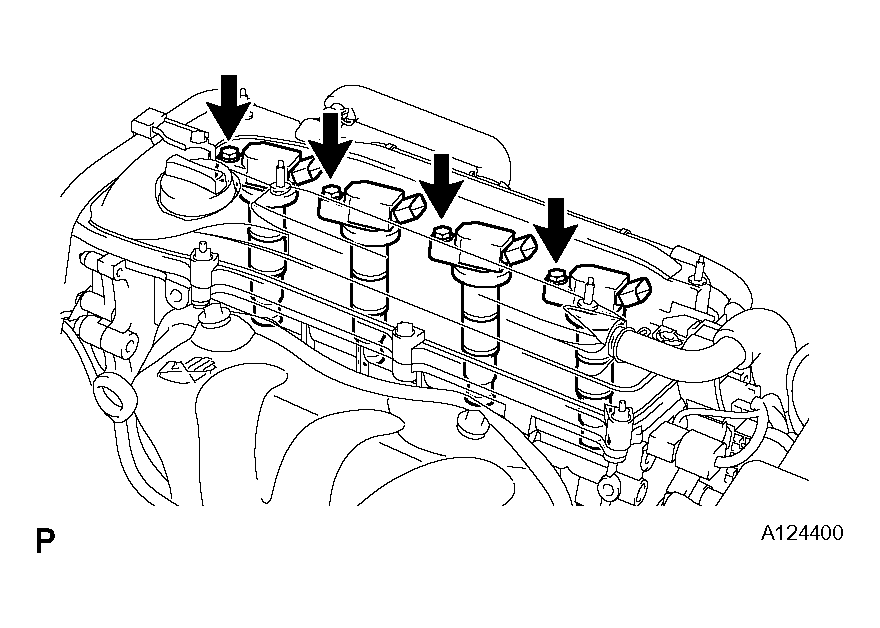

      Fig 1: Removing Ignition Coil Assembly
      G04485993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
