Slip Indicator Light Circuit: Wiring Diagram

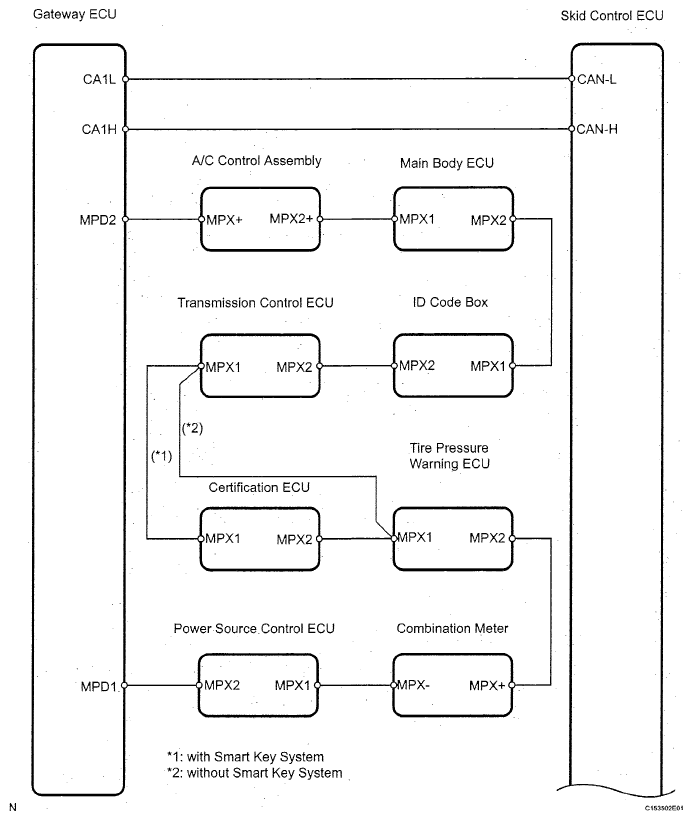

Fig 1: Slip Indicator Light Wiring Diagram (1 Of 2)
G05189315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

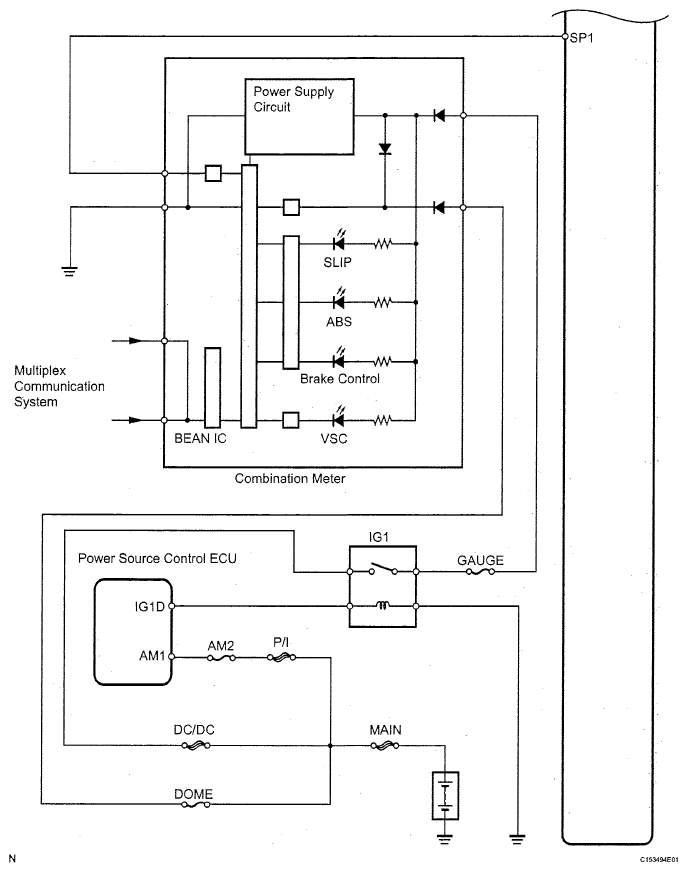

Fig 2: Slip Indicator Light Wiring Diagram (2 Of 2)
G05189313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
