Rear Stabilizer Bar: Removal

  1. REMOVE REAR AXLE BEAM DAMPER
    1. Remove the rear axle beam damper from the rear axle beam.
  2. REMOVE REAR STABILIZER BAR
    1. Remove the 2 bolts, 2 nuts and stabilizer bar.

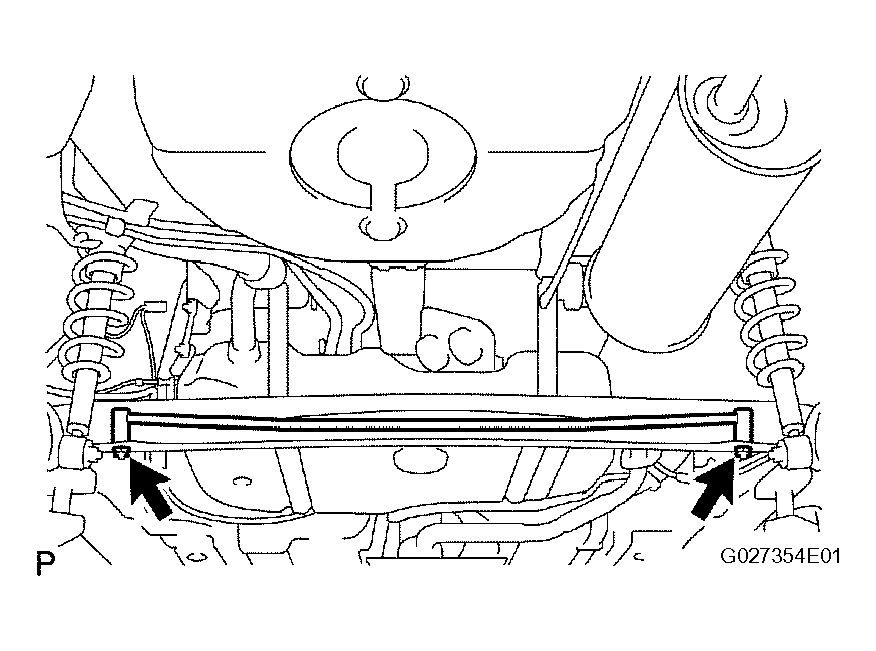

      Fig 1: Removing Rear Stabilizer Bar
      G04474476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
