Rear Axle Beam: Reassembly

1. When replacing only the bush:
   1. Temporarily install a new bush recess by aligning it with the matchmark on the rear axle beam.
      NOTE: Install the bush in the same direction as before it was removed.
2. When replacing the rear axle beam:
   1. Temporarily install a new bush as shown in Fig 1.
      Fig 1: Aligning Bush Recess With Matchmark On Rear Axle Beam

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST, install the bush to the rear axle beam.

   SST 09950-40011 (09951-04020, 09952-04010, 09953-04030, 09954-04020, 09955-04051, 09957-04010, 09958-04011), 09950-60010 (09951-00620), 09710-04101

   NOTE:

   • Hang the claw of SST to the bush firmly.
   • Do not damage the rubber sections indicated by the arrow in Fig 2 when installing the bush.

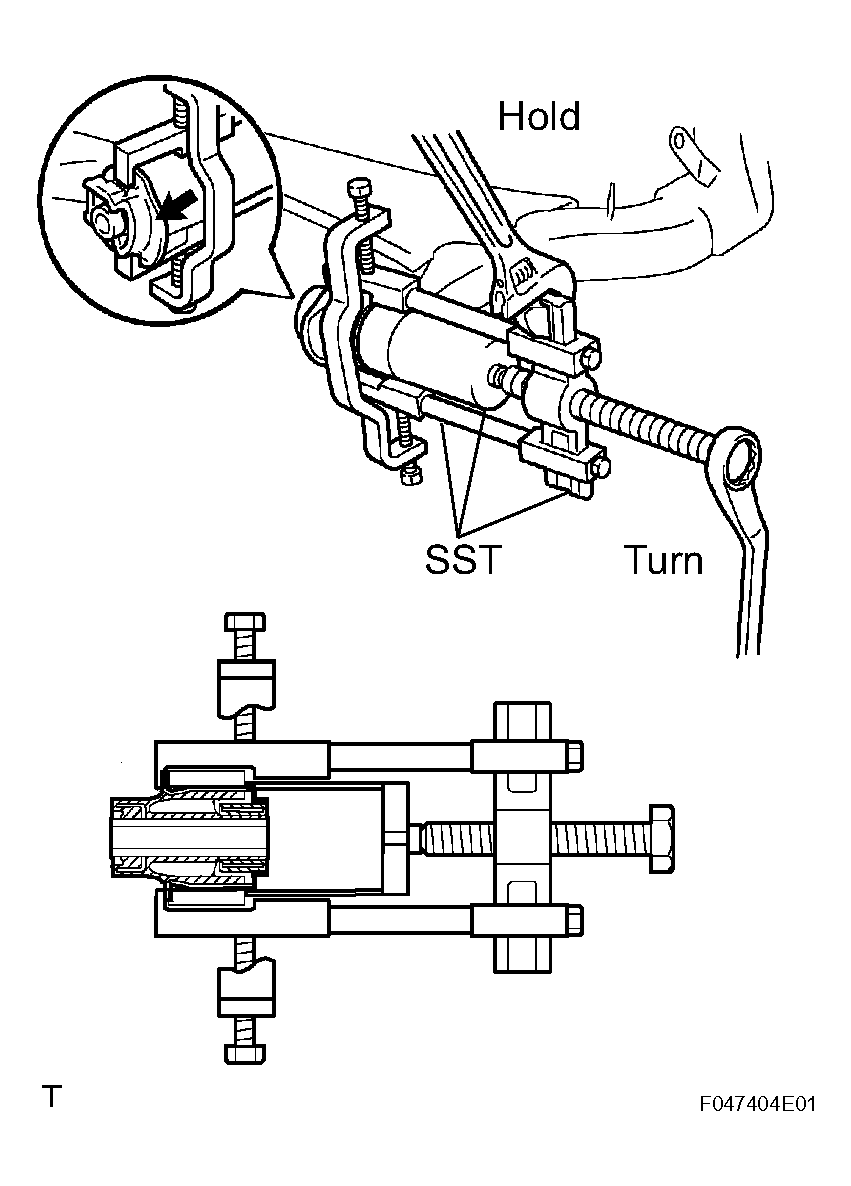

   Fig 2: Installing Rear Axle Carrier Bush

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedures for the RH side and LH side.
