Rear Axle Beam: Disassembly

1. Place a matchmark on the rear axle beam after aligning it with the bush recess.
2. Make 2 bends in the rim of the bush using a chisel and hammer.
3. Using SST, remove the bush from the rear axle beam.

   SST 09950-40011 (09951-04020, 09952-04010, 09953-04030, 09954-04020, 09955-04051, 09957-04010, 09958-04011), 09950-60010 (09951-00630)

   NOTE:

   • Do not erase the matchmark on the rear axle beam when removing the bush.
   • Apply chassis black if the rear axle beam is scratched.

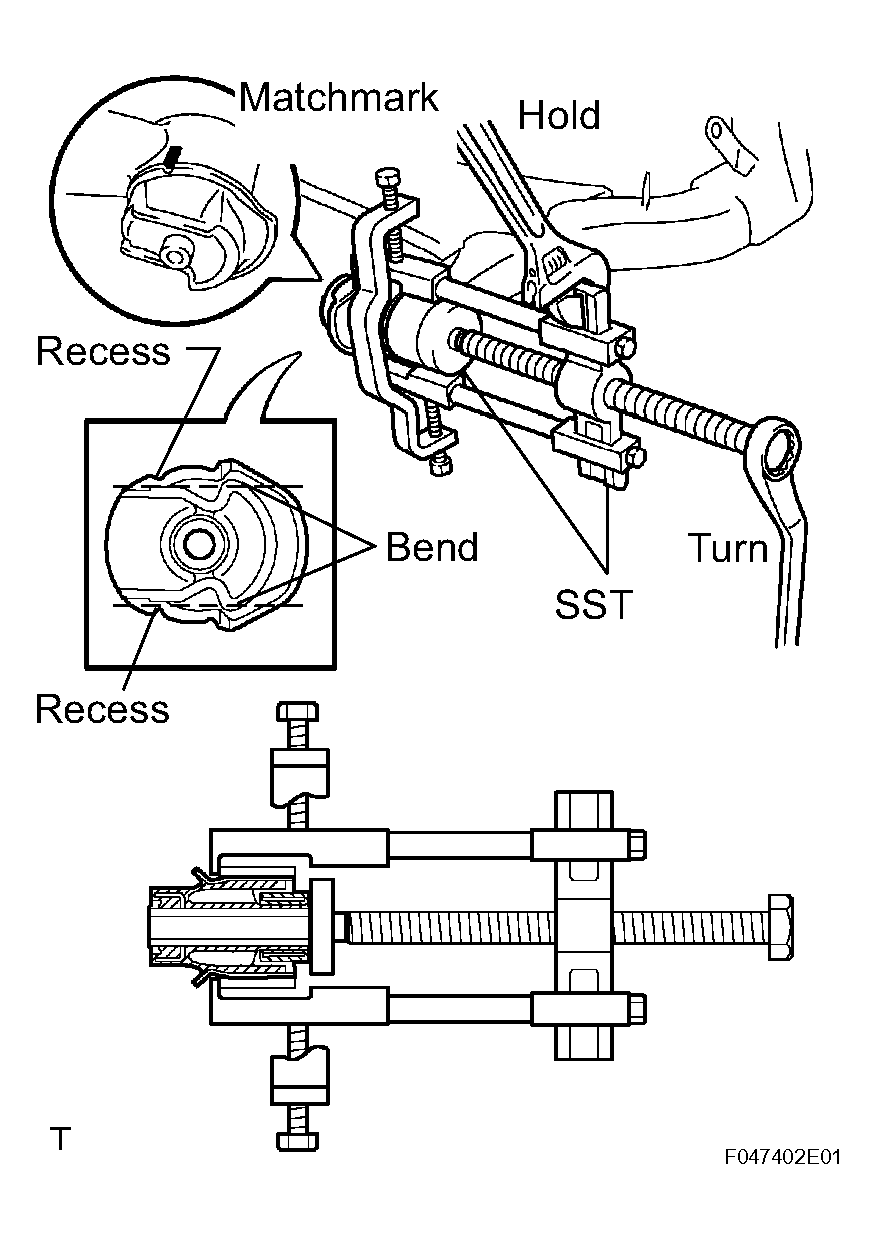

Fig 1: Removing Rear Axle Carrier Bush

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedures for the RH side and LH side.
