Front Suspension Lower No. 1 Arm: Components

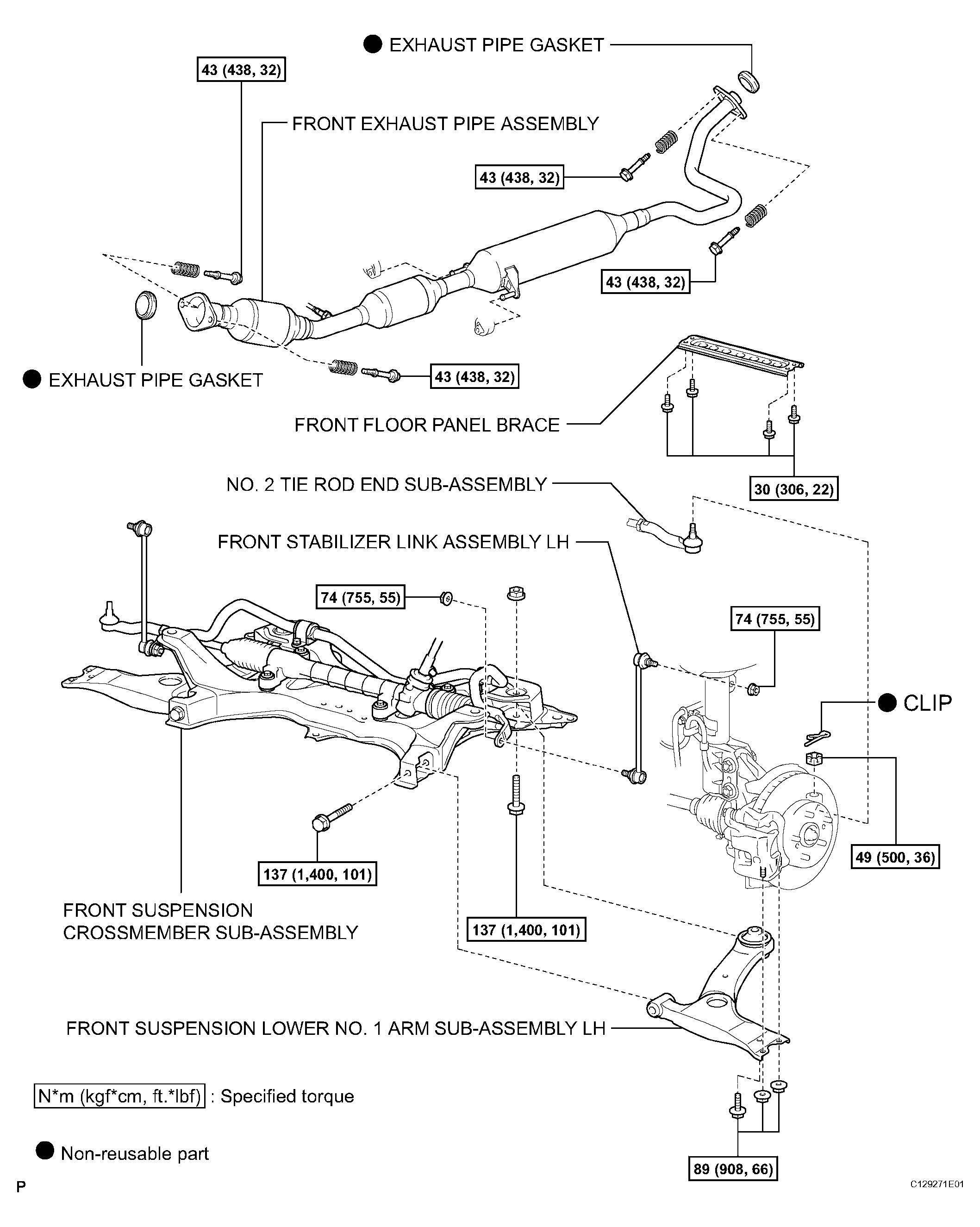

Fig 1: Front Suspension Lower Arm Replacement Components -- With Torque Specifications

G04474415

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
