Front Airbag Sensor: Components

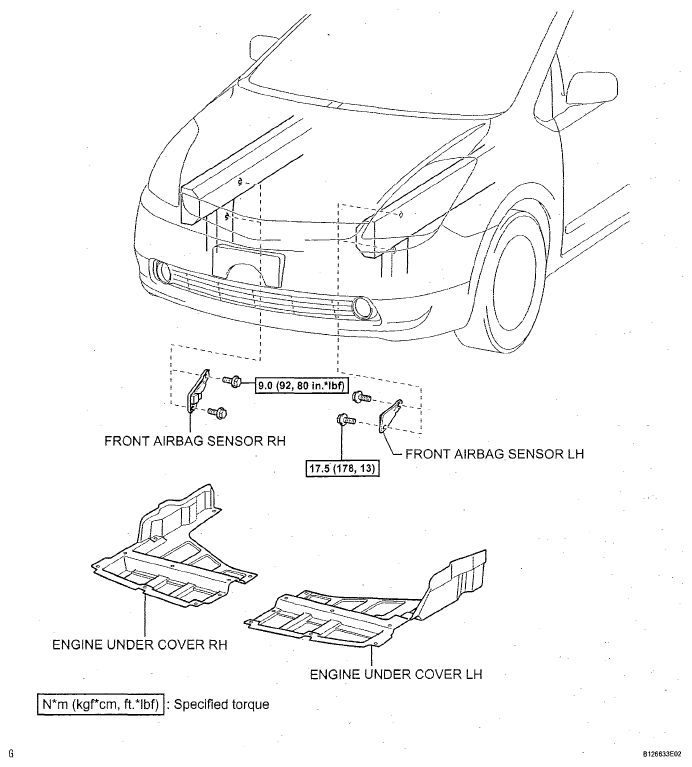

Fig 1: Front Airbag Sensor Replacement Components With Torque Specifications

G05189738

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
