Curtain Shield Airbag Assembly: Components

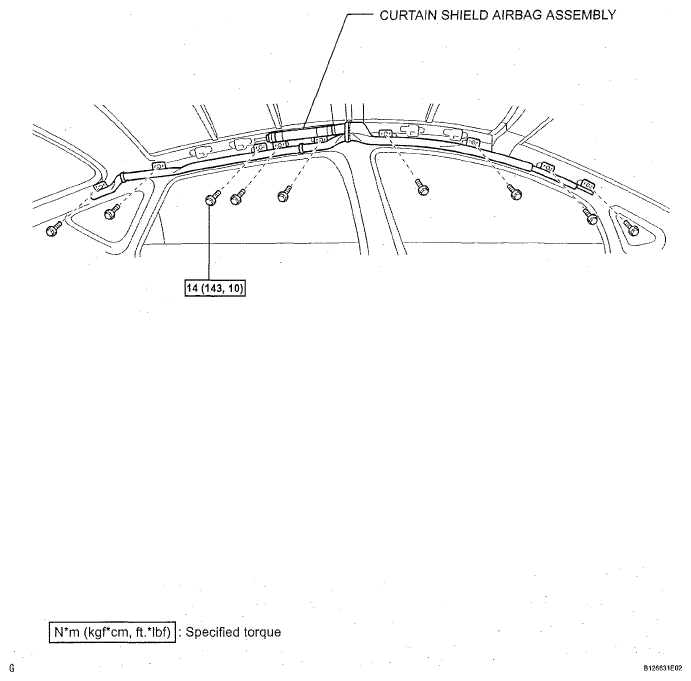

Fig 1: Curtain Shield Airbag Assembly Replacement Components With Torque Specifications

G05189701

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
