Electric Inverter Compressor: Removal

REMOVE REAR NO. 2 FLOOR BOARD
REMOVE DECK FLOOR BOX REAR
REMOVE REAR NO.3 FLOOR BOARD
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE SERVICE PLUG GRIP
DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM (See REPLACEMENT )

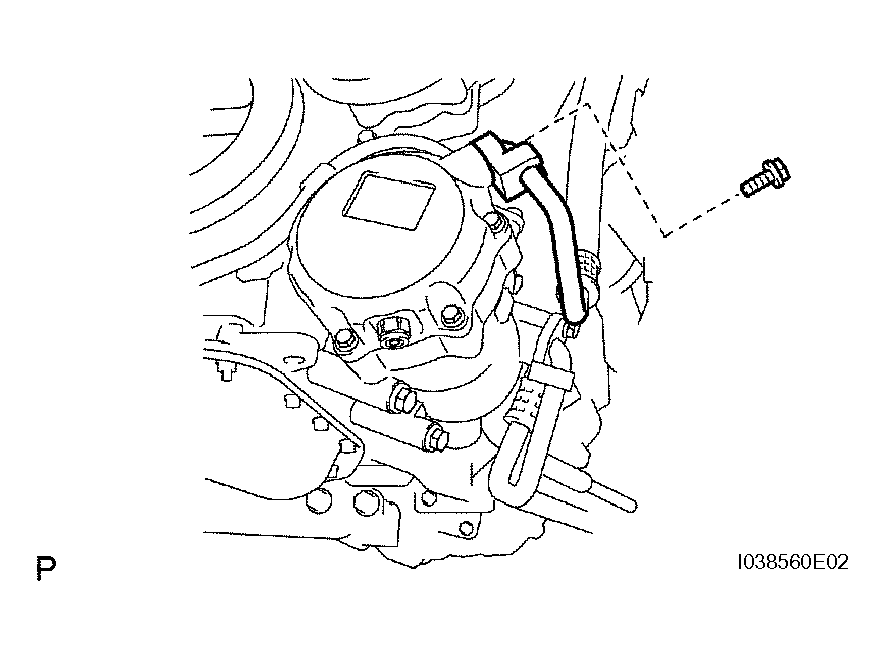

DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY
1. Remove the bolt and disconnect the discharge hose.
2. Remove the O-ring from the discharge hose.
  NOTE: Seal the openings of the disconnected parts of the discharge hose and electric inverter compressor assembly using vinyl tape to prevent moisture and foreign matter from entering them.

  Fig 1: Disconnecting Discharge Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

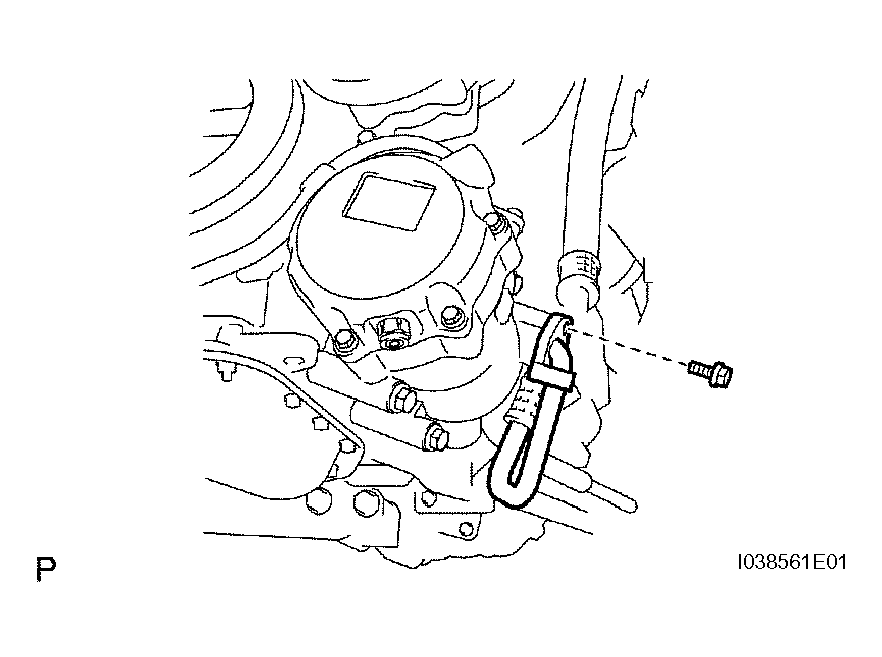

DISCONNECT SUCTION HOSE SUB-ASSEMBLY
1. Remove the bolt and disconnect the suction hose.
2. Remove the O-ring from the suction hose.
  NOTE: Seal the openings of the disconnected parts of the suction hose and electric inverter compressor assembly using vinyl tape to prevent moisture and foreign matter from entering them.

  Fig 2: Disconnecting Suction Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

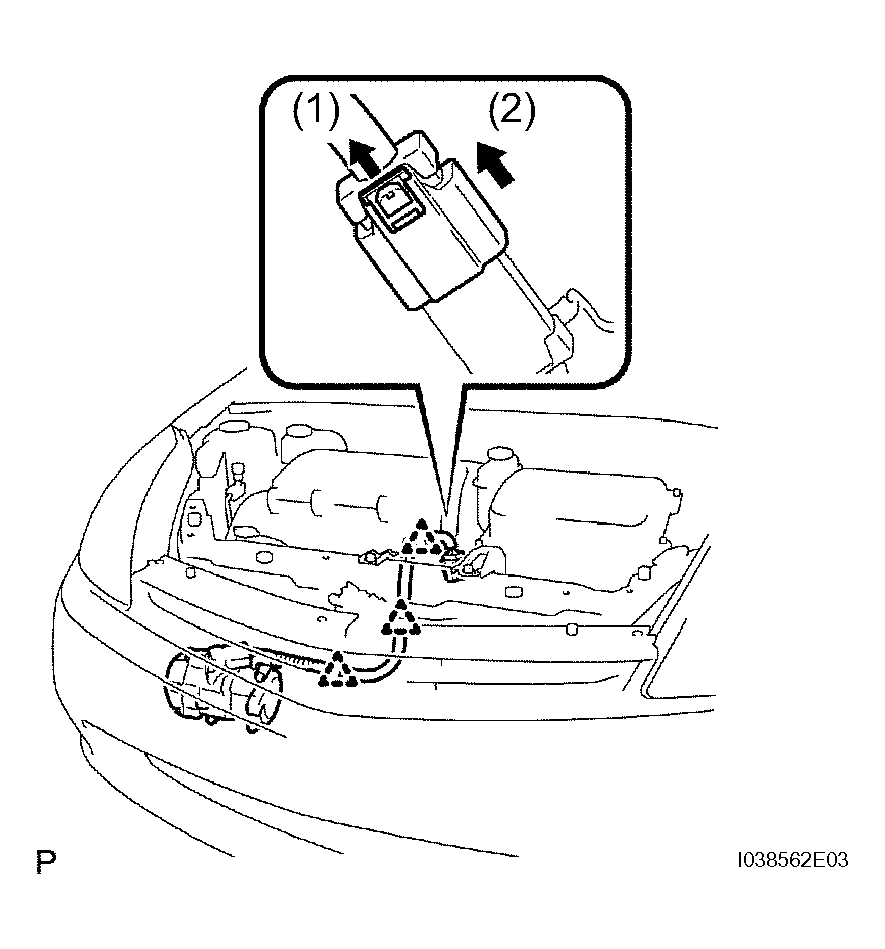

REMOVE ELECTRIC INVERTER COMPRESSOR ASSEMBLY
1. Release the green-colored lock. (1)
2. Disconnect the connector. (2)
3. Detach the 3 clamps and disconnect the wire harness.
  NOTE:
  - Wear insulated gloves when performing the procedures.
  - Insulate the connector by sealing it with tape.

    Fig 3: Disconnecting Connector
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

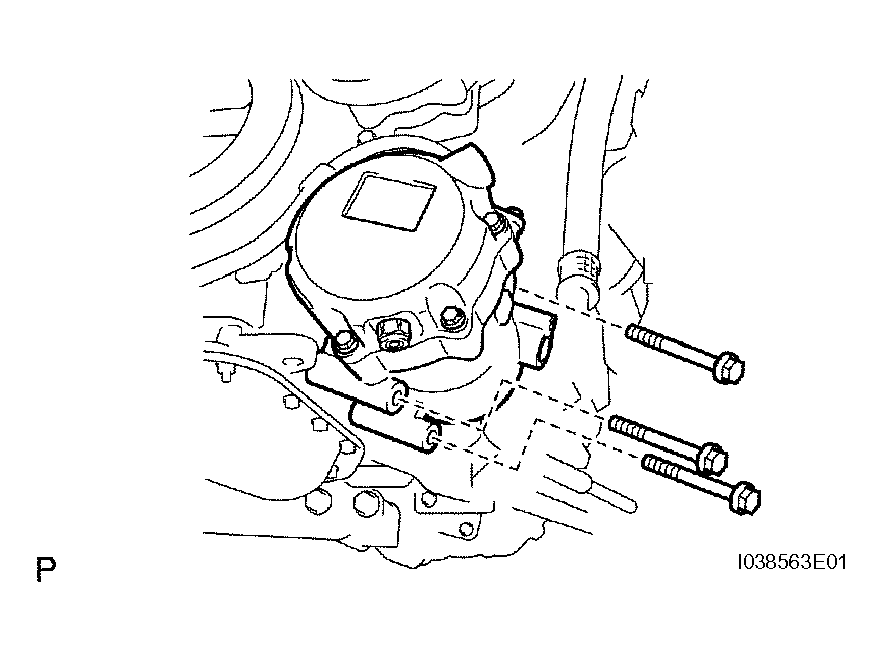

4. Remove the 3 bolts and electric inverter compressor.

  Fig 4: Removing Electric Inverter Compressor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
