Air Conditioning: Condenser: Removal

DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM (See REPLACEMENT )
REMOVE FRONT FENDER LINER LH (See REMOVAL )
REMOVE FRONT FENDER LINER RH (See REMOVAL )
REMOVE FRONT BUMPER COVER
1. Remove the front bumper cover (See REMOVAL ).
REMOVE NO. 1 INVERTER BRACKET
DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY
1. Remove the bolt and disconnect the discharge hose from the condenser (with receiver).
2. Remove the O-ring from the discharge hose.
  NOTE: Seal the openings of the disconnected parts of the discharge hose and the condenser using vinyl tape to prevent moisture and foreign matter from entering them.

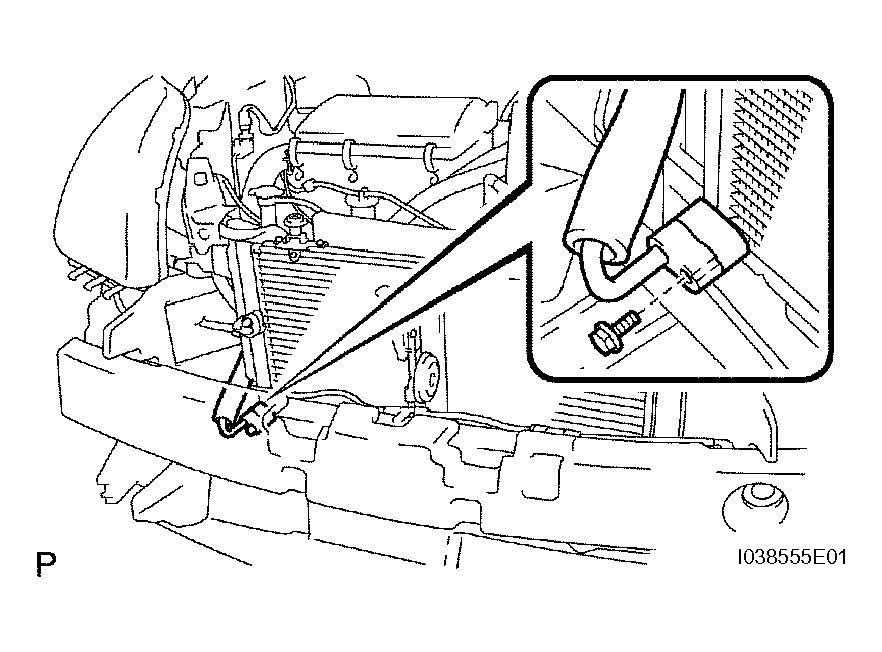

  Fig 1: Disconnecting Discharge Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT COOLER REFRIGERANT LIQUID PIPE E (TO COOLER UNIT)
1. Remove the bolt and disconnect the cooler unit refrigerant liquid pipe E from the condenser (with receiver).
2. Remove the O-ring from the cooler refrigerant liquid pipe E.
  NOTE: Seal the openings of the disconnected parts of the cooler unit refrigerant liquid pipe E and the condenser using vinyl tape to prevent moisture and foreign matter from entering them.

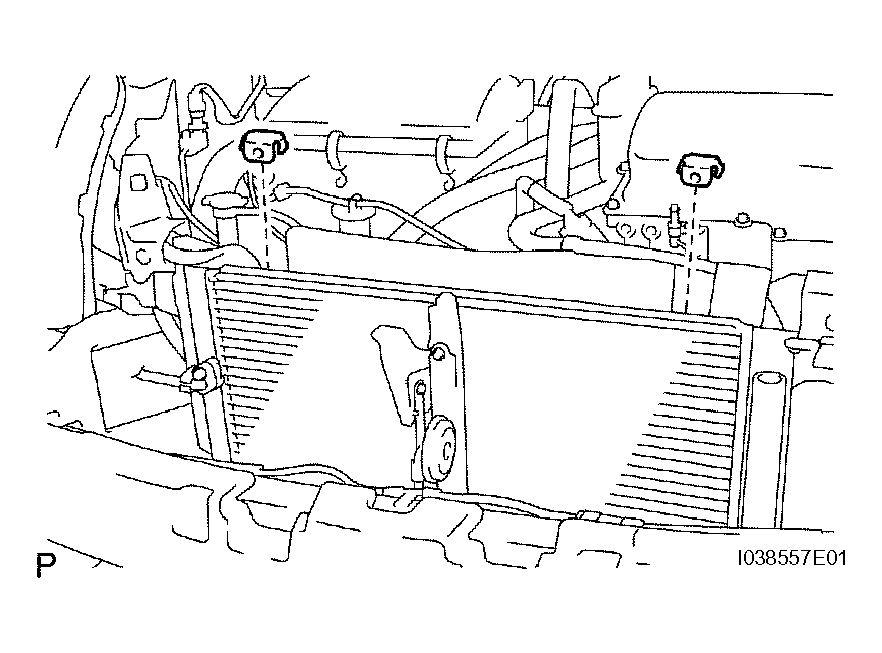

  Fig 2: Disconnecting Cooler Refrigerant Liquid Pipe E
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIATOR SUPPORT SUB-ASSEMBLY UPPER RH
1. Remove the 4 bolts and radiator support upper.

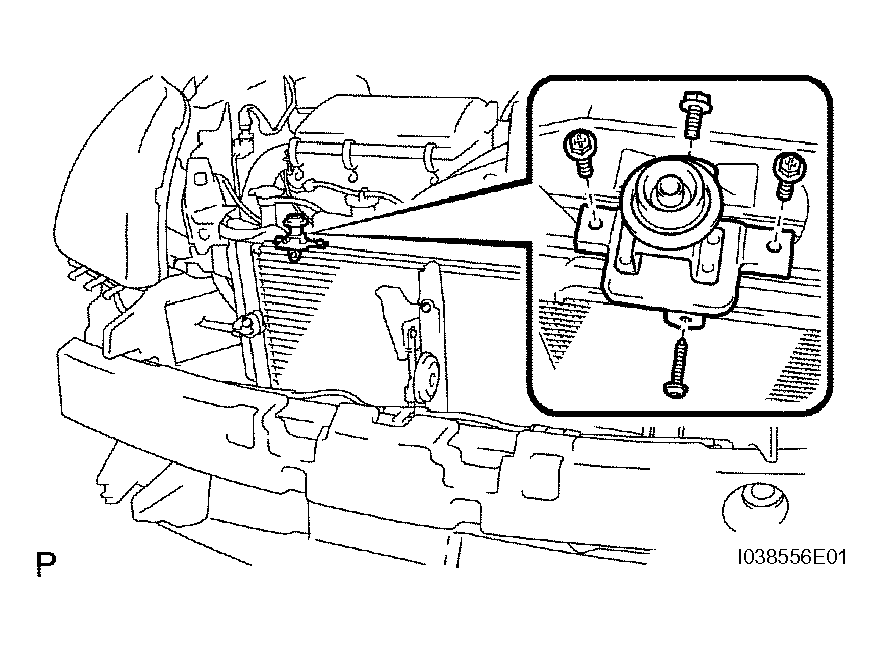

  Fig 3: Removing Radiator Support Upper RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIATOR SUPPORT SUB-ASSEMBLY UPPER LH
1. Remove the 4 bolts and radiator support upper.

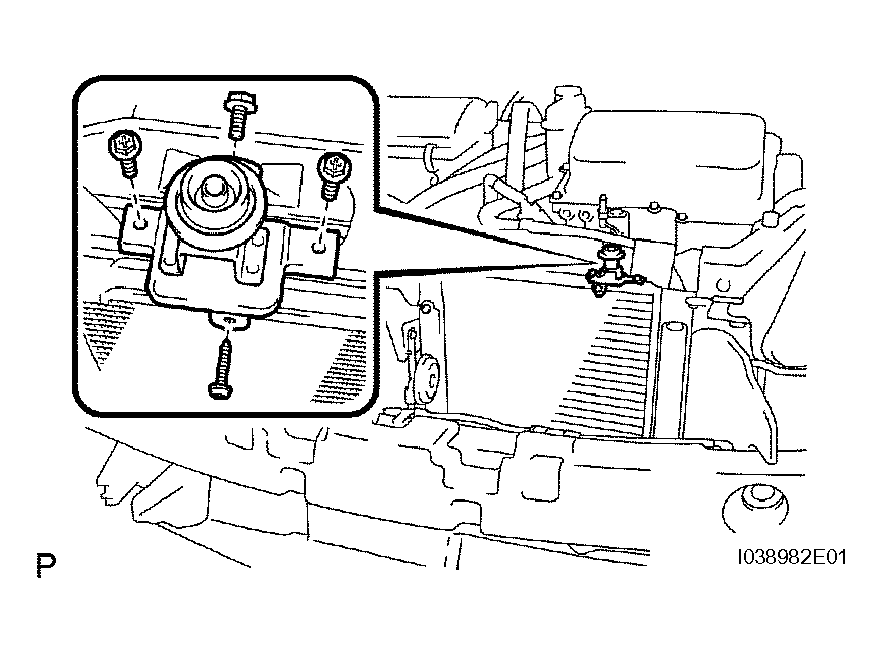

  Fig 4: Removing Radiator Support Upper LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CONDENSER ASSEMBLY WITH RECEIVER
1. Remove the 2 angles.

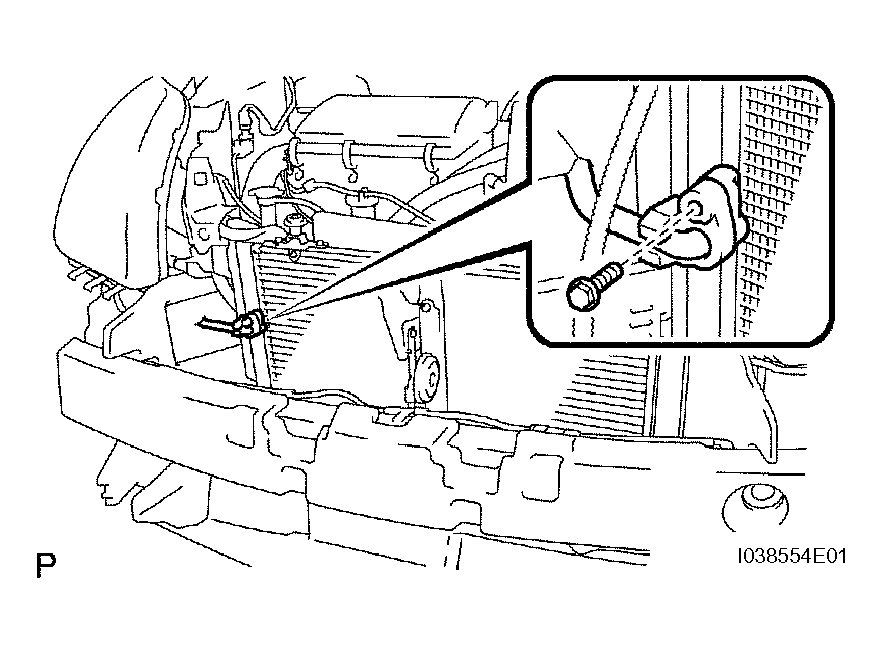

  Fig 5: Removing Angles
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts and condenser (with receiver).

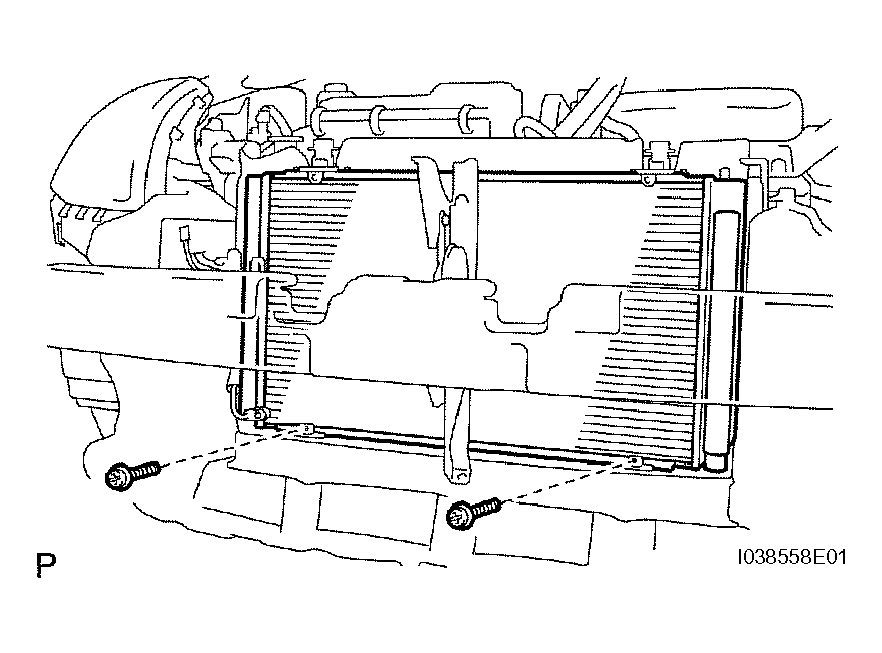

  Fig 6: Removing Condenser (With Receiver)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
