Air Conditioning Amplifier: Installation

  1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY
    1. Install the air conditioning amplifier with the 2 screws.
    2. Connect the connector.
  2. INSTALL NO. 3 AIR DUCT REAR
  3. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See  INSTALLATION  )

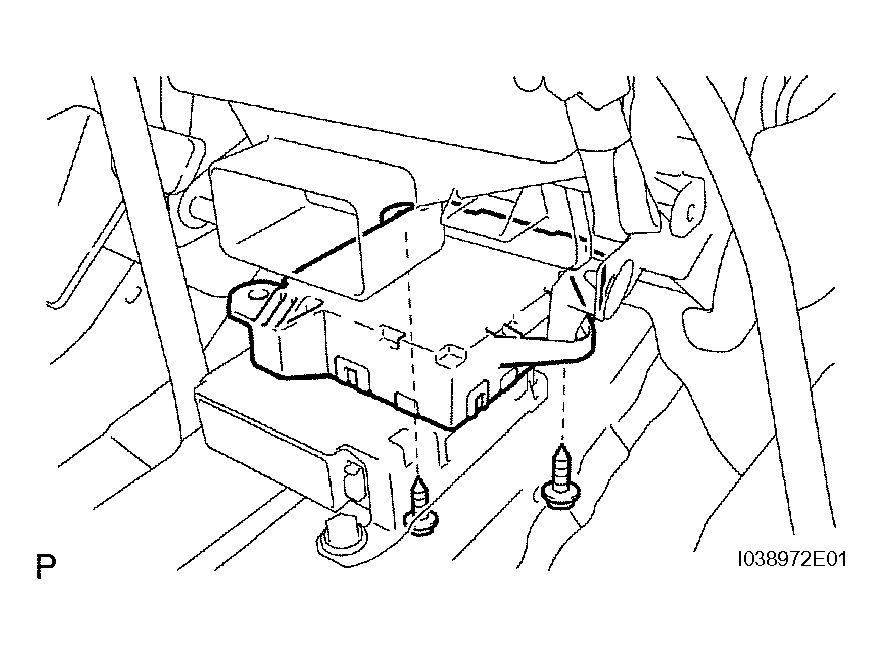

    Fig 1: Installing Air Conditioning Amplifier
    G04475244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
