DTC P0335 Crankshaft Position Sensor "A" Circuit: Wiring Diagram

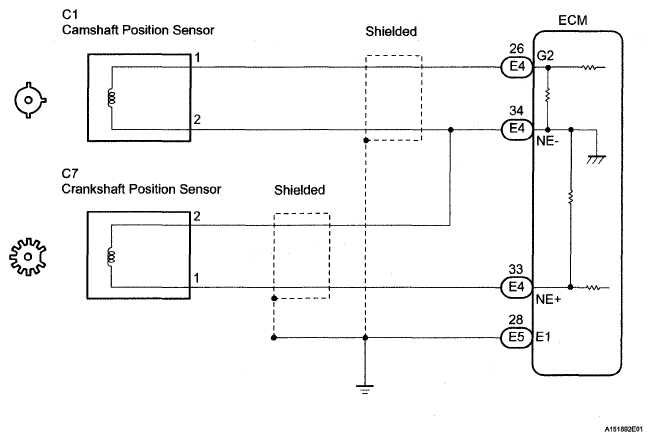

Fig 1: Camshaft Position Sensor - Wiring Diagram

G05188714

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
