Inspection Procedure

1. Delete the DTC (see DTC CHECK / CLEAR ).
2. Check for DTCs again.

   OK : No DTC is output.

OK : END

NG : GO TO NEXT STEP

1. Disconnect the P6 and H14 ECU connectors.
2. Measure the resistance of the wire harness side connectors.

   Standard resistance

   RESISTANCE TESTER CONNECTION SPECIFICATION



   Tester Connection	Specified Condition
   P6-39 (STSW) - H14-5 (ST2)	Below 1 Ω
   P6-39 (STSW) or H14-5 (ST2) - Body ground	10 kΩ or higher

NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

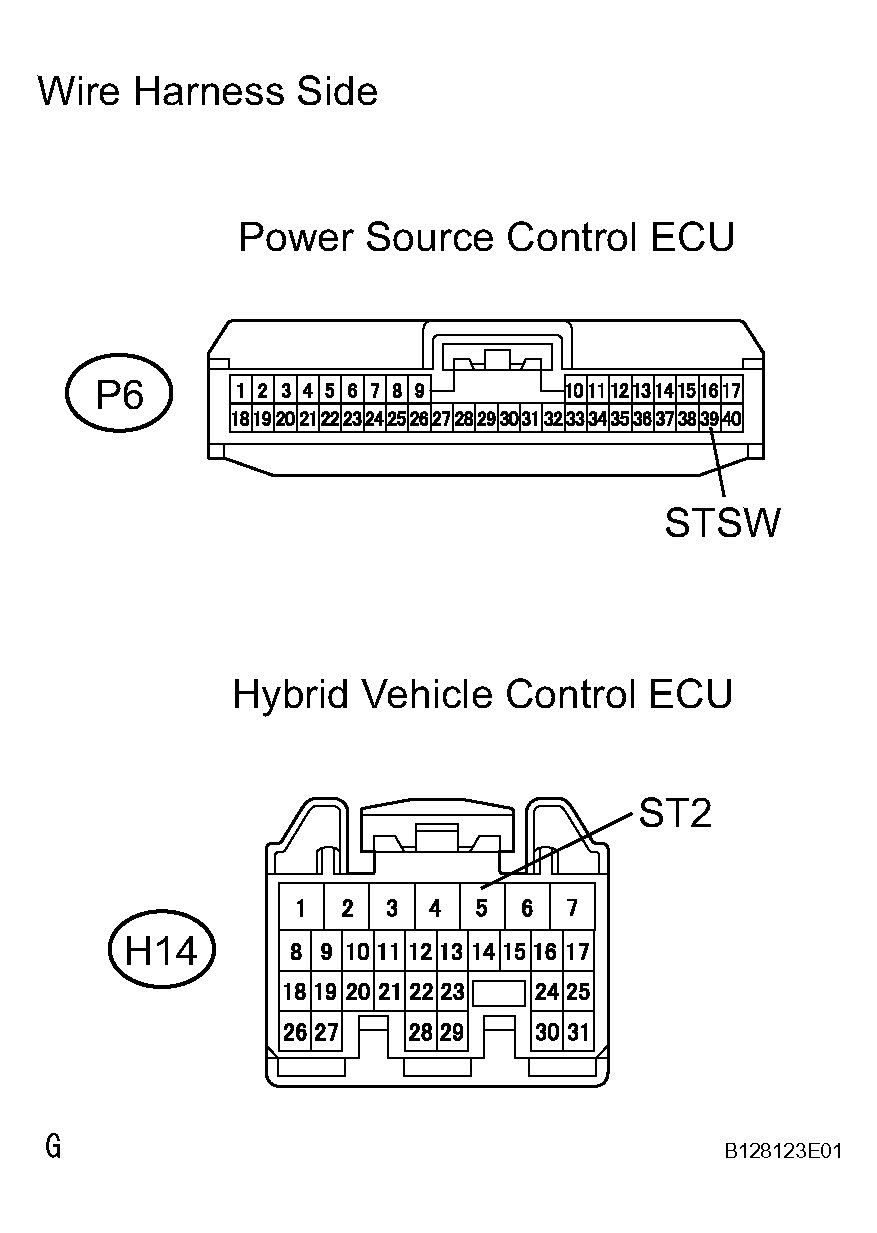

Fig 1: Identifying Power Source Control ECU & Hybrid Vehicle Control ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : GO TO NEXT STEP

1. After replacing the power source control ECU with a normally functioning ECU, check that the hybrid control system can start normally.

   OK : Hybrid control system can start normally.

NG : GO TO HYBRID CONTROL SYSTEM

OK : NORMAL (POWER SOURCE CONTROL ECU DEFECTIVE)
