Power Switch: Removal

  1. REMOVE REAR NO. 2 FLOOR BOARD (See  REMOVAL  )
  2. REMOVE REAR DECK FLOOR BOX (See  REMOVAL  )
  3. REMOVE REAR NO. 3 FLOOR BOARD (See  REMOVAL  )
  4. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  5. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY (see  REMOVAL  )
  6. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (See  REMOVAL  )
  7. REMOVE UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (See  REMOVAL  )
  8. REMOVE POWER SWITCH

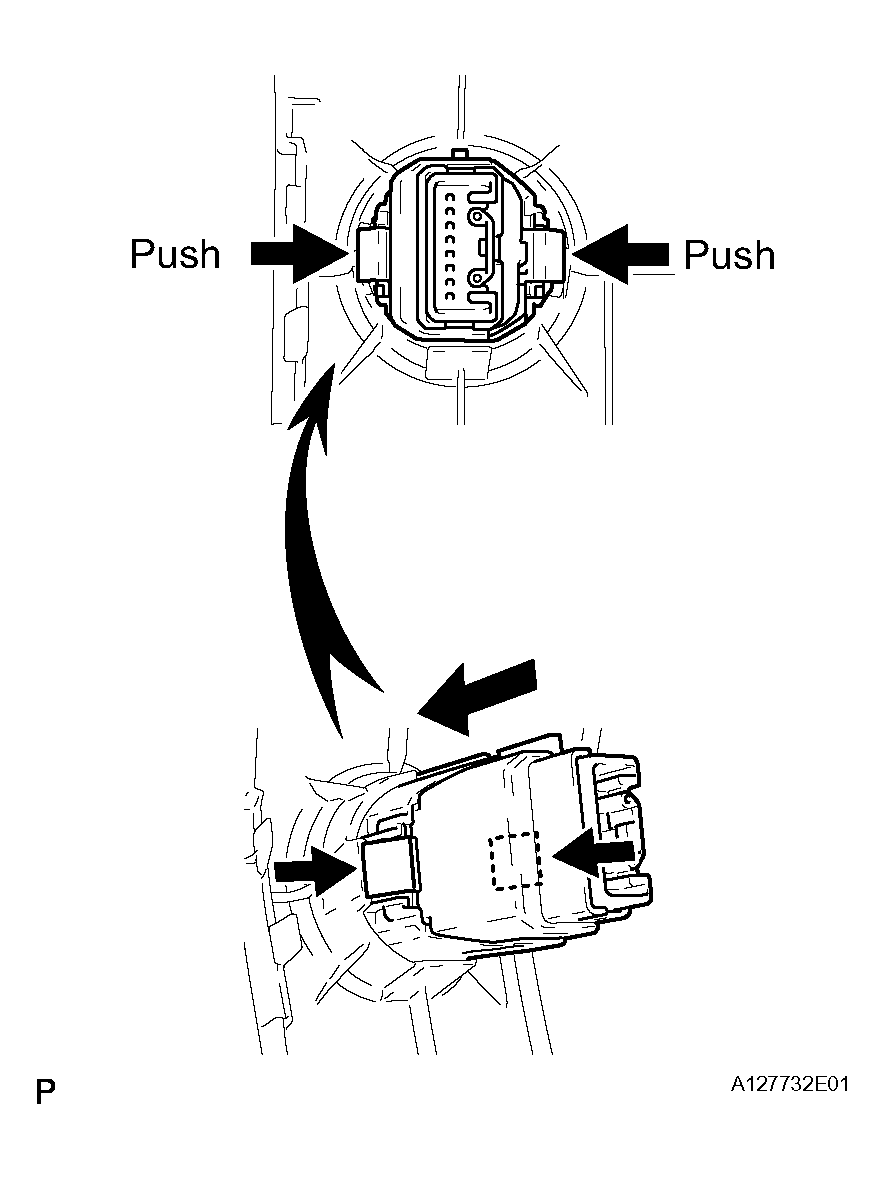

    1. Push the 2 claws and then remove the power switch.
      Fig 1: Removing Power Switch
      G04473242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
