Power Switch: Components

Fig 1: Identifying Power Switch Components (1 Of 2)
G04473239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

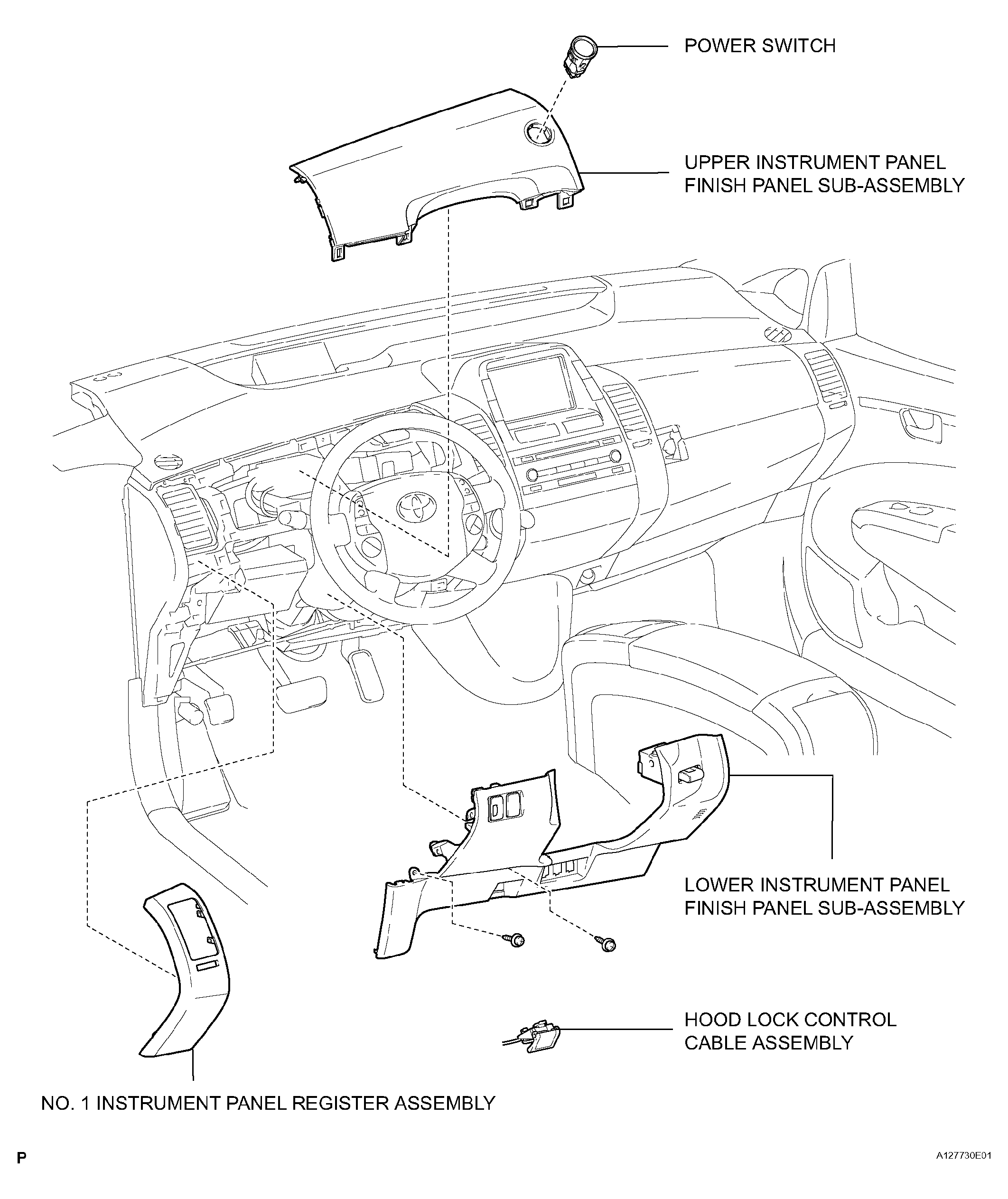

Fig 2: Identifying Power Switch Components (2 Of 2)
G04473240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
