Key Slot: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Detach the claw and 5 clips.
    2. Disconnect the connector and remove the instrument panel register.

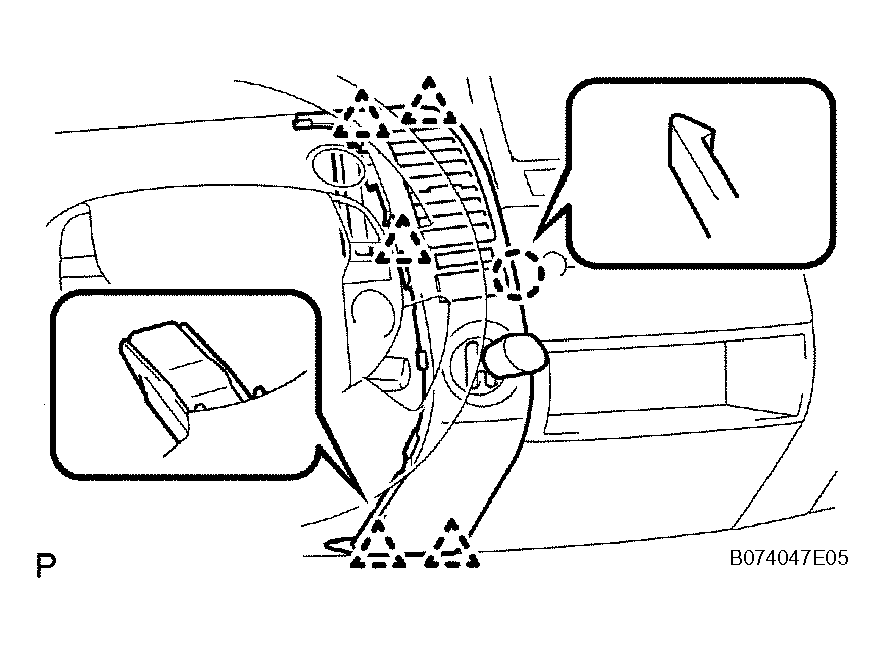

      Fig 1: Detaching Claw And Clips
      G04473245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE KEY SLOT
    1. Remove the 2 screws and key slot.
