Charging System (1NZ-FXE): Battery: Installation

INSTALL BATTERY
1. Install the battery room ventilation hose to the battery.

  Fig 1: Installing Battery Room Ventilation Hose To Battery
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the battery to the vehicle.
3. Install the grommet of the battery room ventilation hose to the vehicle.

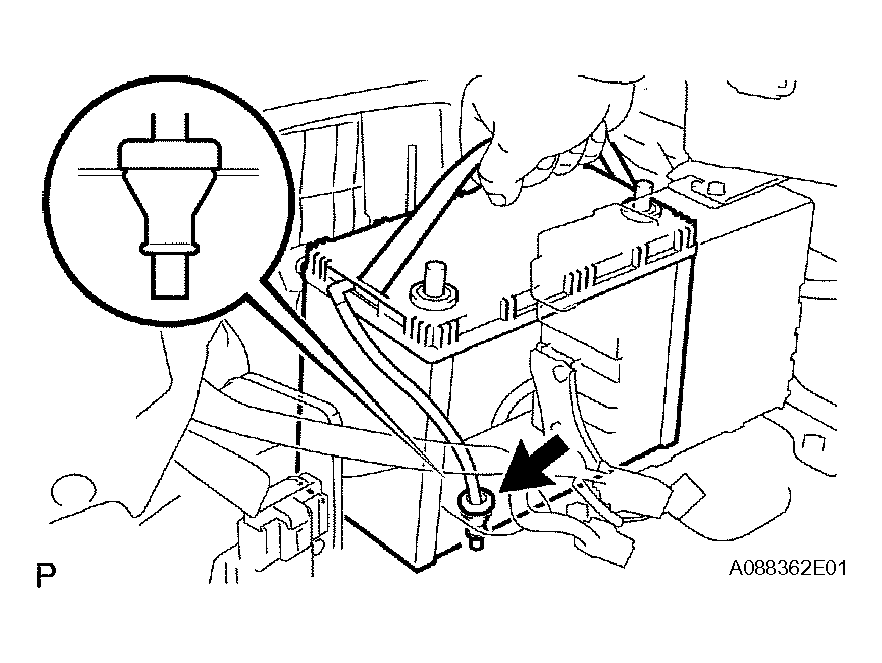

  Fig 2: Installing Grommet Of Battery Room Ventilation Hose To Vehicle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BATTERY HOLD DOWN CLAMP
1. Install the battery hold down clamp with the bolt and nut.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

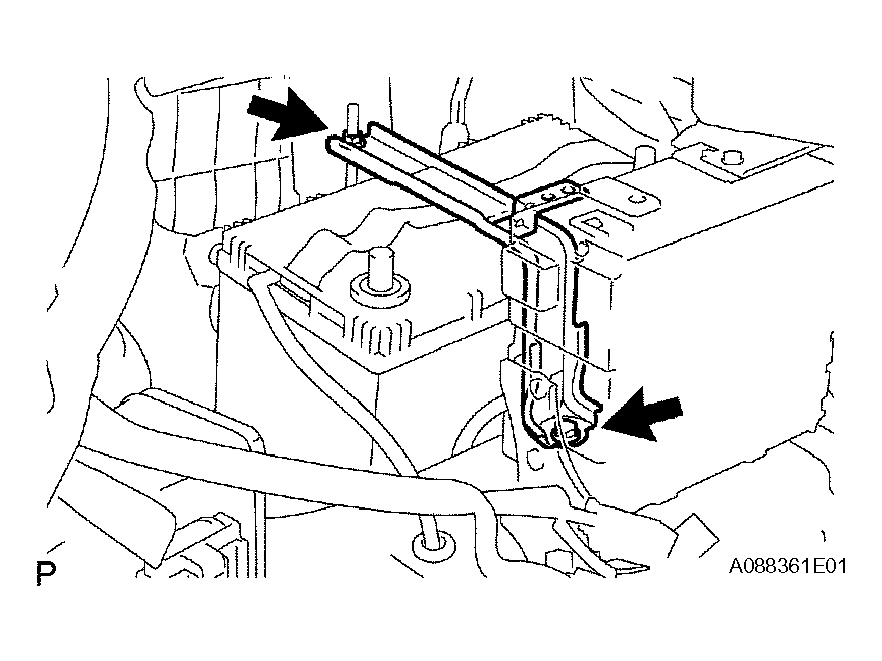

  Fig 3: Installing Battery Hold Down Clamp With Bolt And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUSIBLE LINK BLOCK ASSEMBLY
1. Install the fusible link block with the nut and clip, and then tighten the nut.
  Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

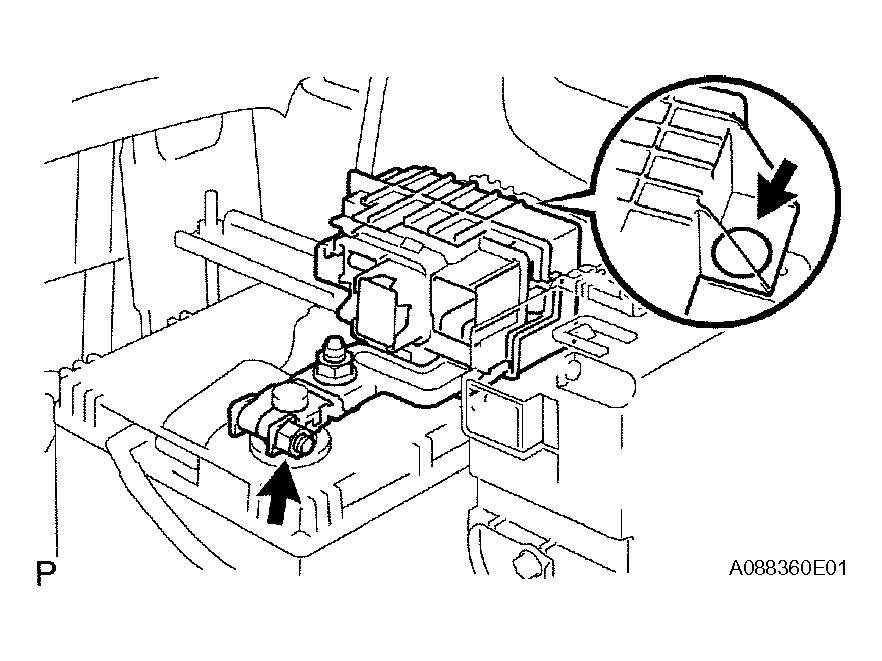

  Fig 4: Installing Fusible Link Block With Nut And Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 QUARTER VENT DUCT
1. Install the quarter vent duct with the bolt and screw.
  Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

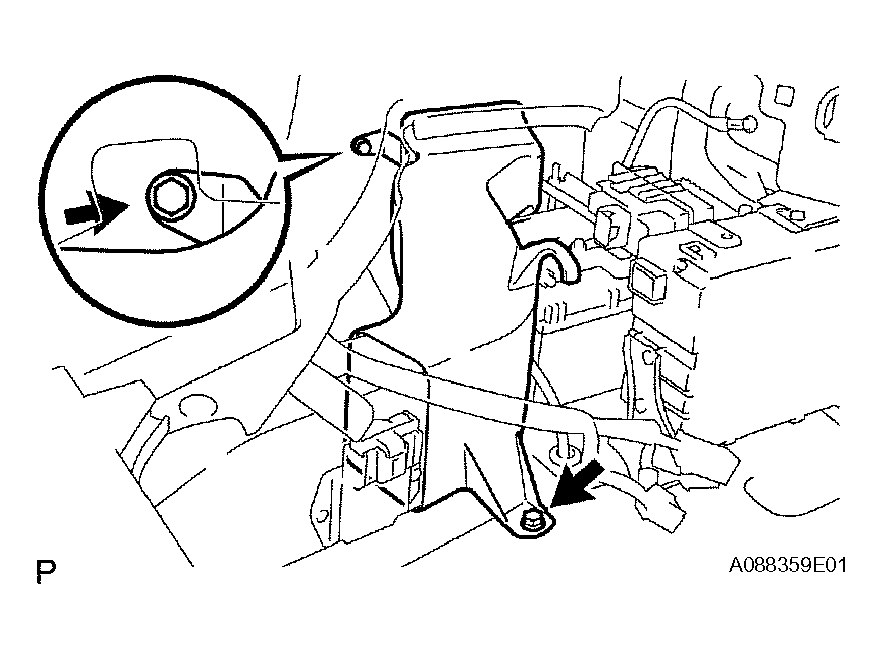

  Fig 5: Installing Quarter Vent Duct With Bolt And Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the wire harness to the quarter vent duct.
3. Connect the 2 fusible link connectors.
4. Connect the brake control power supply connector.

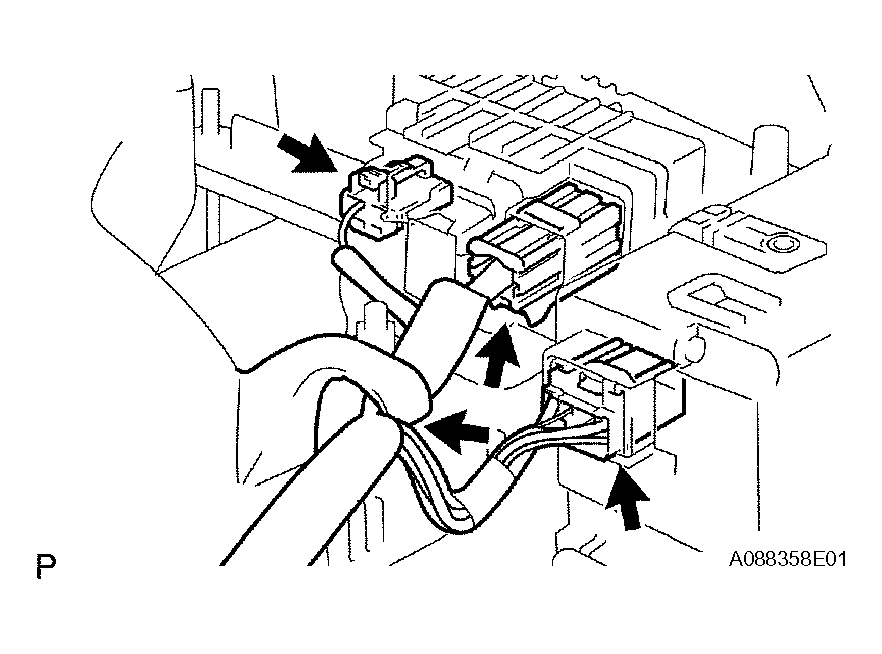

  Fig 6: Connecting Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONNECTOR COVER
1. Install the connector cover, and then attach the 3 claws.

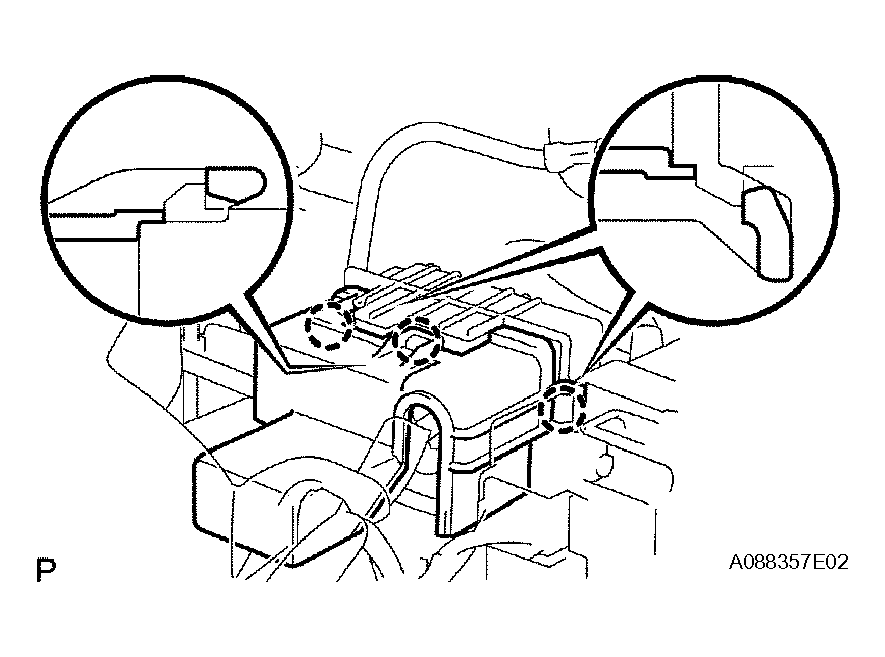

  Fig 7: Installing Connector Cover And Attaching Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT BATTERY NEGATIVE CABLE
NOTE:
- When the warning light is illuminated or the battery has been disconnected and reconnected, turning the power switch may not start the system on the first try. If so, turn the power switch again.
- With the power switch's power mode changed to ON (IG), disconnect the battery. If the key is not in the key slot during reconnection, DTC B2799 may be output.
1. Connect the battery negative cable, and then tighten the nut.
  Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

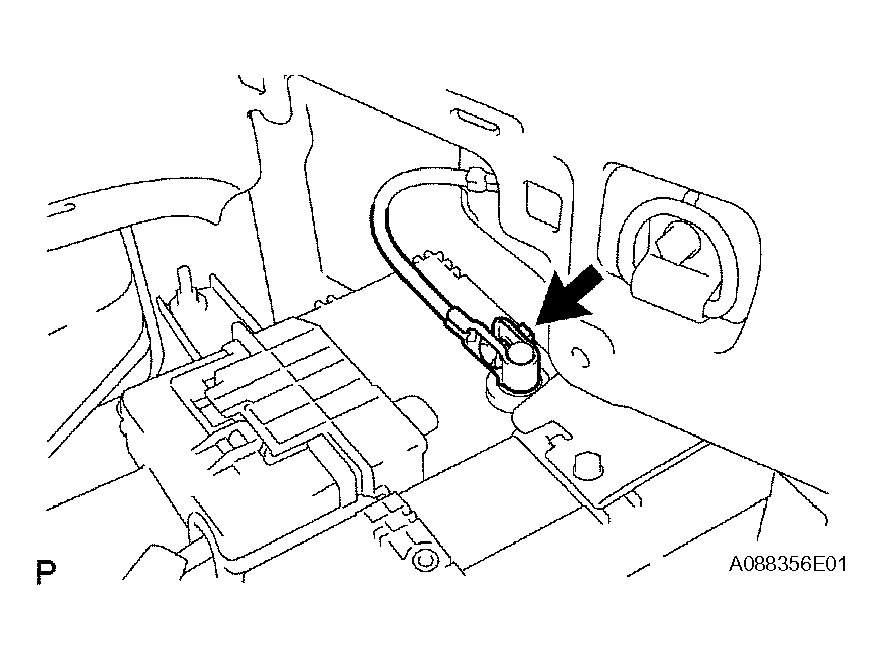

  Fig 8: Connecting Battery Negative Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR NO. 3 FLOOR BOARD
1. Install the floor board, and then attach the 4 claws.

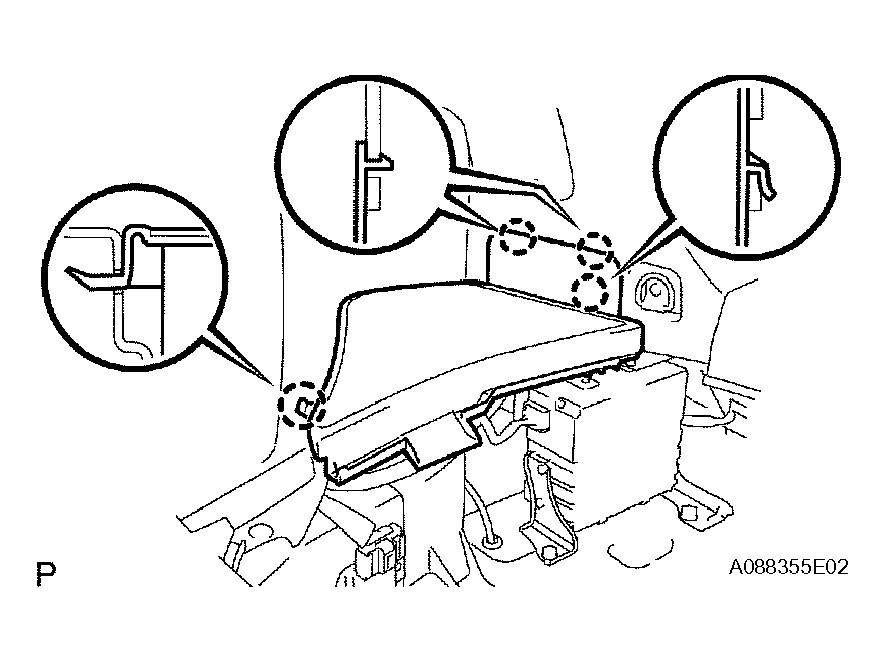

  Fig 9: Installing Floor Board And Attaching Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR DECK FLOOR BOX
1. Install the rear deck floor box to the vehicle.

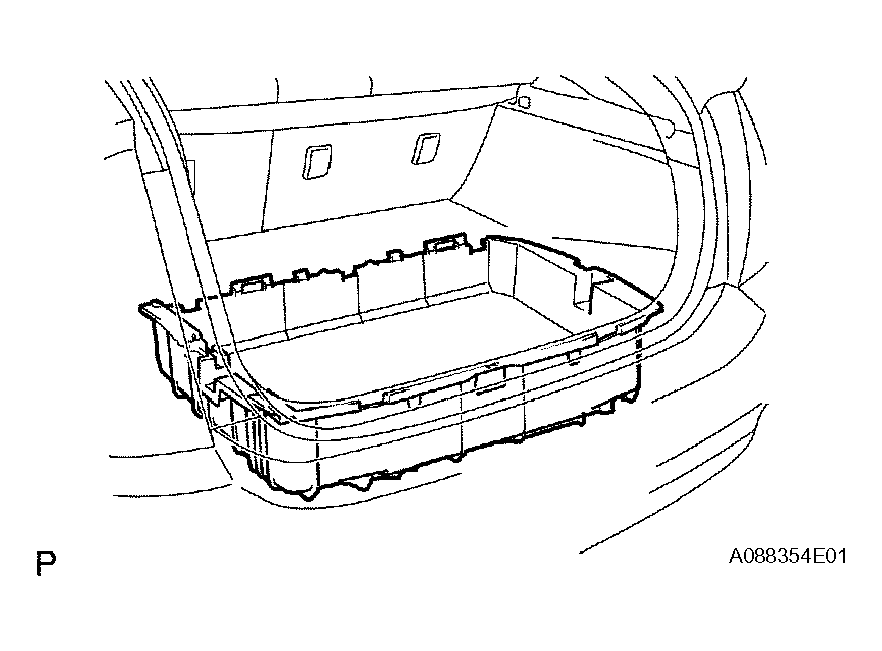

  Fig 10: Installing Rear Deck Floor Box
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR NO. 2 FLOOR BOARD
1. Install the floor board, and then lock the 2 cover knobs.

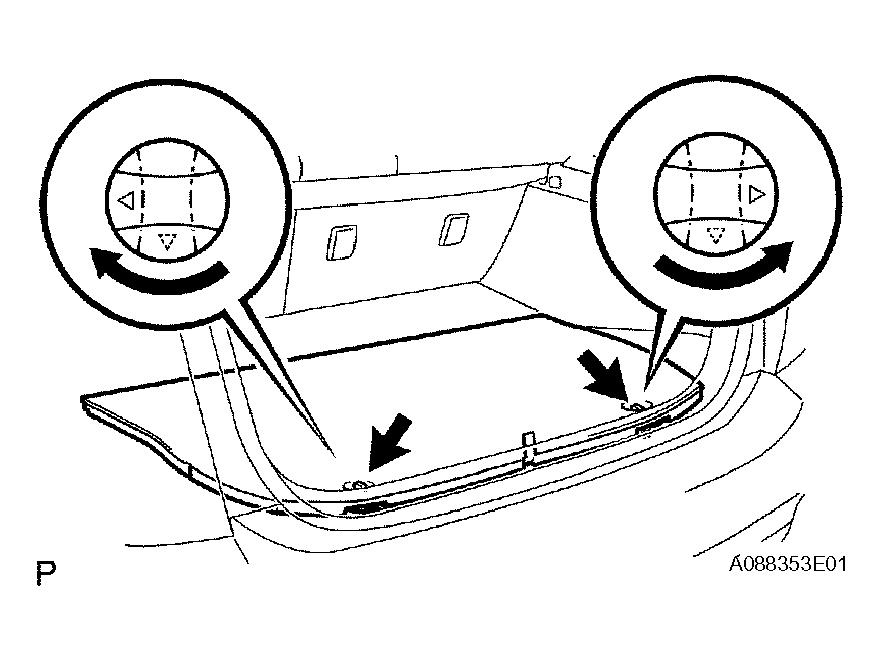

  Fig 11: Installing Floor Board And Locking Cover Knobs
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
