Charging System (1NZ-FXE): Battery: Components

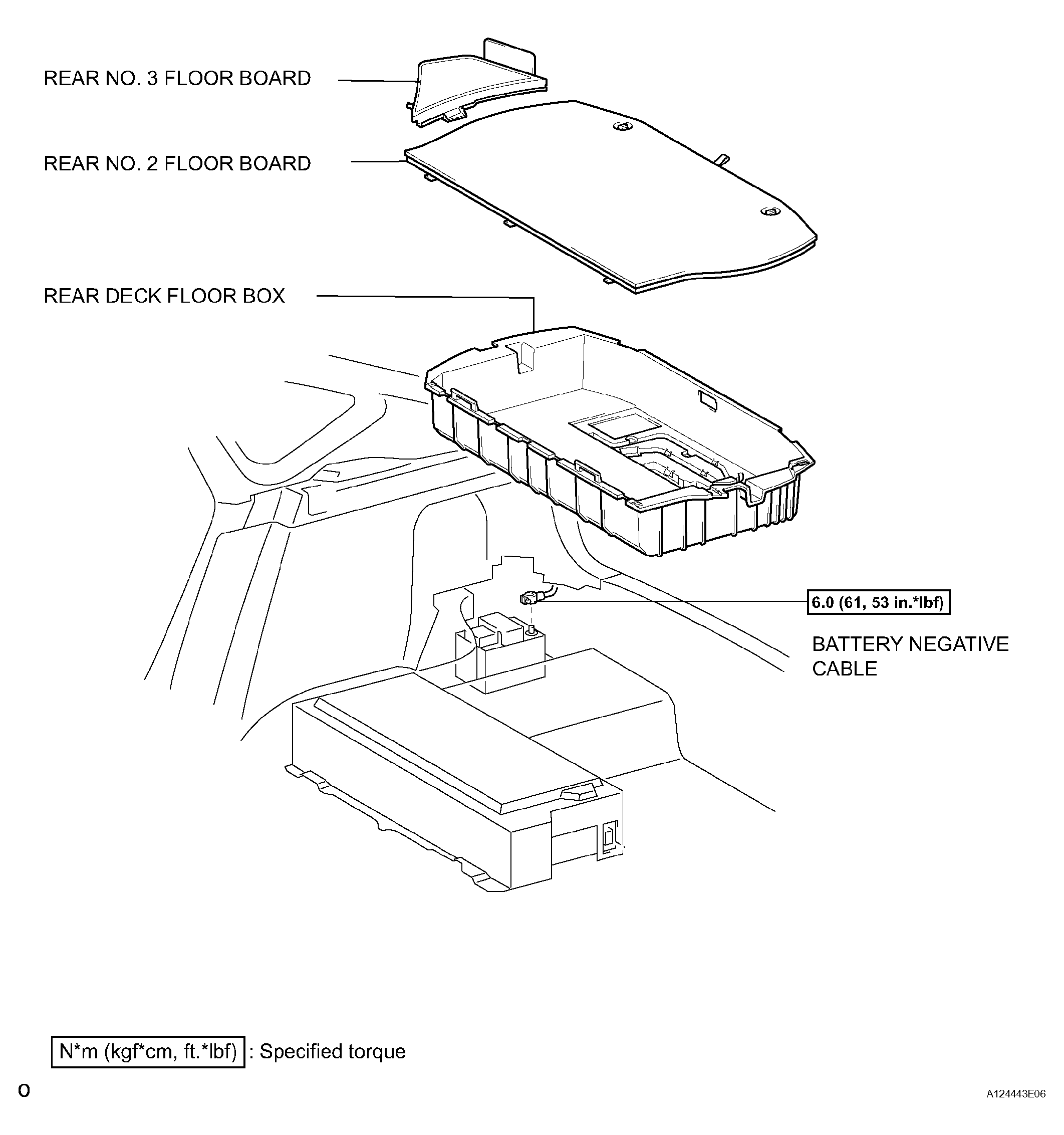

Fig 1: Battery Replacement Components -- With Torque Specifications (1 Of 2)
G04473249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

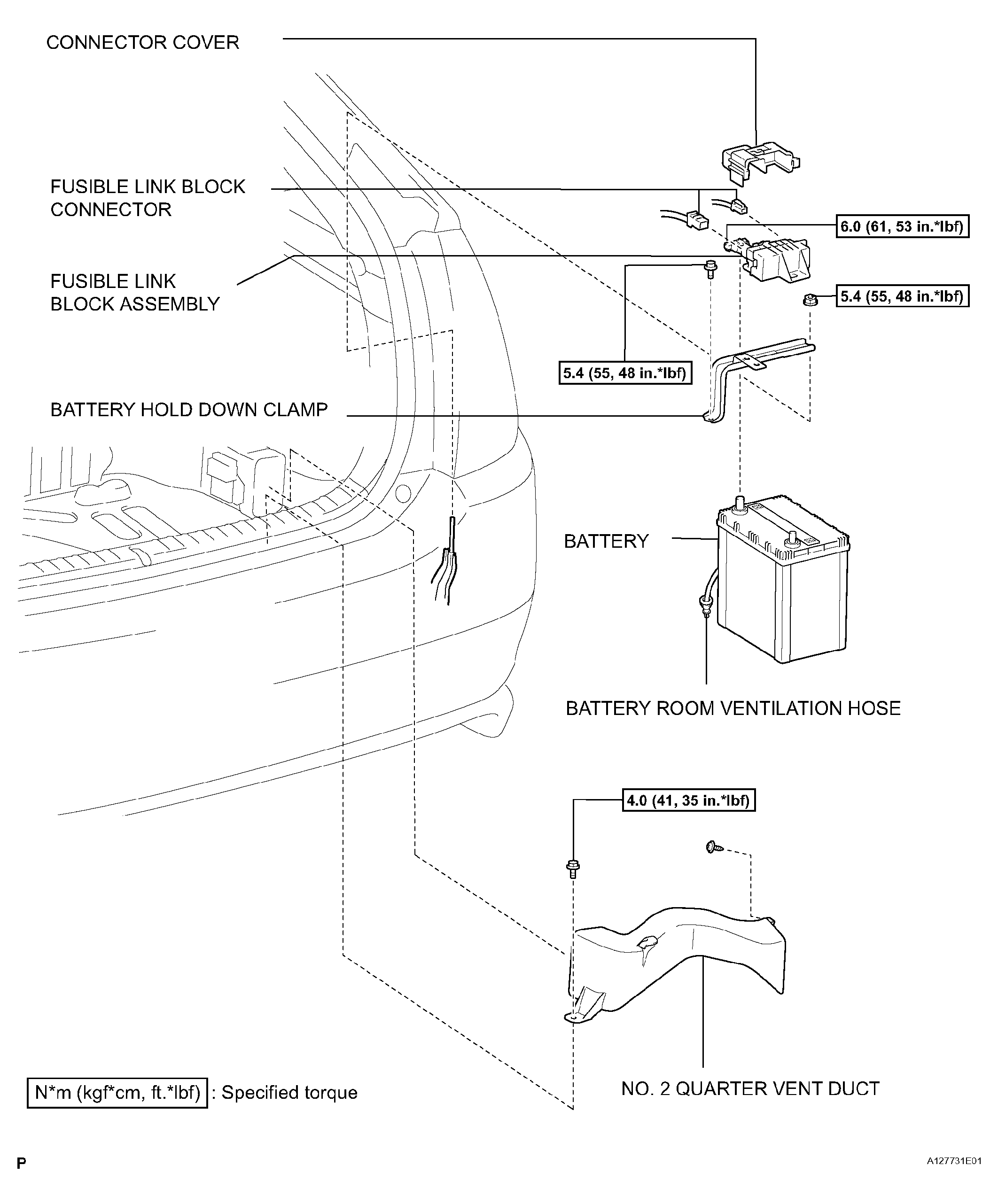

Fig 2: Battery Replacement Components -- With Torque Specifications (2 Of 2)
G04473250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
