Telltale Light: Installation

  1. INSTALL TELLTALE LIGHT ASSEMBLY
    1. Attach the 2 claws to install the telltale light.
    2. Connect the connector.
  2. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY
    1. Install the instrument panel (see REASSEMBLY ).
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  4. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  5. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).

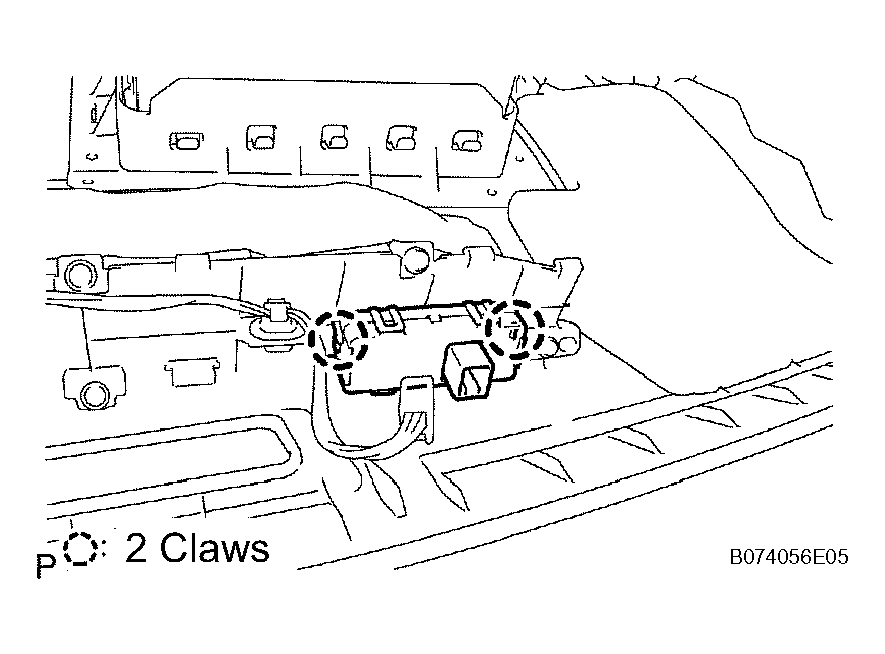

    Fig 1: Installing Telltale Light Assembly
    G04476722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
