Telltale Light: Components

Fig 1: Identifying Telltale Light Components (1 Of 3)
G04476718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Telltale Light Components (2 Of 3)
G04476719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

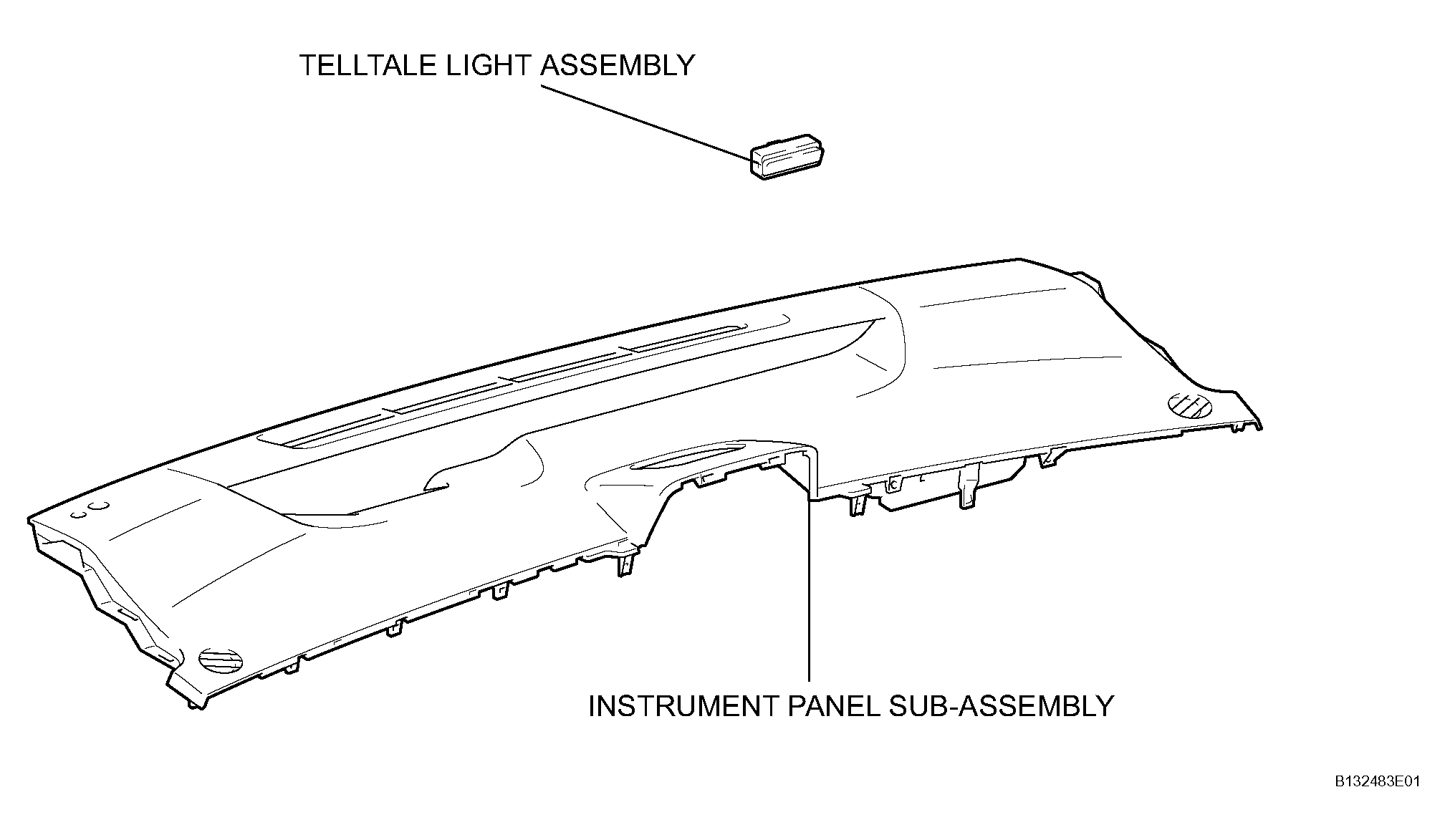

Fig 3: Identifying Telltale Light Components (3 Of 3)
G04476720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
