Brake Warning Light Circuit: Wiring Diagram

Fig 1: Brake Warning Light Wiring Diagram (1 Of 2)
G05189315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

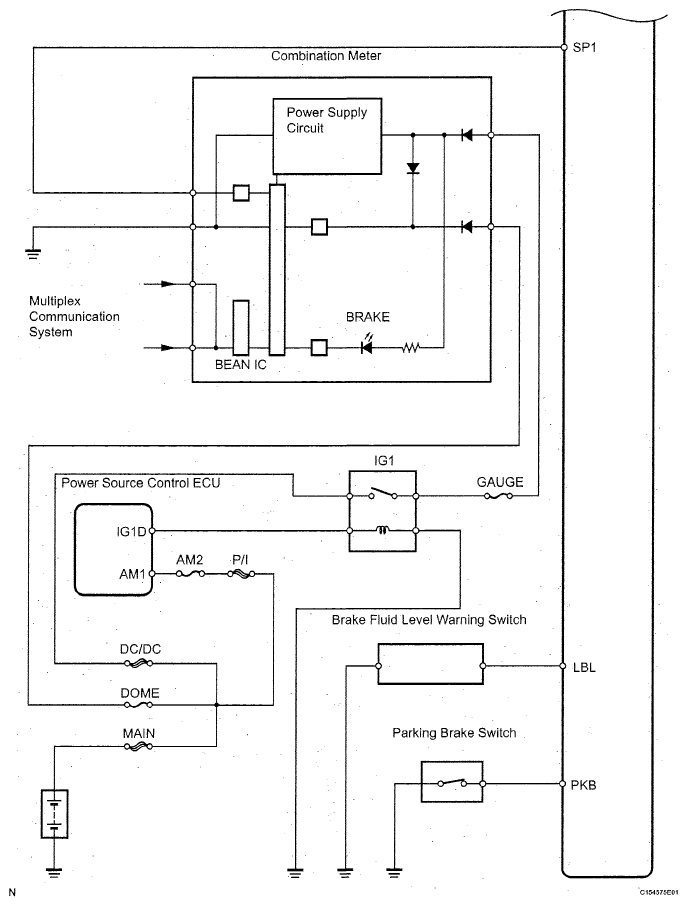

Fig 2: Brake Warning Light Wiring Diagram (2 Of 2)
G05189318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
