Remote Up / Down Function does not Operate: Wiring Diagram

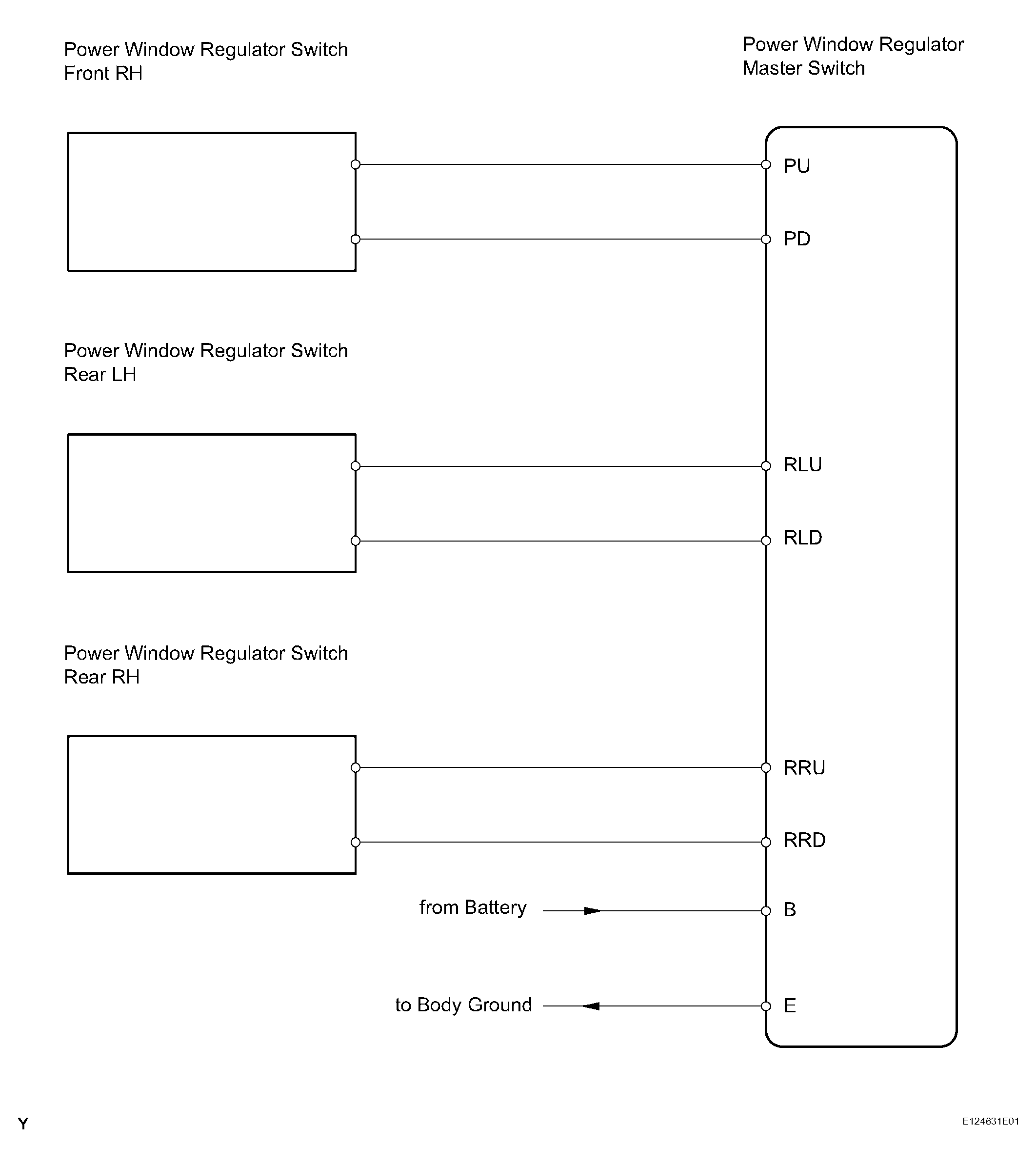

Fig 1: Remote Up/Down Function Not Operate - Wiring Diagram

G04476745

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
