Power Window can be Operated After Power Switch is Turned OFF Even if Operative Conditions are not Met: Wiring Diagram

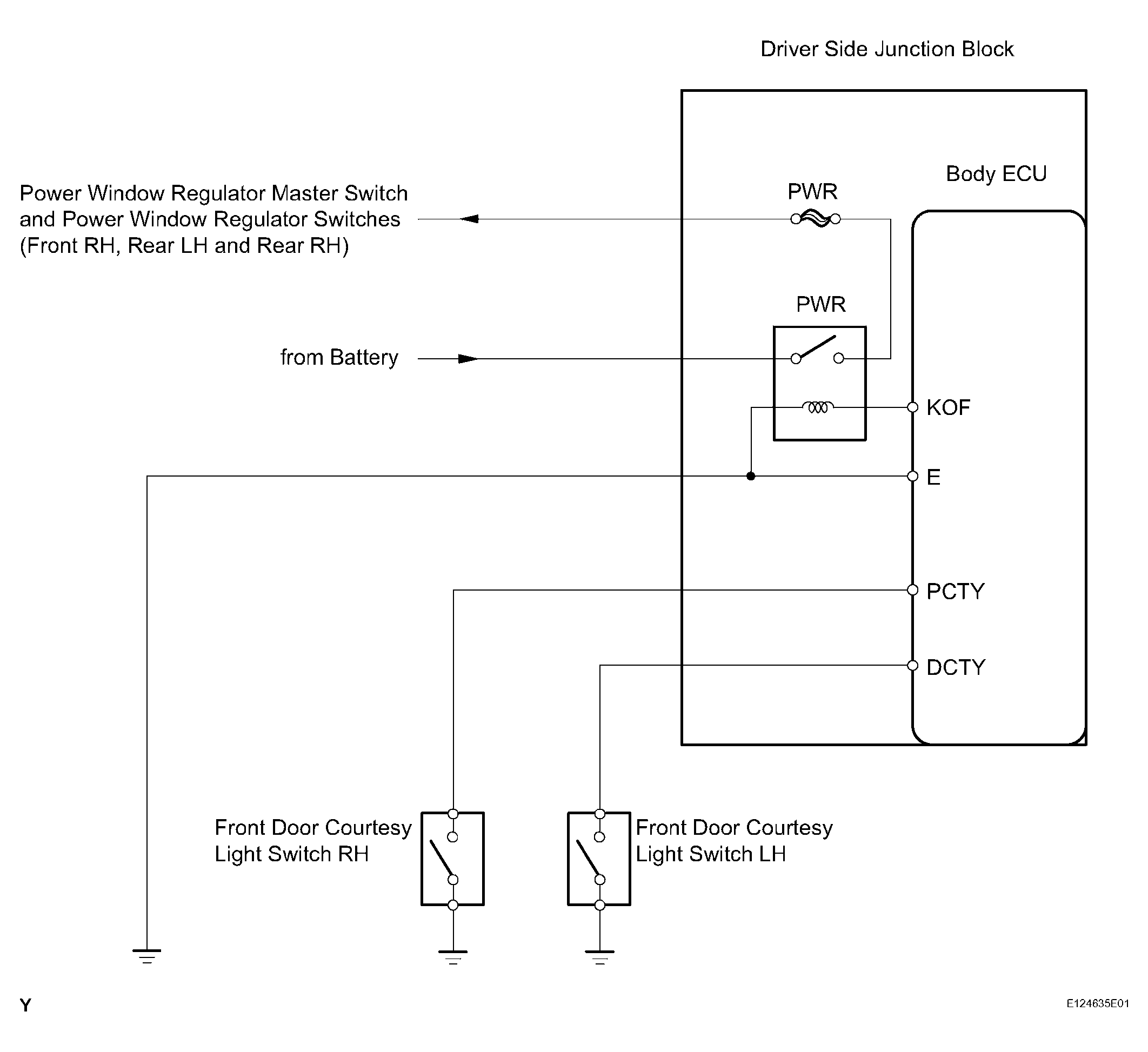

Fig 1: Power Window - Wiring Diagram
G04476764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
