Manual Up / Down Function does not Operate on Rear LH Only: Wiring Diagram

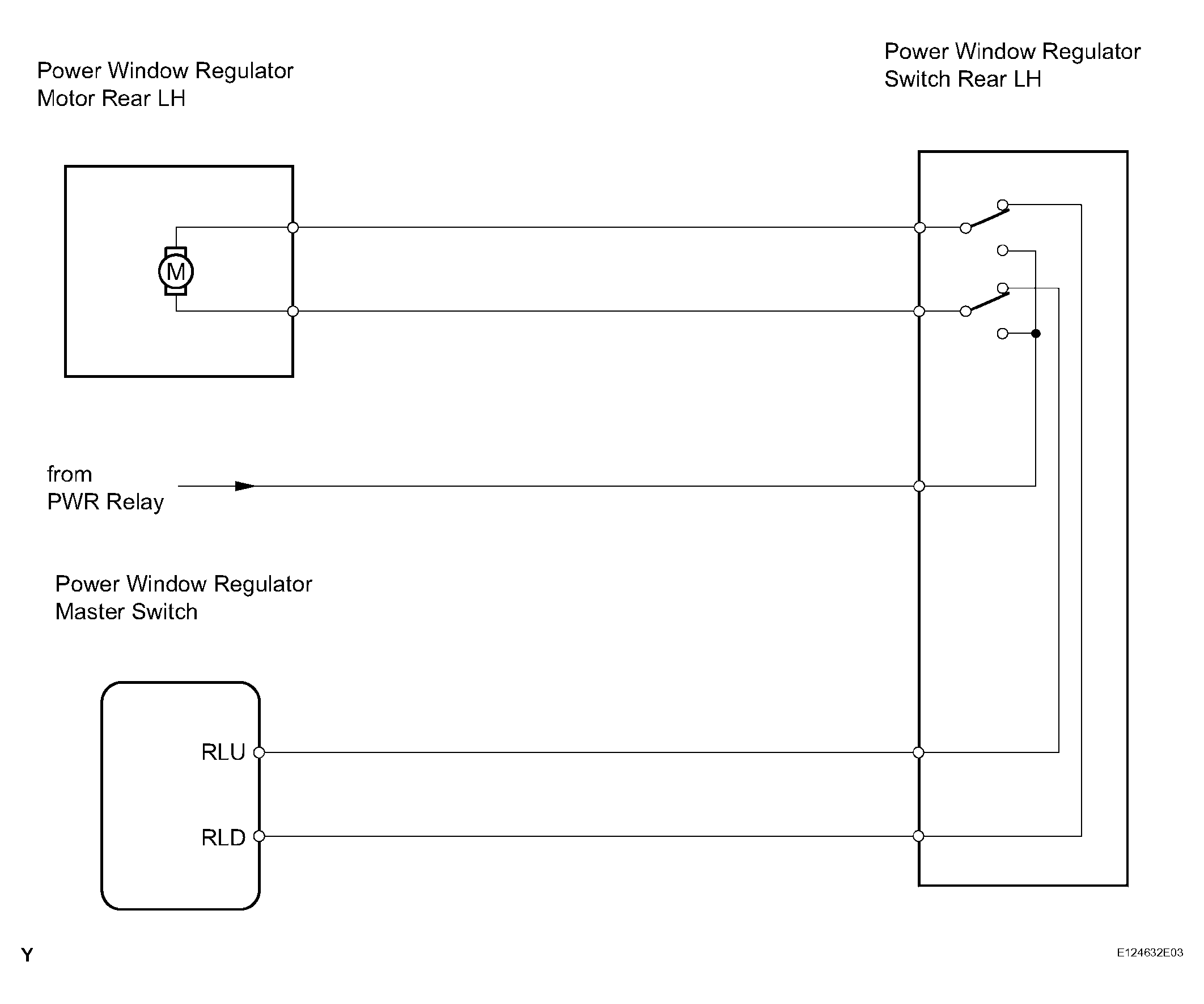

Fig 1: Manual Up/Down Function Not Operate On Rear LH Only - Wiring Diagram

G04476751

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
