Manual Up / Down Function does not Operate on Passenger Side Only: Wiring Diagram

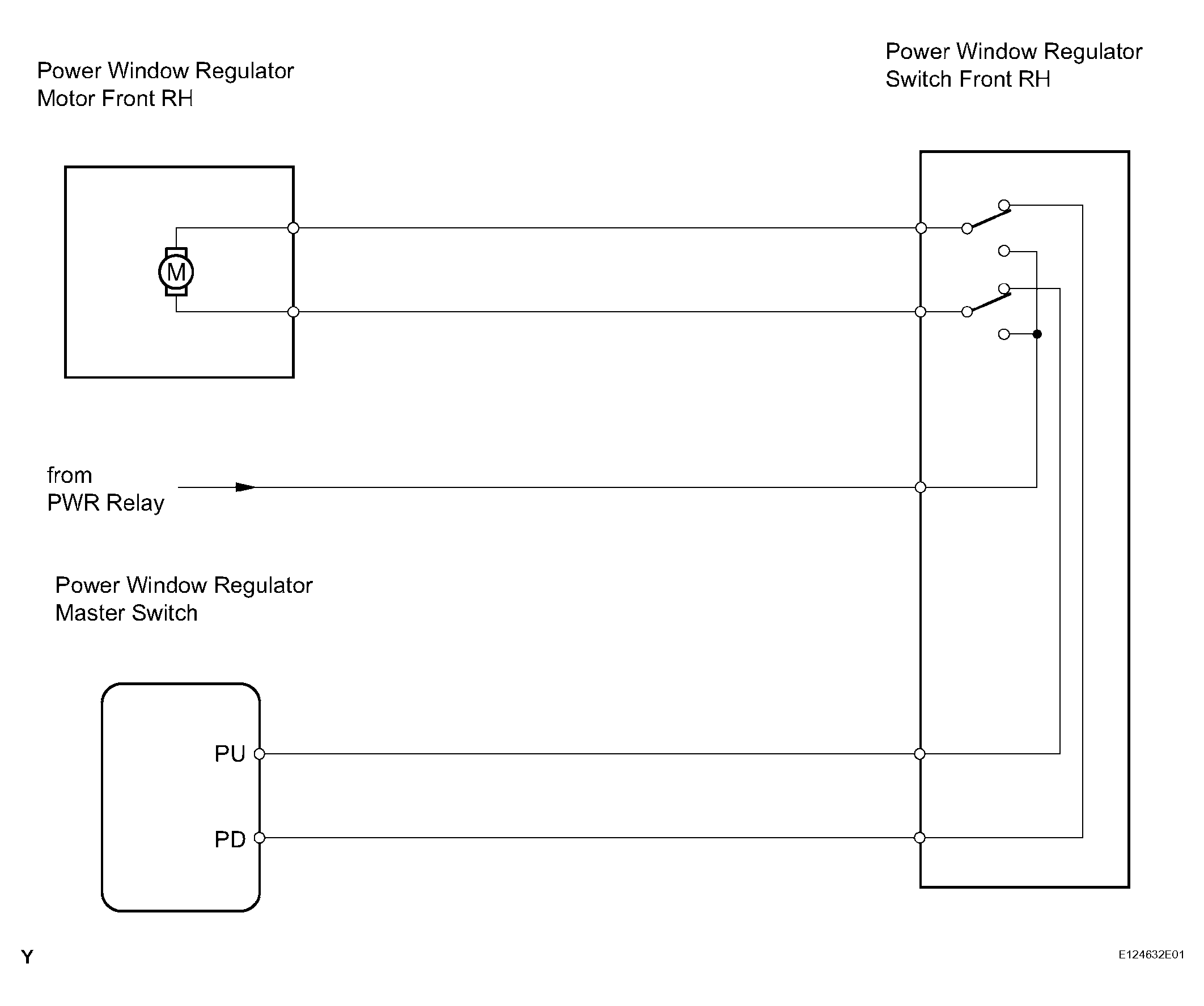

Fig 1: Manual Up/Down Function Does Not Operate On Passenger Side Only - Wiring Diagram
G04476747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
