Roof Headlining: Installation

HINT:

A bolt without a torque specification is shown in the standard bolt chart (See STANDARD BOLT ).

  1. INSTALL ROOF HEADLINING ASSEMBLY
    1. Align the markings, and then install the wire harness with tape.
      NOTE: Attach the roof wire harness securely.
      2. Fig 1: Installing Wire Harness
      G04477237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the silencer pads and headlining pad to the headlining.
    3. Install the headlining with the 3 clips.
    Fig 2: Installing Roof Headlining
    G04477238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL VISOR HOLDER
    1. Install the visor holder and turn it clockwise.
  3. INSTALL VISOR ASSEMBLY LH
    1. Connect the connector.
    2. Install the visor with the 2 screws.
    Fig 3: Installing Visor Assembly
    G04477239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL VISOR ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  5. INSTALL ASSIST GRIP SUB-ASSEMBLY
    1. Attach the 4 claws to install the assist grip.
      Fig 4: Installing Assist Grip Sub-Assembly
      G04477240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL ASSIST GRIP COVER
    1. Attach the 4 claws to install the 2 covers.
    Fig 5: Installing Assist Grip Cover
    G04477241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NO. 1 ROOM LIGHT ASSEMBLY
    1. Connect the room light connector.
    2. Attach the 4 claws to install the room light.

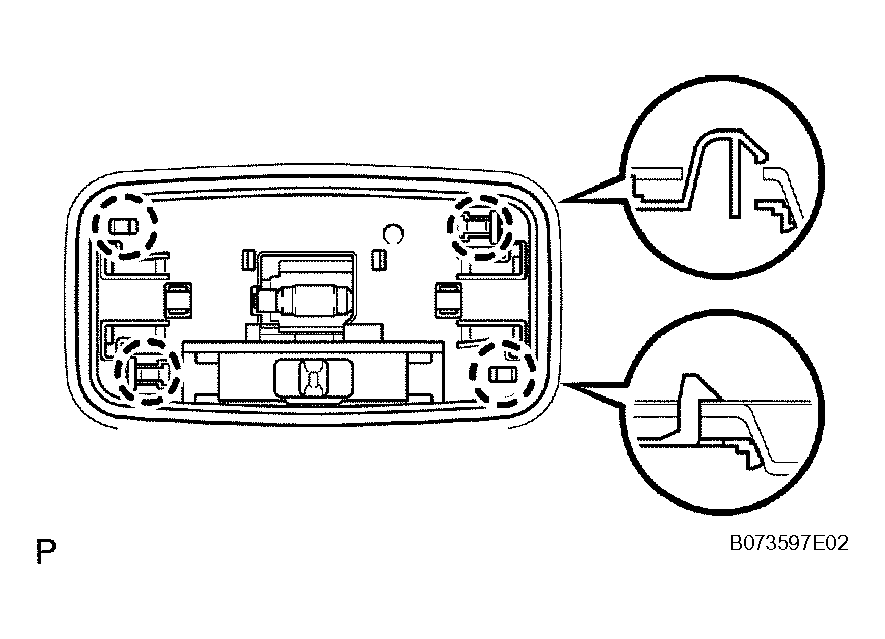

      Fig 6: Installing Room Light
      G04477242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach the 4 claws to install the room light lens.
      Fig 7: Installing Room Light Lens
      G04477243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL MAP LIGHT ASSEMBLY
    1. Connect the map light connector.
    2. Attach the 4 clips to install the map light.
    3. Install the 2 screws.

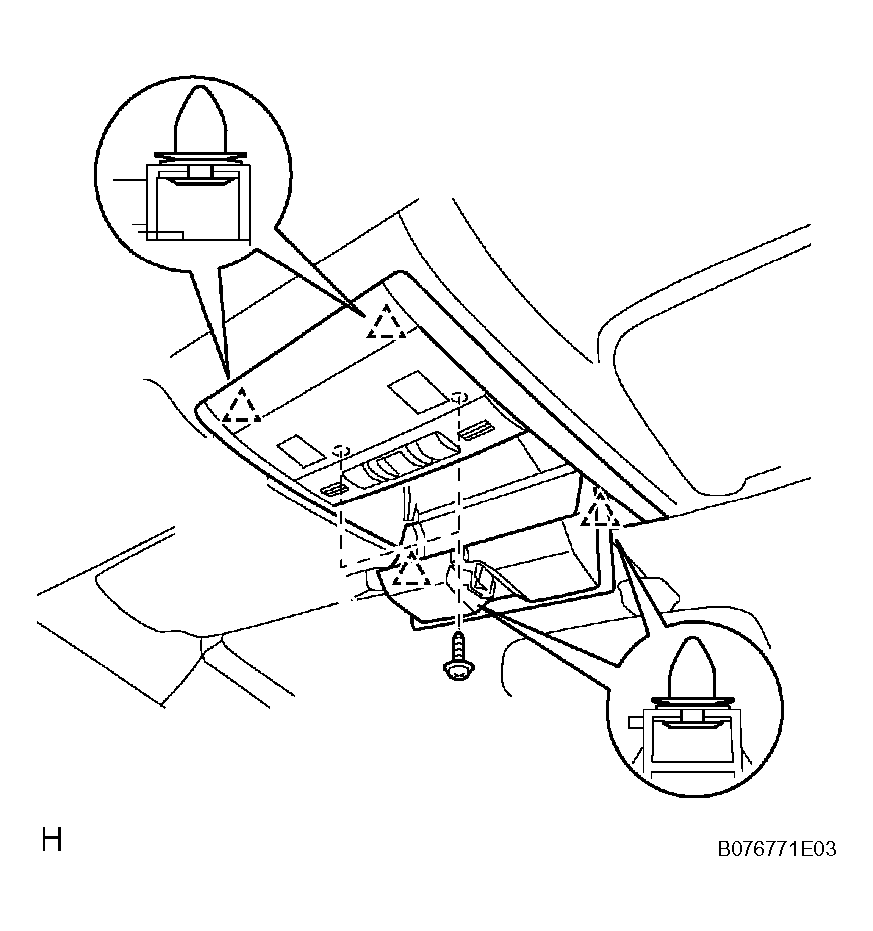

      Fig 8: Installing Map Light Assembly
      G04477244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH
    1. Attach the 6 clips and claw to install the inner garnish.

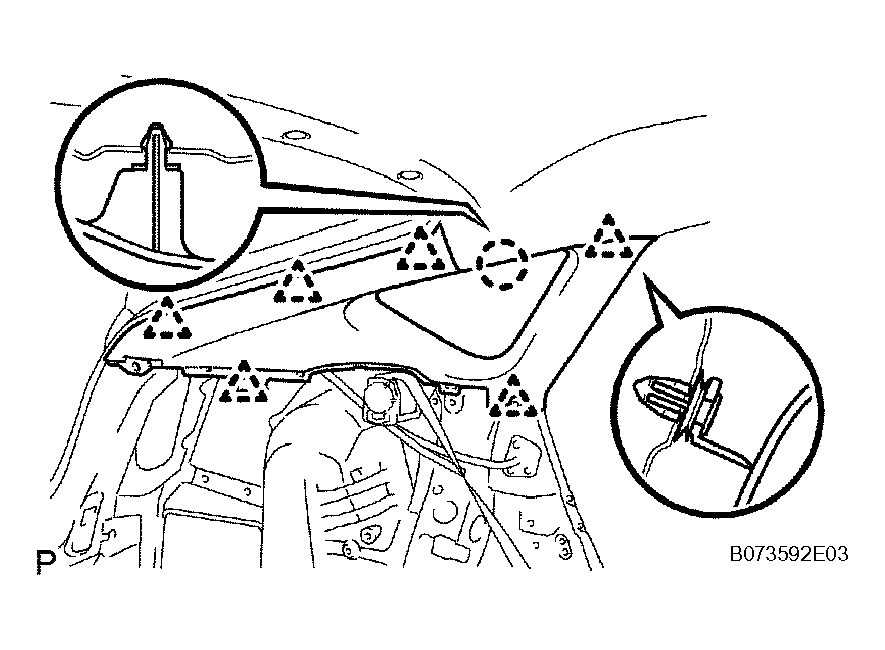

    Fig 9: Installing Roof Side Inner Garnish Assembly
    G04477245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  11. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
    1. Attach the 7 claws and 3 clips to install the side panel.
    2. Install the clip, screw and 2 bolts.

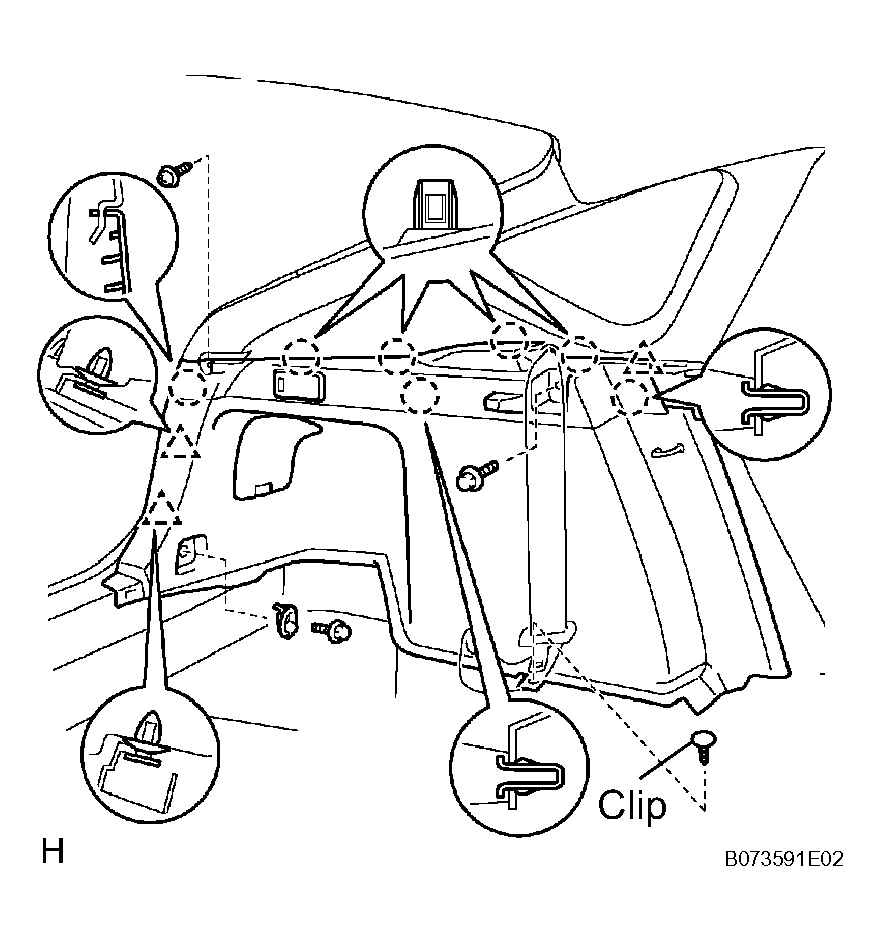

      Fig 10: Removing Deck Trim Side Panel Assembly LH
      G04477246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH
    1. Attach the 6 claws and 2 clips to install the side panel.
    2. Install the clip, screw and 2 bolts.

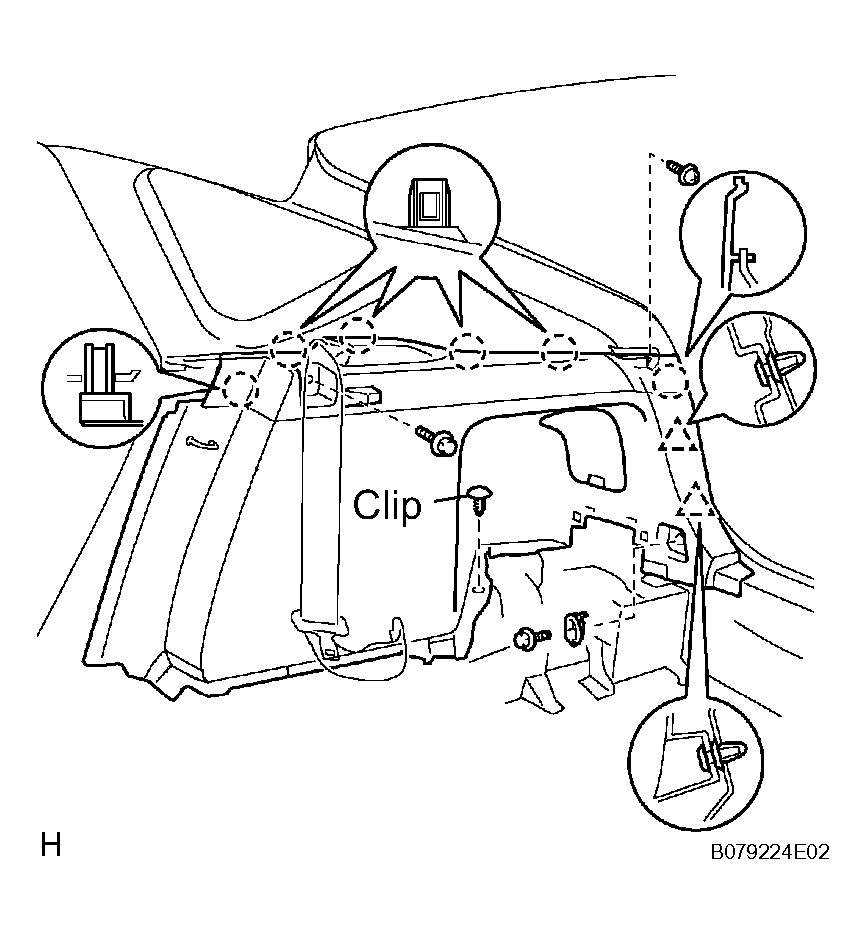

      Fig 11: Installing Deck Trim Side Panel Assembly RH
      G04477247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL REAR DECK TRIM COVER
    1. Attach the 4 claws to install the trim cover.
      Fig 12: Installing Rear Deck Trim Cover
      G04477248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL REAR NO. 1 FLOOR BOARD
    1. Attach the 5 clips to install the floor board.
    2. Install the 2 clips, 2 bolts and 2 rope hooks.

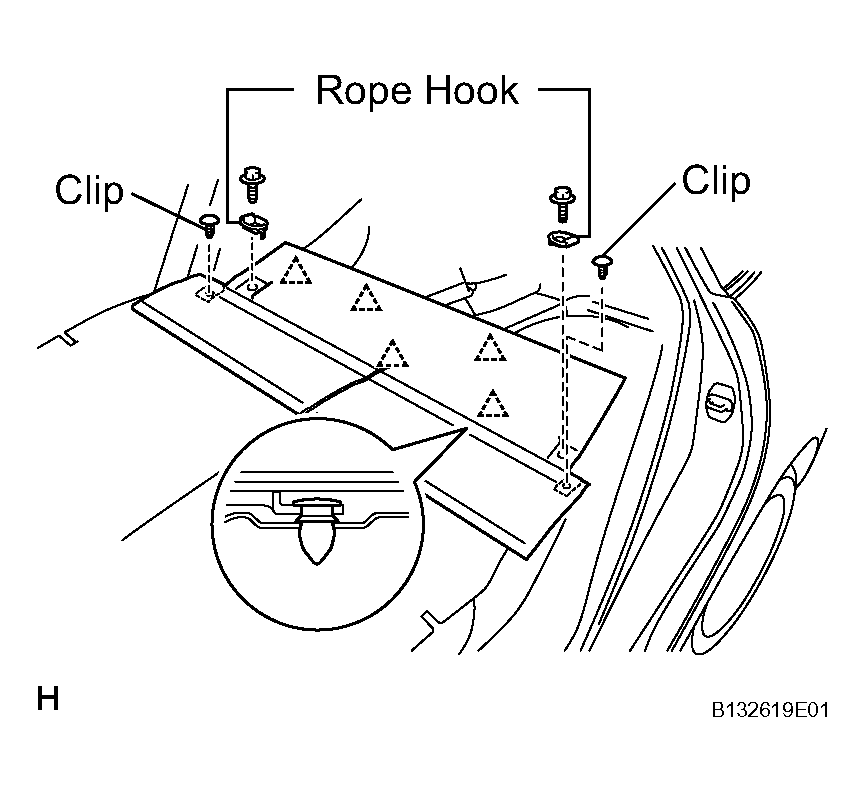

    Fig 13: Installing Rear No. 1 Floor Board
    G04477249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL DECK FLOOR BOX LH
  16. INSTALL REAR DECK FLOOR BOX
  17. INSTALL REAR NO. 4 FLOOR BOARD
  18. INSTALL REAR NO. 3 FLOOR BOARD
  19. INSTALL REAR NO. 2 FLOOR BOARD
  20. INSTALL TONNEAU COVER ASSEMBLY
  21. INSTALL BACK DOOR WEATHERSTRIP
  22. DISCONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH
    1. Connect the floor anchor with the bolt.

      Torque: 42 N*m (430 kgf*cm, 31 ft.*lbf)

  23. DISCONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH
    1. Connect the floor anchor with the bolt.

      Torque: 42 N*m (430 kgf*cm, 31 ft.*lbf)

  24. INSTALL CENTER PILLAR GARNISH LH
    1. Attach the clip to install the pillar garnish.
    2. Install the 2 screws.

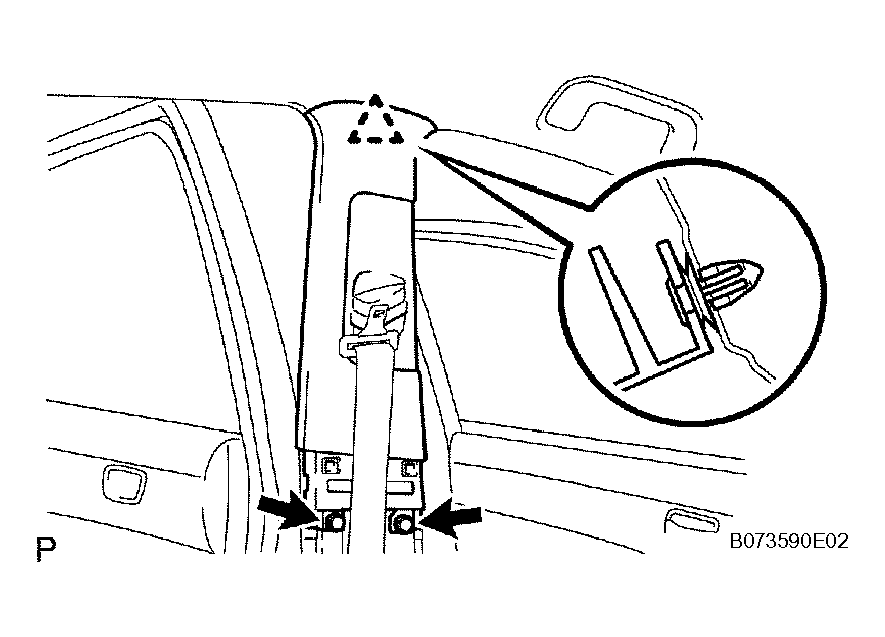

    Fig 14: Installing Center Pillar Garnish
    G04477250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

  26. INSTALL CENTER PILLAR LOWER GARNISH LH
    1. Attach the 2 claws and 2 clips to the lower garnish.

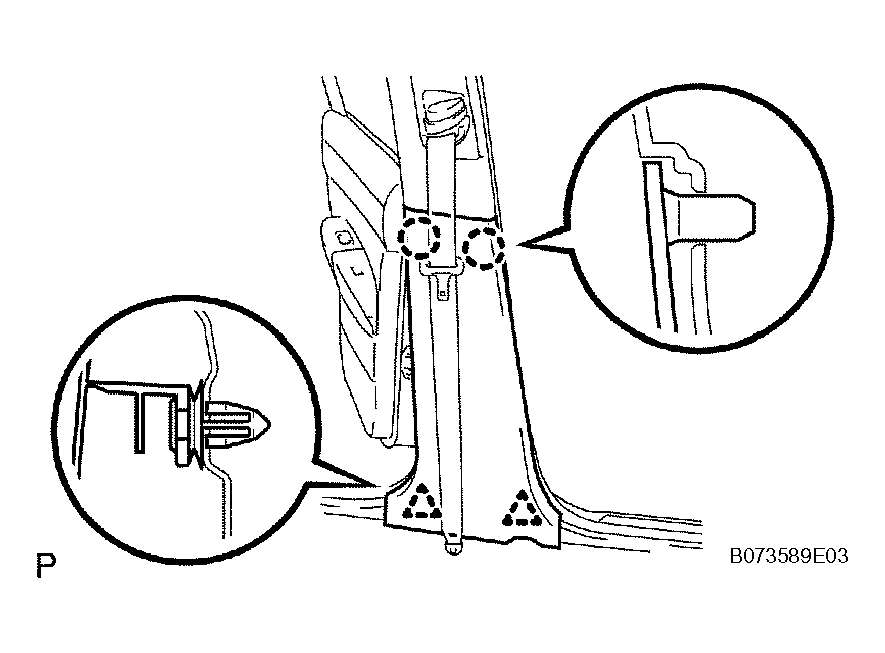

    Fig 15: Installing Center Pillar Lower Garnish
    G04477251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL CENTER PILLAR LOWER GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

  28. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY RH
    1. Connect the floor anchor with the bolt.

      Torque: 42 N*m (430 kgf*cm, 31 ft.*lbf)

  29. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH
    1. Connect the floor anchor with the bolt.

      Torque: 42 N*m (430 kgf*cm, 31 ft.*lbf)

  30. INSTALL LAP BELT OUTER ANCHOR COVER
    1. Attach the 3 claws to install the anchor cover.

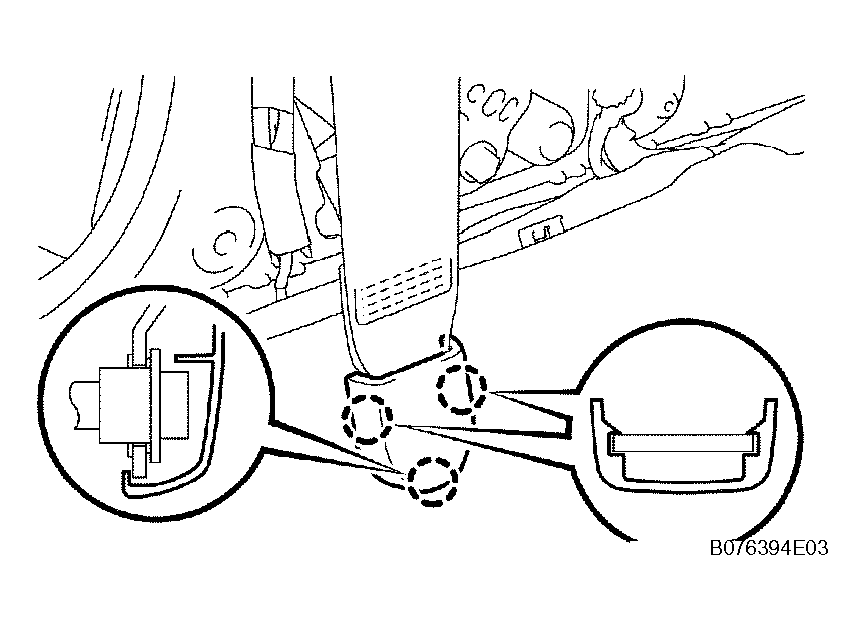

    Fig 16: Installing Lap Belt Outer Anchor Cover
    G04477252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
  32. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH
  33. INSTALL REAR SIDE SEATBACK FRAME LH
    1. Attach the claw to install the frame.
    2. Install the bolt.

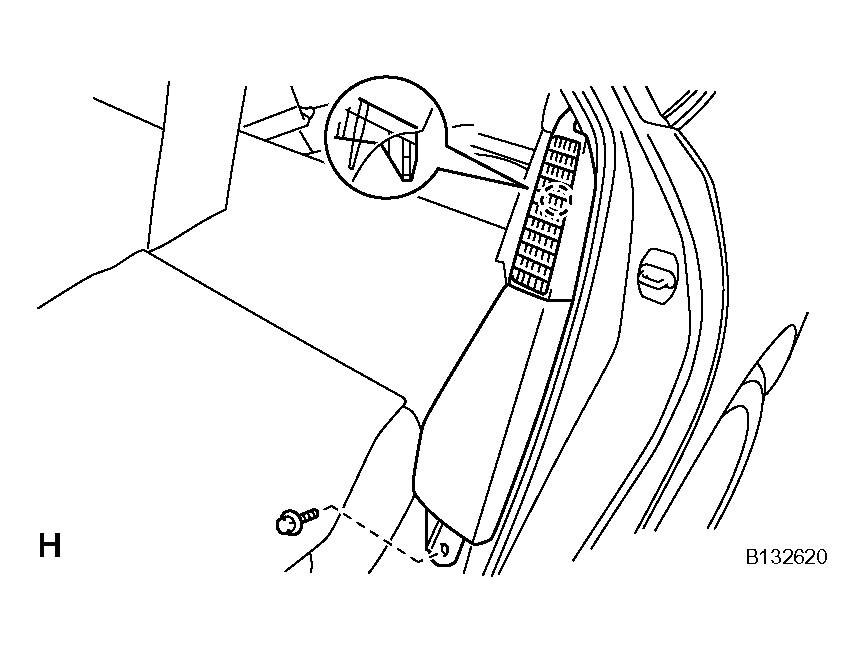

    Fig 17: Installing Rear Side Seatback Frame
    G04477253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL REAR SIDE SEATBACK FRAME RH

    HINT:

    Use the same procedures described for the LH side.

  35. INSTALL REAR DOOR SCUFF PLATE LH
    1. Attach the 6 claws and clip to install the scuff plate.

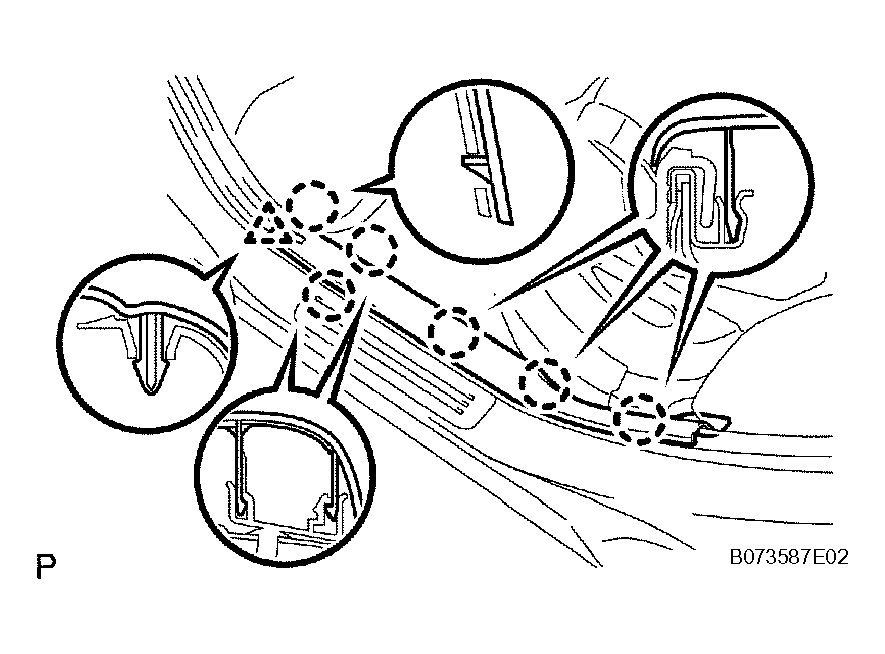

    Fig 18: Installing Rear Door Scuff Plate
    G04477254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. INSTALL REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures described for the LH side.

  37. INSTALL REAR SEAT CUSHION ASSEMBLY (see  INSTALLATION  )
  38. INSTALL FRONT PILLAR GARNISH LH
    1. w/o Curtain Shield Airbag:

      Attach the 2 clips to install the pillar garnish.

    2. w/ Curtain Shield Airbag:

      Remove the protective cover.

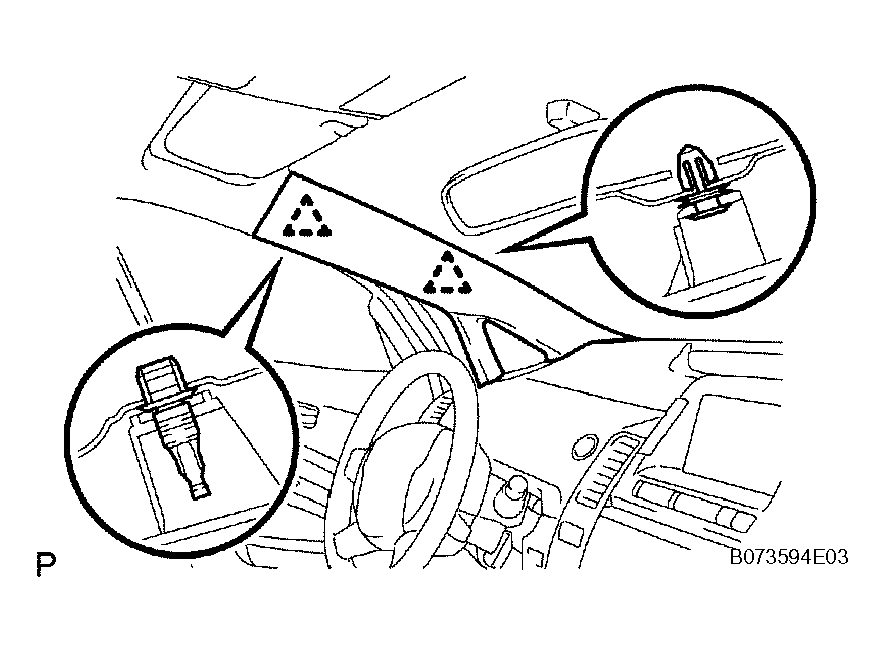

      Fig 19: Installing Front Pillar Garnish (W/O Curtain Shield Airbag)
      G04477255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. w/ Curtain Shield Airbag:

      Install the pillar garnish.

      1. Set the claws of the pillar garnish to the area labeled C.
      2. Insert the tip of clip A into the pillar garnish's hole.
      3. Using needle-nose pliers, rotate the tip of clip A 90°. Then push the pillar garnish toward the vehicle body to attach the base of clip A and clip B.

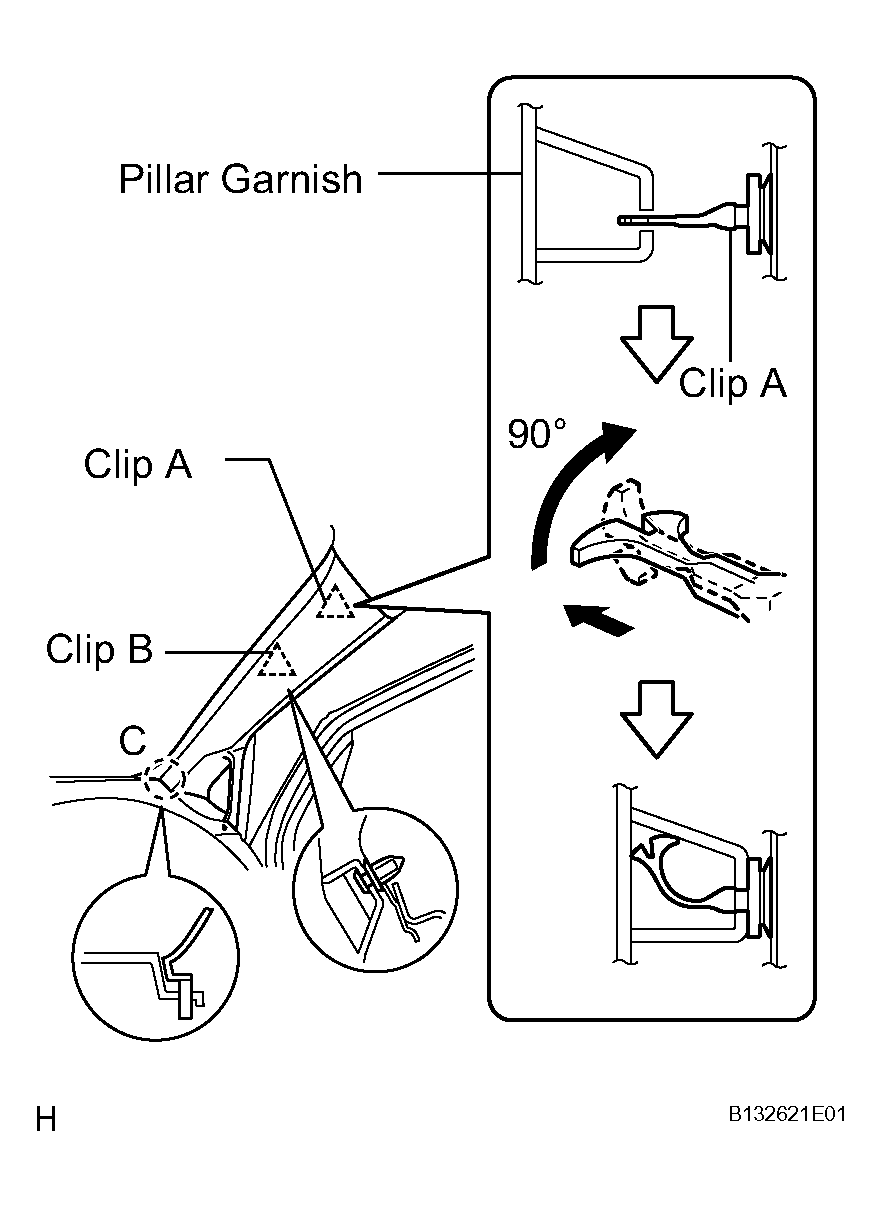

        4. Fig 20: Installing Front Pillar Garnish (W/ Curtain Shield Airbag)
        G04477256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. INSTALL FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

  40. INSTALL FRONT PILLAR GARNISH CORNER PIECE LH
    1. Put protective tape as shown in Fig 21.

      Standard measurement

      STANDARD MEASUREMENT

      Area Specified Condition
      A 2.0 mm (0.079 in.)
      B 10.0 mm (0.394 in.)
      C 50.0 mm (1.969 in.)

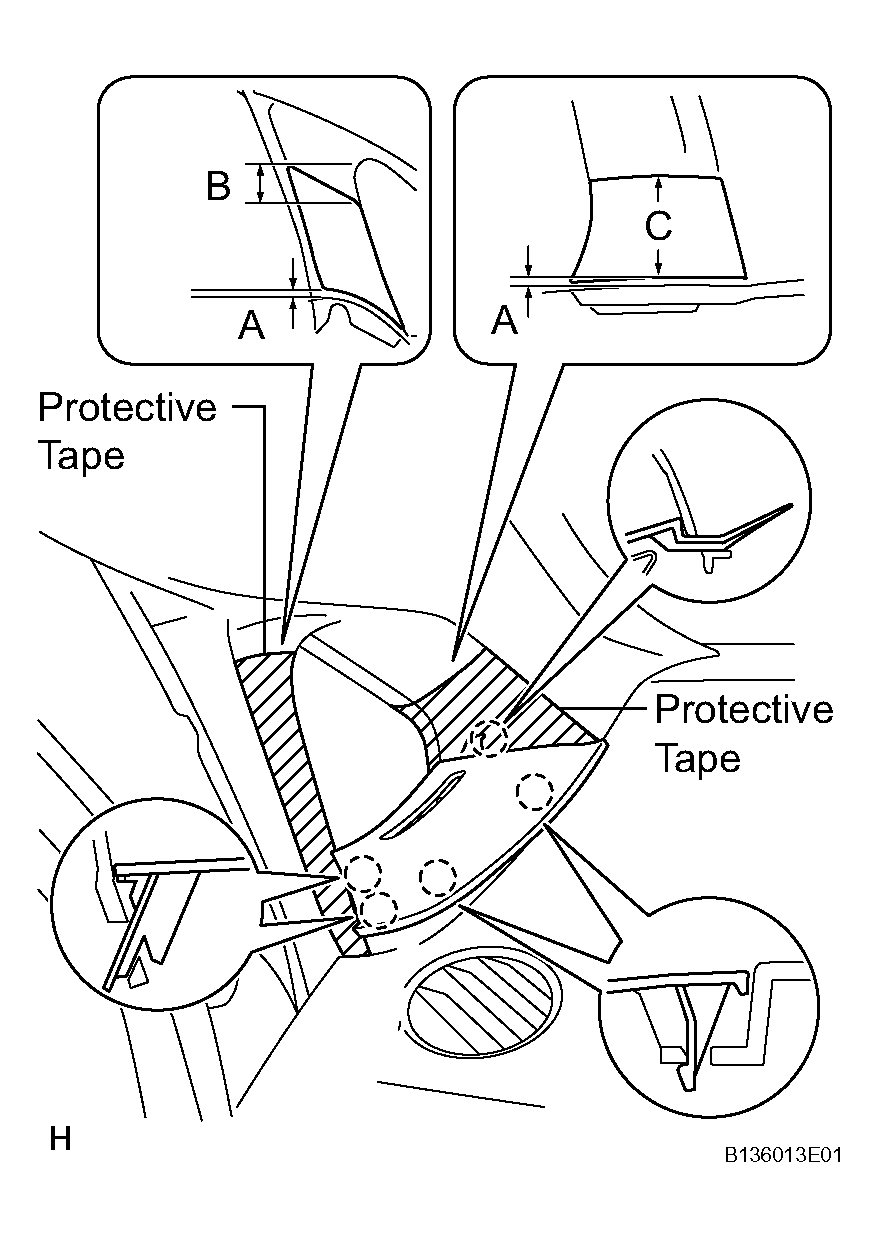

      Fig 21: Installing Front Pillar Garnish Corner Piece LH
      G04477257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the 5 claws to install the corner piece.
  41. INSTALL FRONT PILLAR GARNISH CORNER PIECE RH

    HINT:

    Use the same procedures described for the LH side.

  42. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  43. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  44. INSTALL COWL SIDE TRIM BOARD LH
    1. Attach the claw and 2 clips to install the trim board.

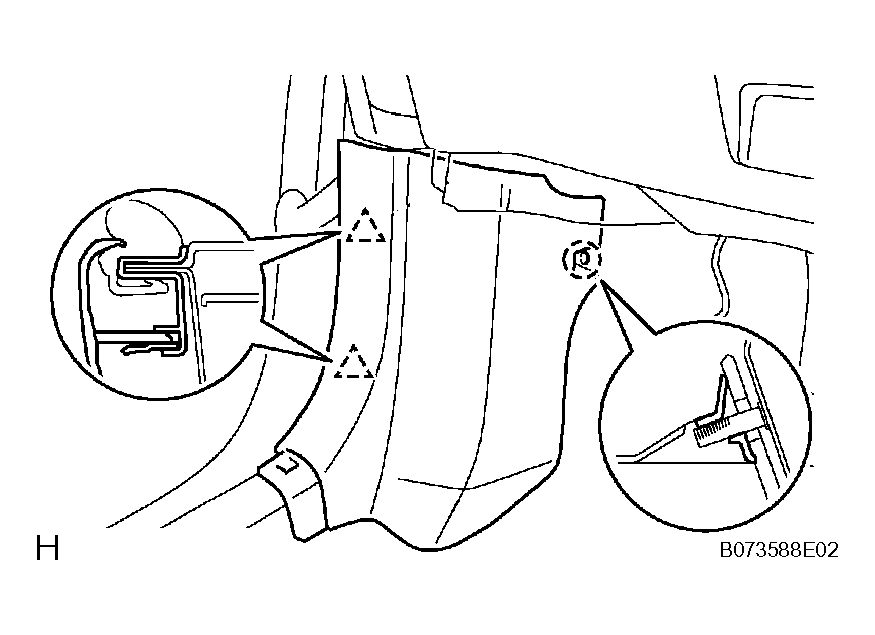

    Fig 22: Installing Cowl Side Trim Board
    G04477258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. INSTALL COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedures described for the LH side.

  46. INSTALL FRONT DOOR SCUFF PLATE LH
    1. Attach the 8 claws and 2 clips to install the scuff plate.

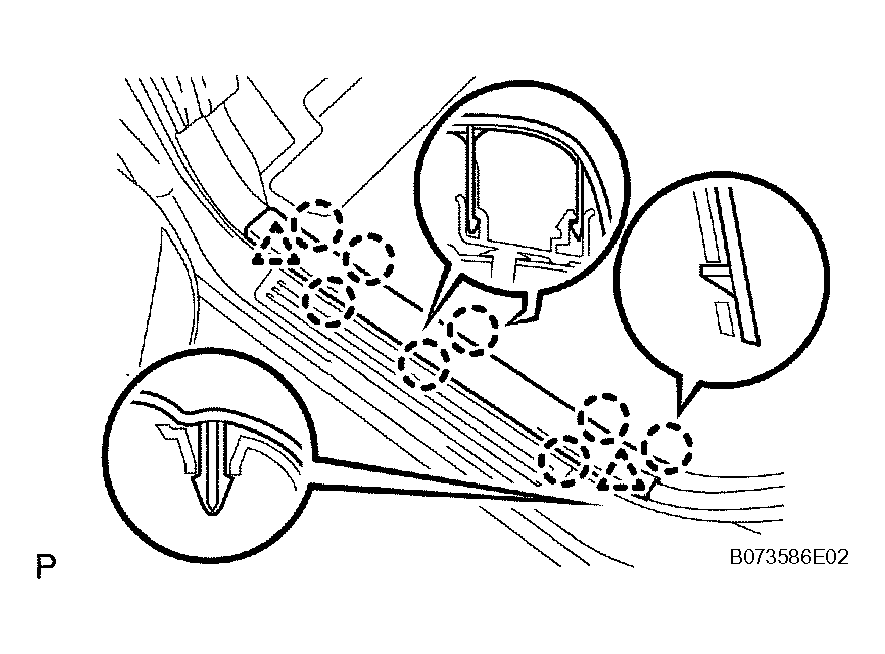

    Fig 23: Installing Front Door Scuff Plate
    G04477259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures described for the LH side.

  48. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  49. PERFORM INITIALIZATION
    1. Perform INITIALIZATION .
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
