Rear Spoiler: Components

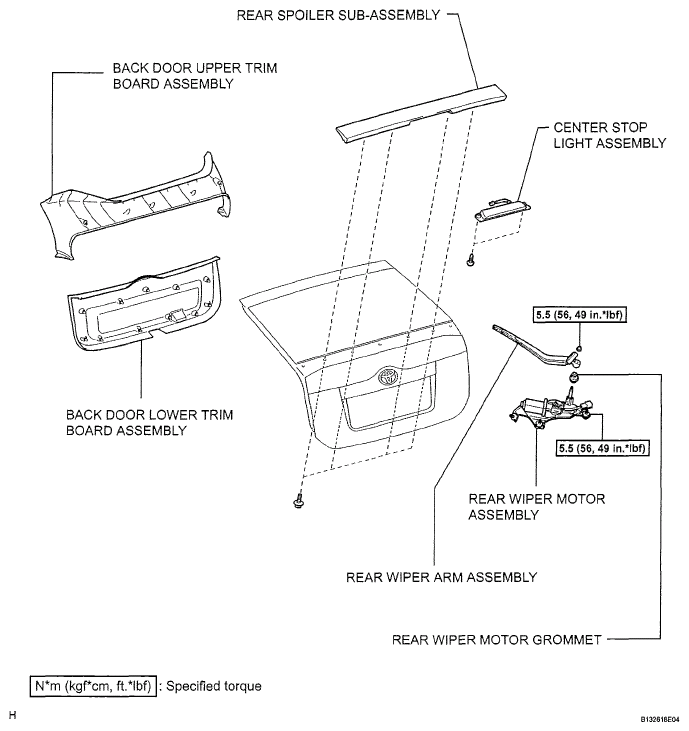

Fig 1: Rear Spoiler Replacement Components With Torque Specifications

G05190239

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
