Home >> Toyota >> 2007 >> Prius Base >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Door Lock >> Power Door Lock Control System >> Parts Location

Parts Location

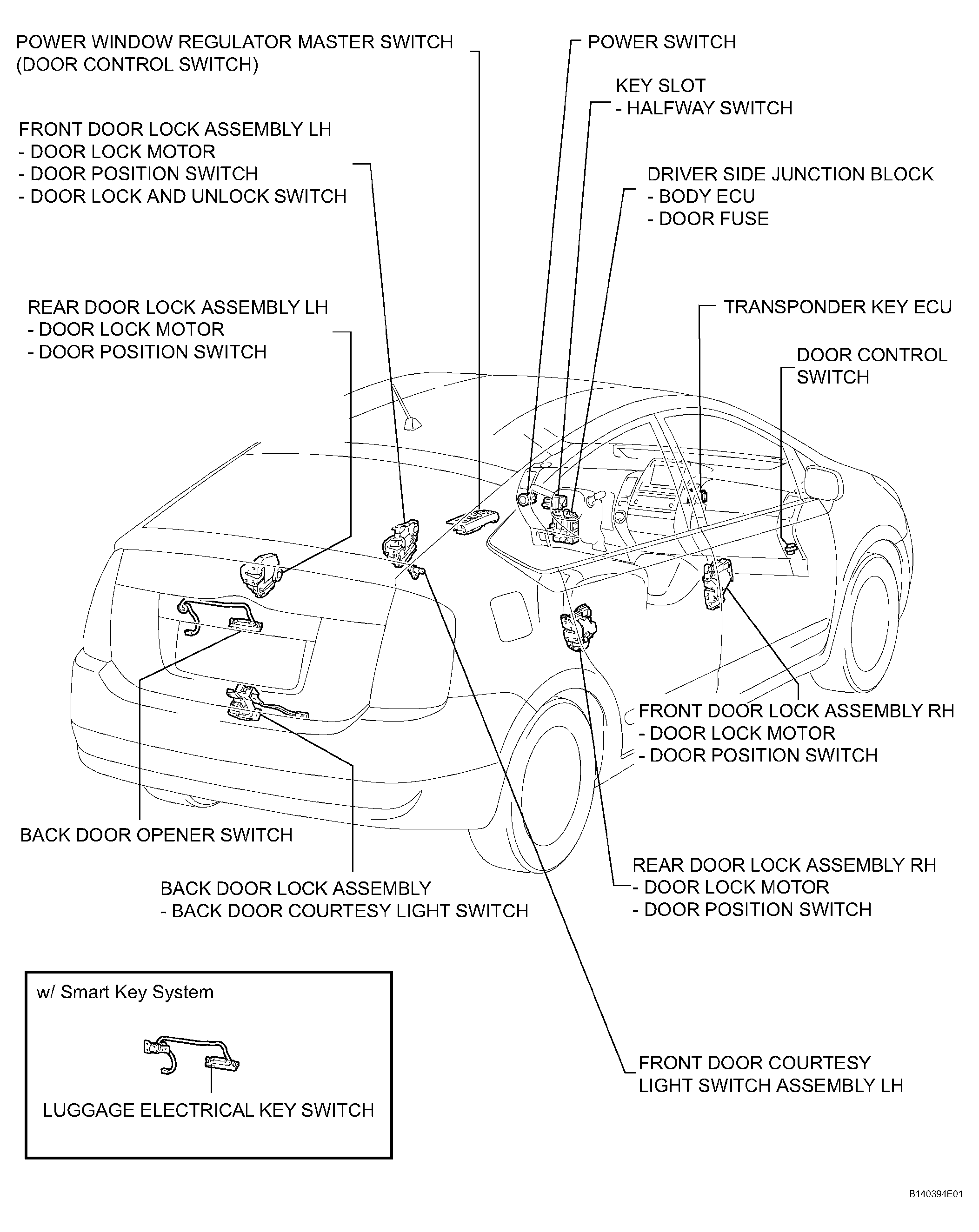

Fig 1: Identifying Power Door Lock Control System Components Parts Location

G04475976

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
