Parts Location

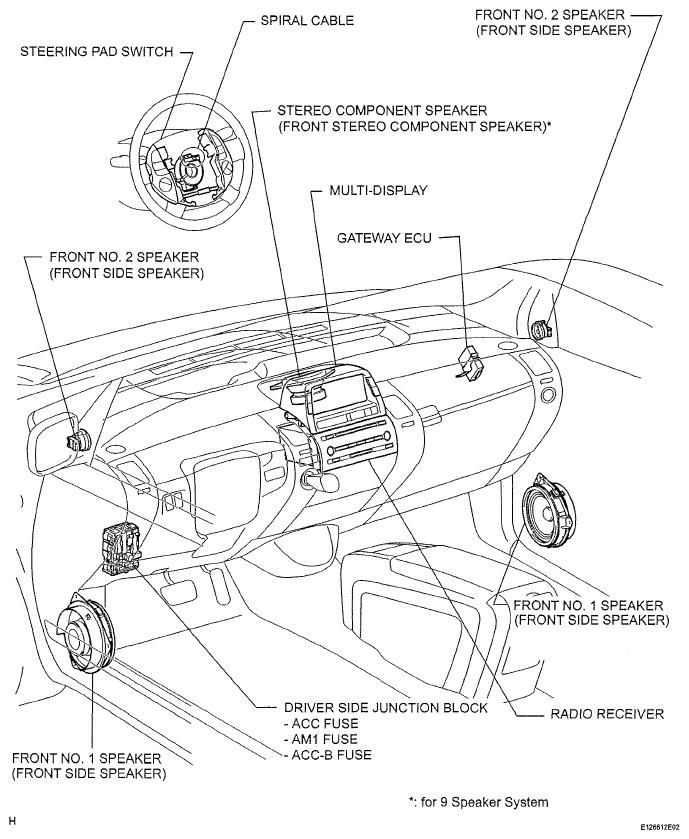

Fig 1: Identifying Audio And Visual System Components Location (1 Of 2)
G05189754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

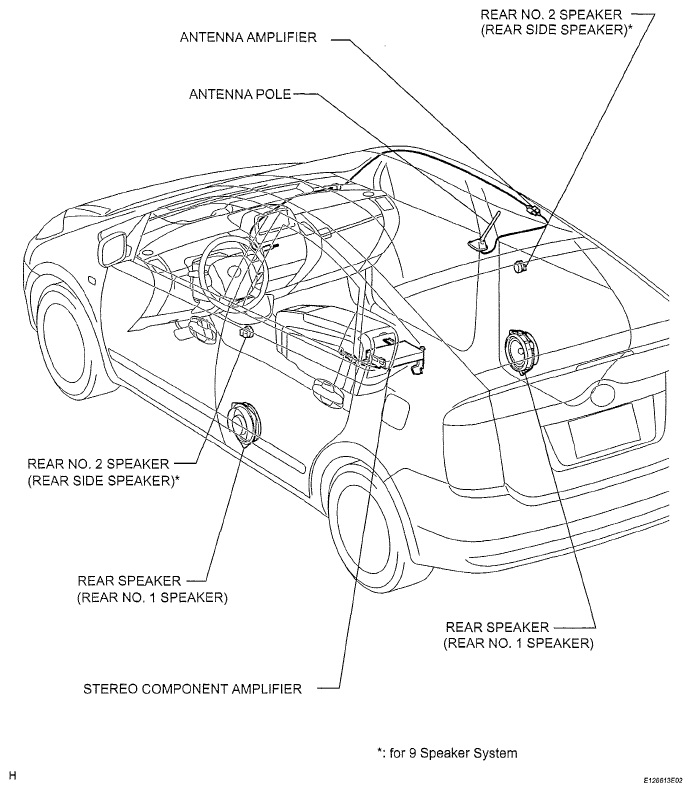

Fig 2: Identifying Audio And Visual System Components Location (2 Of 2)
G05189755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
