Rear Seat Outer Belt Assembly: Components

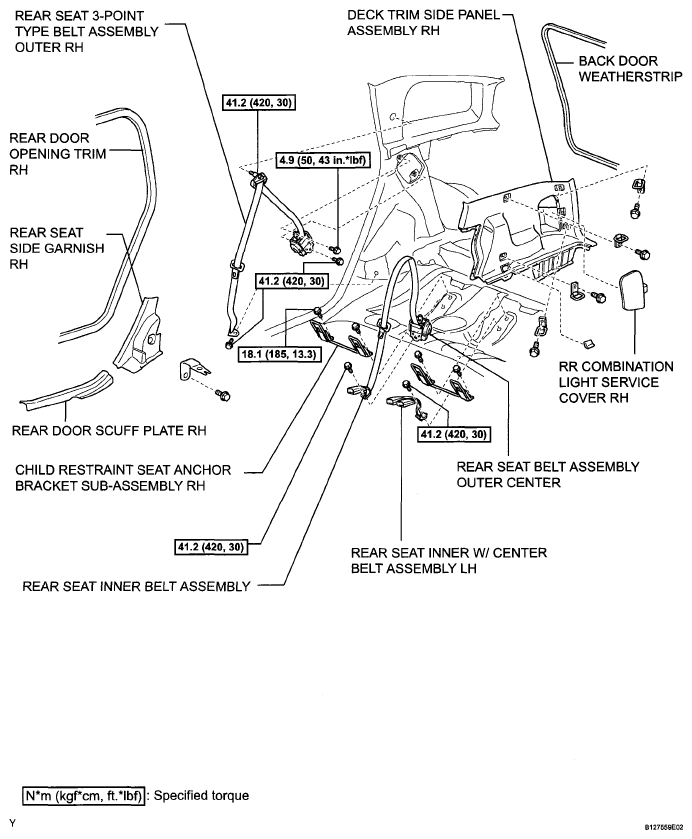

Fig 1: Rear Seat Belt Assembly Replacement Components With Torque Specifications (1 Of 2)
G05236683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

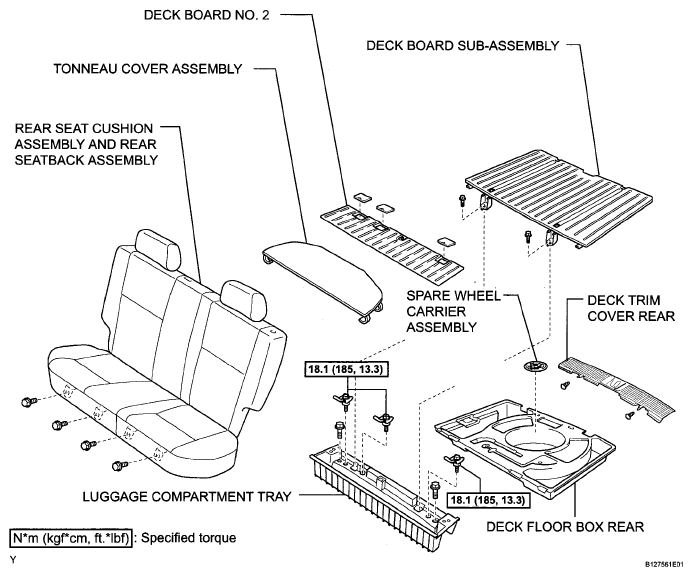

Fig 2: Rear Seat Belt Assembly Replacement Components With Torque Specifications (2 Of 2)
G05236684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
