2UZ-FE 4.7L

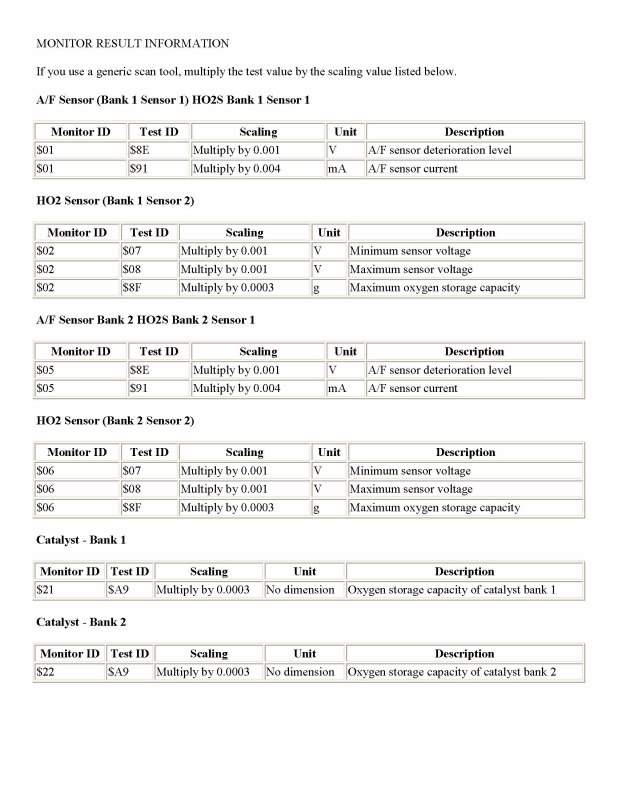

Fig 1: Mode 6 Data For 4Runner V8 (1 Of 4)
G00525822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

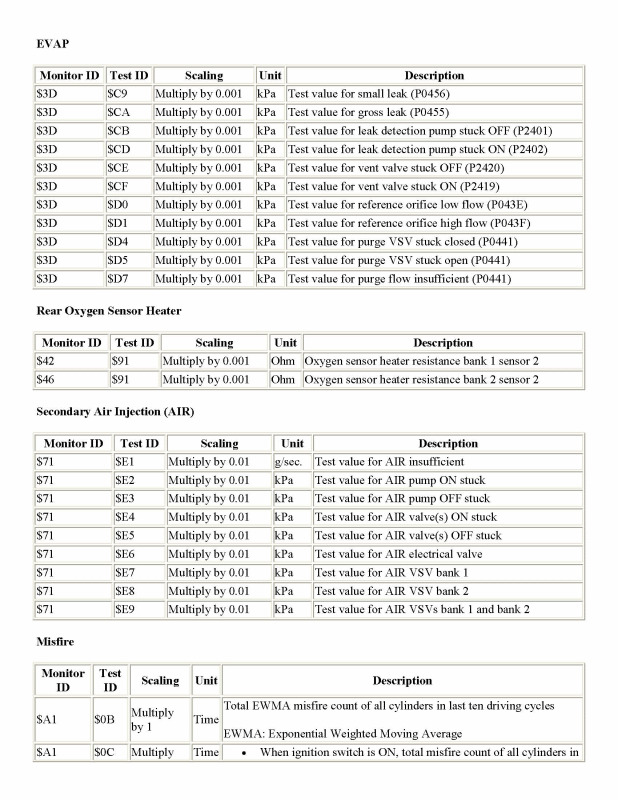

Fig 2: Mode 6 Data For 4Runner V8 (2 Of 4)
G00525823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

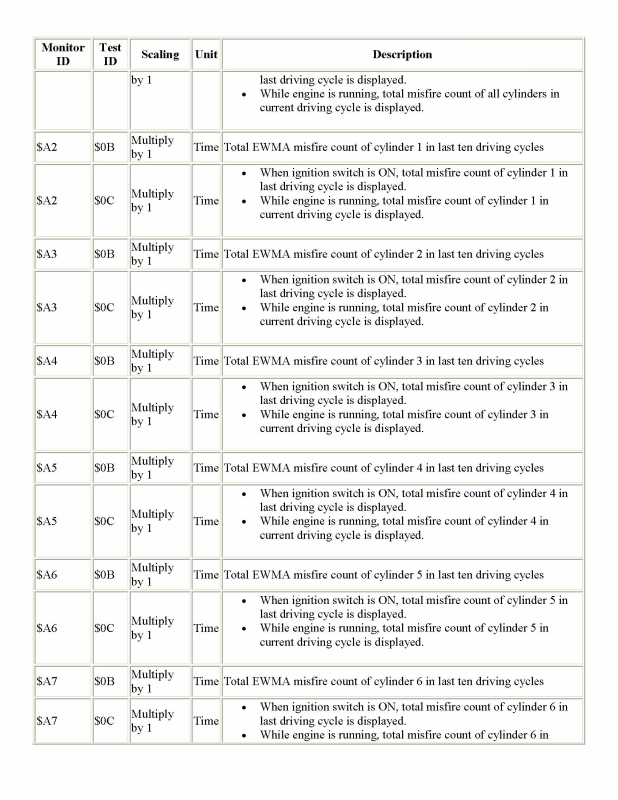

Fig 3: Mode 6 Data For 4Runner V8 (3 Of 4)
G00525824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

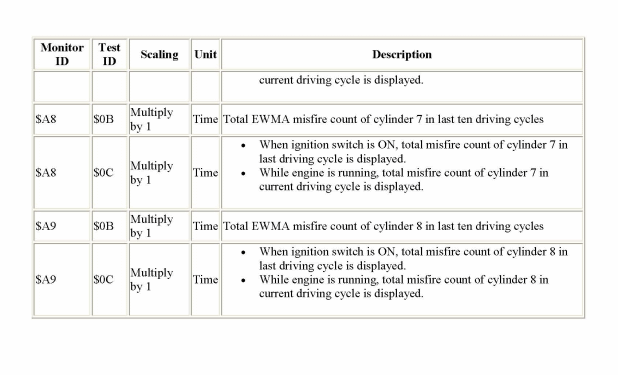

Fig 4: Mode 6 Data For 4Runner V8 (4 Of 4)
G00525825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
