Section 1 (Automatic Transmission - A246E)
>>
Second Brake Piston
>>
Components
Second Brake Piston: Components
WARNING:
This page is about a different variant/trim than selected.

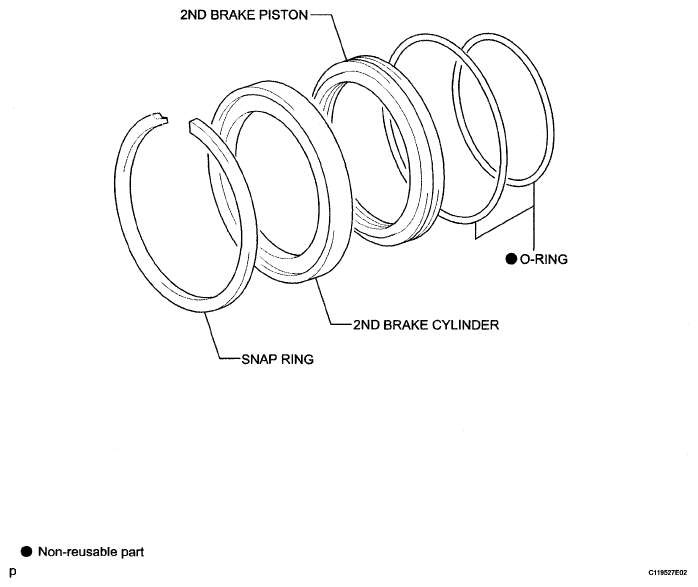

Fig 1: Identifying Second Brake Piston Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
