Park/ Neutral Position Switch: Components

WARNING: This page is about a different variant/trim than selected.

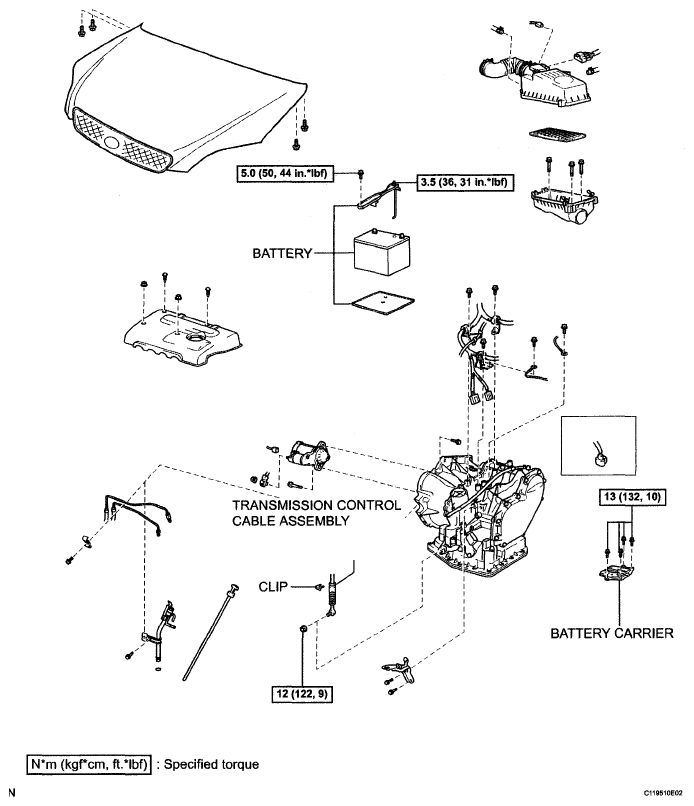

Fig 1: Park/Neutral Position Switch Replacement Components With Torque Specifications (1 Of 2)
G05233912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

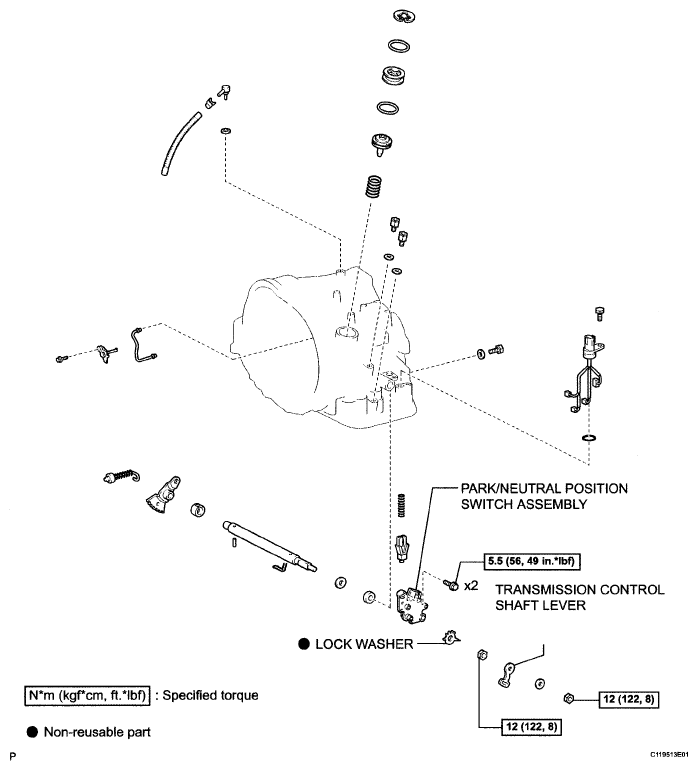

Fig 2: Park/Neutral Position Switch Replacement Components With Torque Specifications (2 Of 2)
G05233913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
