Section 1 (Automatic Transmission - A246E)
>>
Forward Clutch
>>
Components
Forward Clutch: Components
WARNING:
This page is about a different variant/trim than selected.

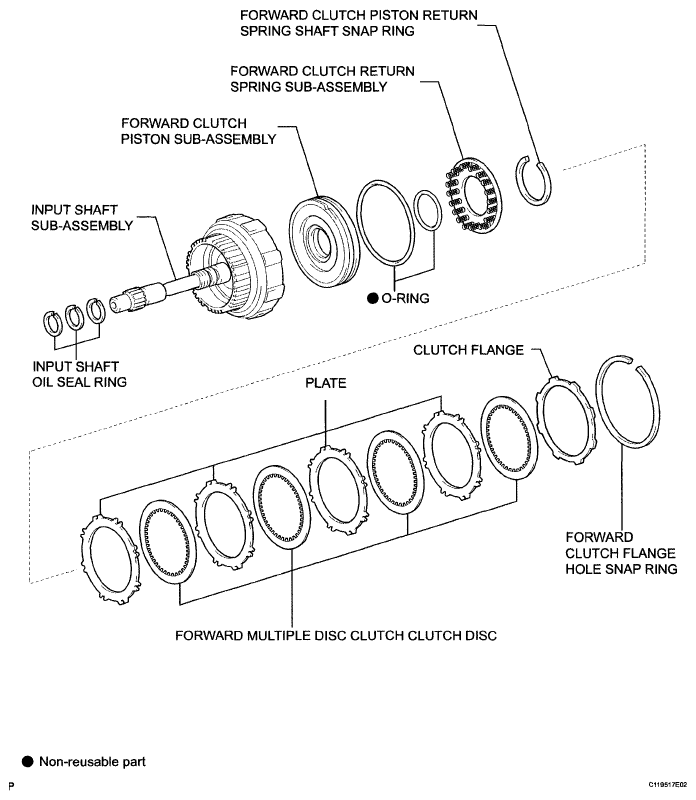

Fig 1: Identifying Forward Clutch Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
