Differential Case: Components

WARNING: This page is about a different variant/trim than selected.

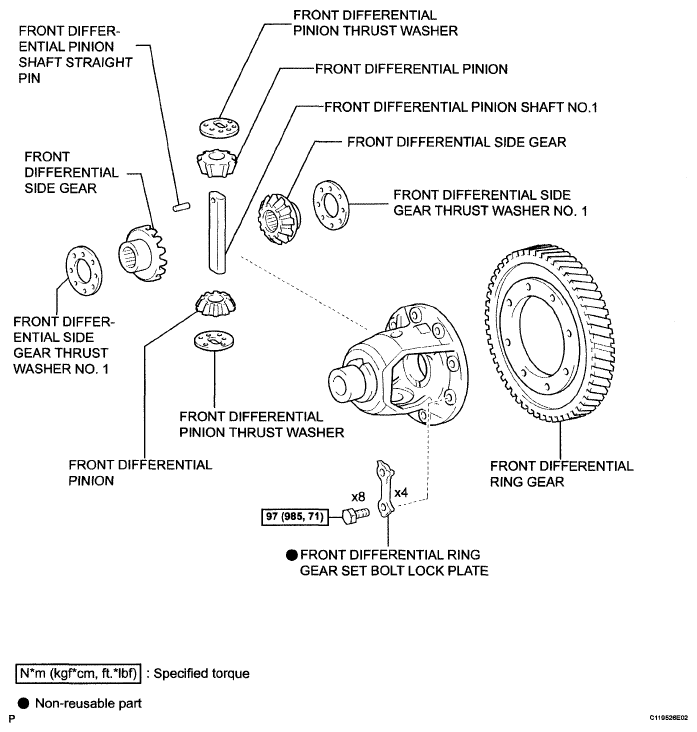

Fig 1: Exploded View Of Differential Case Components With Torque Specification
G05234481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
