System Diagram

WARNING: This page is about a different variant/trim than selected.

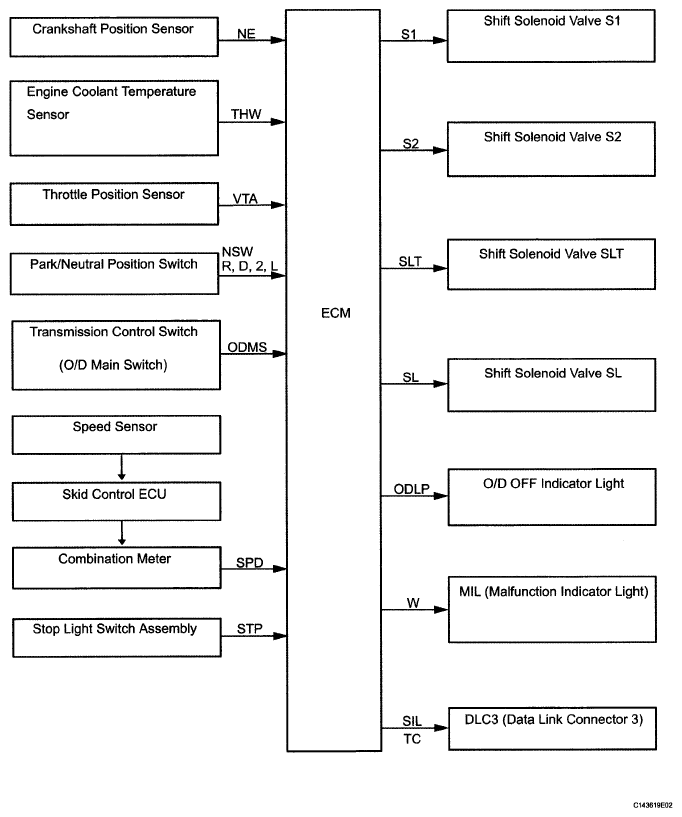

The configuration of the electronic control system in the A246E automatic transaxles is as shown in the following chart.

Fig 1: Automatic Transaxle System Diagram
G05233867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
