Fog Light Assembly: Adjustment

  1. PREPARE VEHICLE FOR FOG LIGHT AIMING ADJUSTMENT
    1. Prepare the vehicle:
      • Ensure there is no damage or deformation to the body around the fog lights.
      • Fill the fuel tank.
      • Make sure that the oil is filled to the specified level.
      • Make sure that the coolant is filled to the specified level.
      • Inflate the tires to the appropriate pressure.
      • Place the spare tire, tools, and jack in their original position.
      • Unload the trunk.
      • Sit a person of average weight (68 kg, 150 lb) in the driver's seat.
        Fig 1: Removing Fog Light Assembly
        G05236860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. PREPARE FOR FOG LIGHT AIMING
    1. Prepare the vehicle according to the following conditions:
      • Place the vehicle in a location that is dark enough to clearly observe the cutoff line. The cutoff line is a distinct line, below which light from the headlight can be observed and above which it cannot.
      • Place the vehicle at a 90° angle to the wall.
      • Create a 7.62m (25 ft) distance between the vehicle (fog light bulb center) and the wall.
      • Place the vehicle on a level surface.
      • Bounce the vehicle up and down to settle the suspension.
        Fig 2: Identifying Distance Between Vehicle (Fog Light Bulb Center) And Wall
        G05195960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE: A distance of 7.62 m (25 ft) between the vehicle (fog light bulb center) and the wall is necessary for proper aim adjustment. If unavailable, secure a distance of exactly 3 m (9.84 ft) for check and adjustment. (The target zone will change with the distance so follow the instructions in the illustration.)
    2. Prepare a piece of thick white paper to use as a screen.
    3. Draw a vertical line down the center of screen (V line).
    4. Set the screen as shown in the illustration.

      HINT:

      • Stand the screen perpendicular to the ground.
      • Align the V line on the screen with the center of the vehicle.

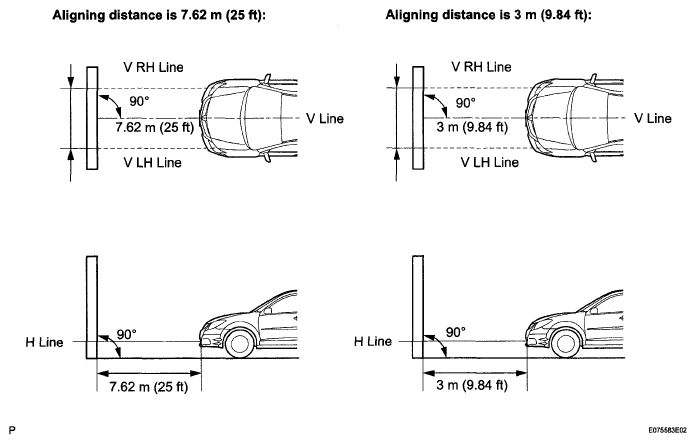

        Fig 3: Identifying Fog Light Aligning Distance Screen
        G05236862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Draw base lines (H line, V LH, V RH lines) on the screen as shown in the illustration.

      HINT:

      Mark the fog light bulb center marks on the screen. If the center mark cannot be observed on the fog light, use the center of the fog light bulb or the manufacturer's name marked on the fog light as the center mark.

      1. H Line (Fog light height):

        Draw a horizontal line across the screen so that it passes through the center marks. The H line should be at the same height as the fog light bulb center marks of the low-beam fog lights.

      2. V LH Line, V RH Line (Center mark position of left-hand (LH) and right-hand (RH) fog lights):

        Draw two vertical lines so that they intersect the H line at each center mark.

        Fig 4: Drawing Base Lines (H Line, V LH, V RH Lines) On Screen
        G05195962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT FOG LIGHT AIMING
    1. Cover or disconnect the connector of the fog light on the opposite side to prevent light from the fog light not being inspected from affecting fog light aiming inspection.
    2. Start the engine.
      NOTE: Engine RPM must be 1,500 or more.
    3. Turn on the fog light and make sure that the cutoff line falls within the specified area, as shown in the illustration.
      Fig 5: Inspecting Fog Light Aiming
      G05195963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. ADJUST FOG LIGHT AIMING
    1. Adjust the fog light aim into the specified range by turning the aiming screw with a screwdriver.
      NOTE: The final turn of the aiming screw should be made in the clockwise direction. If the screw is tightened excessively, loosen it and then retighten it, so that the final turn of the screw is in the clockwise direction.
    2. Fig 6: Adjusting Fog Light Aiming
      G05236857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
