Home >> Toyota >> 2007 >> Matrix Base, Standard >> Repair and Diagnosis (Single Page) >> Transmission >> Manual Trans >> Manual Transmission - C59 >> Transmission Control Cable >> Components

Transmission Control Cable: Components

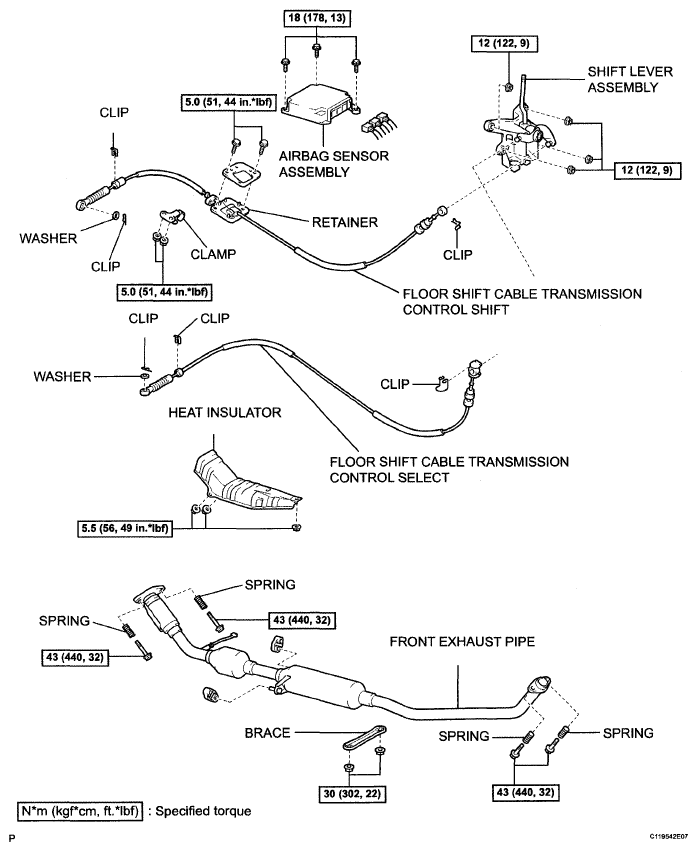

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications

G05234572

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
