DTC B1781 Front Occupant Classification Sensor RH Circuit Malfunction: Wiring Diagram

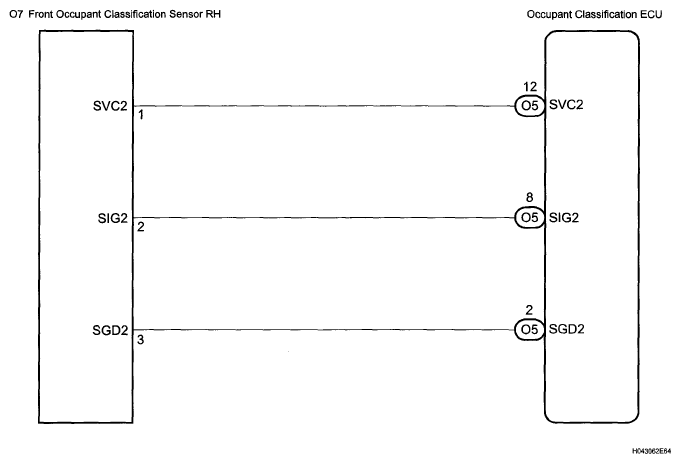

Fig 1: Front Occupant Classification Sensor RH Circuit Malfunction - Wiring Diagram
G05236527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
