Skid Control ECU Communication Stop Mode: Wiring Diagram

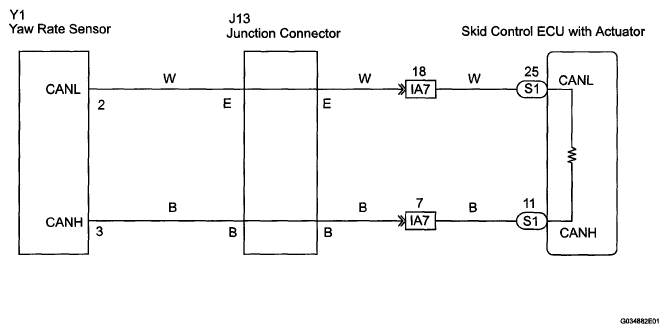

Fig 1: Skid Control ECU With Actuator - Wiring Diagram

G05237528

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
