UNDERDRIVE Clutch: Components

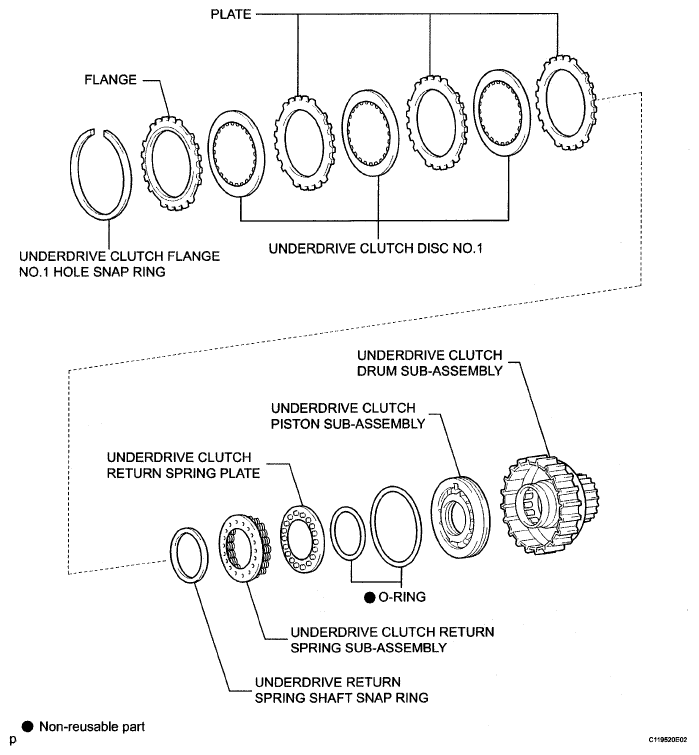

Fig 1: Exploded View Of Underdrive Clutch Components

G05234463

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
