Center Airbag Sensor Assembly: Components

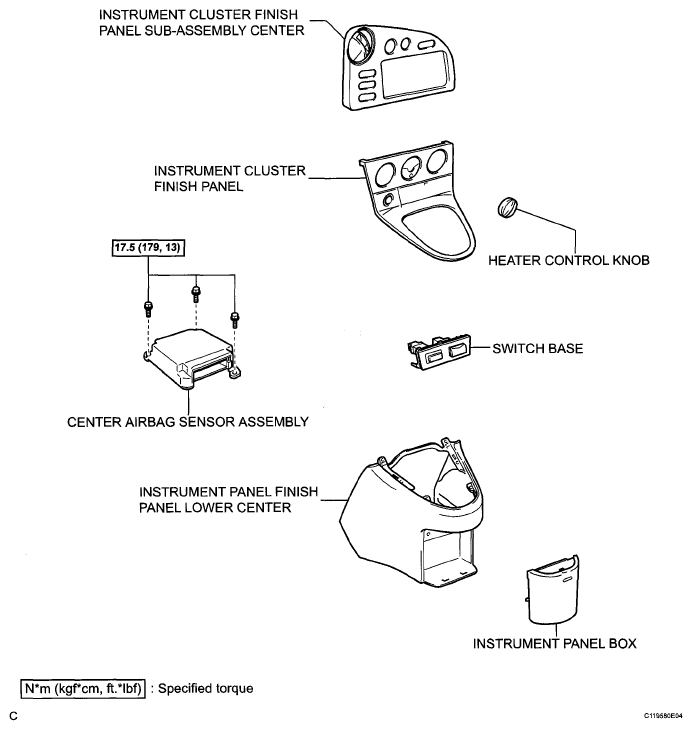

Fig 1: Center Airbag Sensor Assembly Replacement Components With Torque Specifications

G05236644

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
