Section 1 (Manual Transmission - C59)
>>
Input Shaft
>>
Components
Input Shaft: Components
WARNING:
This page is about a different variant/trim than selected.

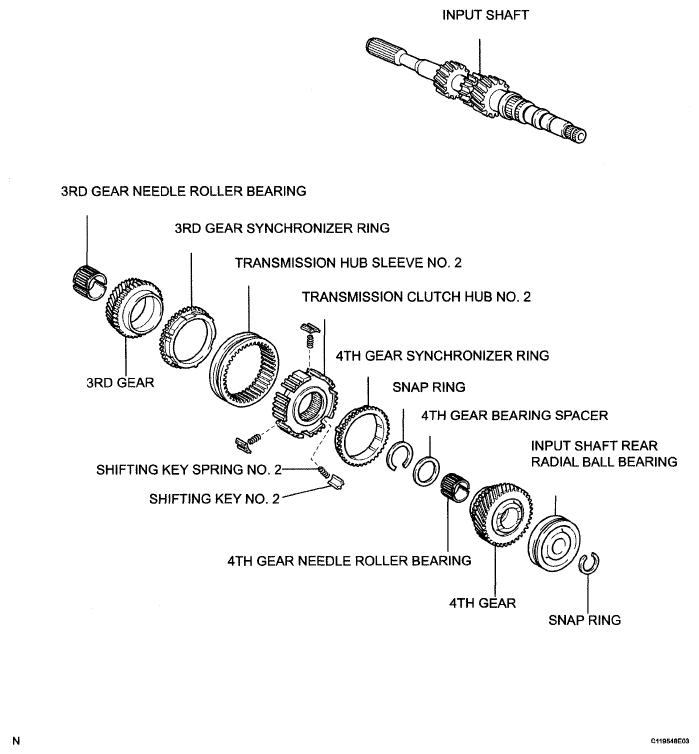

Fig 1: Exploded View Of Input Shaft
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
