Floor Shift Lever Assembly: Components

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Floor Shift Lever Components (1 Of 2)
G05234560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

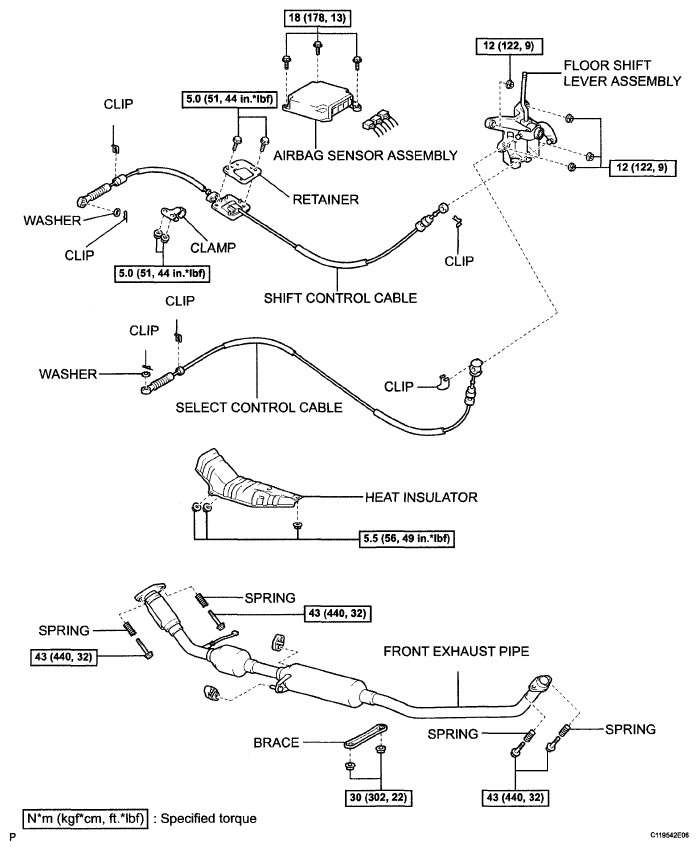

Fig 2: Floor Shift Lever Assembly Replacement Components With Torque Specifications (2 Of 2)
G05234561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
