Differential Case: Components

WARNING: This page is about a different variant/trim than selected.

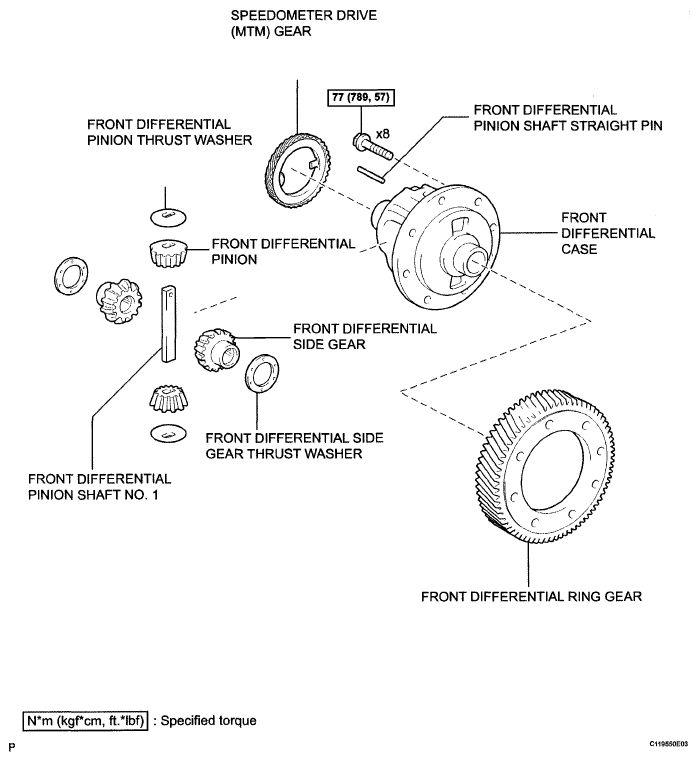

Fig 1: Differential Case Replacement Components With Torque Specifications
G05234874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
