DTC P2102 Throttle Actuator Control Motor Circuit Low; DTC P2103 Throttle Actuator Control Motor Circuit High: Wiring Diagram

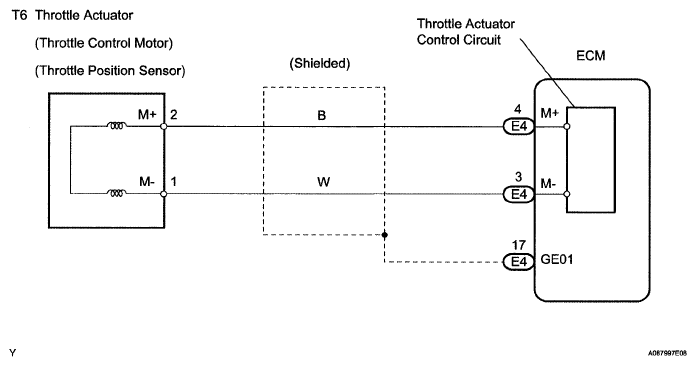

Fig 1: Throttle Actuator Control Motor Wiring Diagram
G05232841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
