Timing Chain: Removal

DISCONNECT BATTERY NEGATIVE TERMINAL
REMOVE FRONT WHEEL RH
REMOVE ENGINE UNDER COVER RH
REMOVE CYLINDER HEAD COVER NO.2
1. Remove the 2 nuts and 2 clips, then remove the cylinder head cover No. 2.
DRAIN ENGINE COOLANT
1. Drain the engine coolant (See COOLANT ).
REMOVE FAN AND GENERATOR V BELT
1. Remove the fan and generator V belt (See REMOVAL ).
SEPARATE VANE PUMP ASSEMBLY
1. Separate the vane pump assembly (See REMOVAL ).
REMOVE GENERATOR ASSEMBLY
1. Remove the generator assembly (See REMOVAL ).
REMOVE ENGINE MOUNTING INSULATOR RH
1. Remove the 2 bolts, then remove the oil reservoir bracket No. 1.

  Fig 2: Locating Oil Reservoir Bracket And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Place a wooden block on a jack underneath the engine.

  Fig 3: Placing Wooden Block On Jack Underneath Engine
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 4 bolts and 2 nuts, then remove the engine mounting insulator RH.

  Fig 4: Locating Engine Mounting Insulator RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE IGNITION COIL ASSEMBLY
1. Disconnect the 4 ignition coil connectors.

  Fig 5: Locating Ignition Coil Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 nuts, then separate the engine wire.

  Fig 6: Locating Engine Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 4 bolts, then remove the 4 ignition coils.

  Fig 7: Locating Ignition Coils
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY
1. Disconnect the ventilation hose from the cylinder head cover.

  Fig 8: Locating Ventilation Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the ventilation hose No. 2 from the ventilation valve.
3. Remove the 3 clamps of the engine wire from the clamp bracket.

  Fig 9: Locating Ventilation Hose No. 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 9 bolts, 2 seal washers, 2 nuts and 3 clamp brackets, then remove the cylinder head cover.

  Fig 10: Locating Engine Mounting Bracket RH With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE V-RIBBED BELT TENSIONER ASSEMBLY
1. Remove the bolt and nut, then remove the V-ribbed belt tensioner.
  HINT:

  Jack the engine up and down to remove the bolt.

  Fig 11: Locating V-Ribbed Belt Tensioner
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ENGINE MOUNTING BRACKET RH
1. Remove the 3 bolts, then remove the engine mounting bracket RH.
Fig 12: Locating Engine Mounting Bracket RH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE WATER PUMP ASSEMBLY
1. Remove the water pump assembly (See REMOVAL ).
SEPARATE CRANKSHAFT POSITION SENSOR
1. Remove the 2 bolts, then separate the crankshaft position sensor.

  Fig 13: Locating Crankshaft Position Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

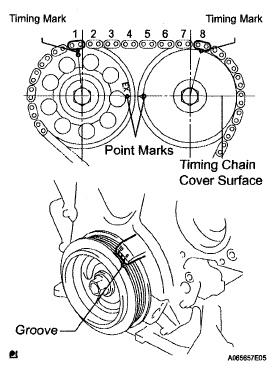

SET NO. 1 CYLINDER TO TDC / COMPRESSION
1. Turn the crankshaft pulley until its groove and timing mark "0" of the timing chain cover are aligned.
2. Check that the point marks of the camshaft timing gears are in a straight line on the timing chain cover surface as shown in the illustration.
  If not, turn the crankshaft 1 revolution (360°) to align the marks as above.

  Fig 14: Identifying Point Marks Of Camshaft Timing Gears
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CRANKSHAFT PULLEY
1. Using SST, remove the crankshaft pulley bolt.
  SST 09960-10010 (09962-01000, 09963-01000)
2. Remove the crankshaft pulley from the crankshaft.

  Fig 15: Removing Crankshaft Pulley Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CHAIN TENSIONER ASSEMBLY NO.1
1. Remove the 2 nuts, then remove the chain tensioner.
  NOTE: Do not turn the crankshaft without the chain tensioner.

  Fig 16: Removing Chain Tensioner And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TIMING CHAIN OR BELT COVER SUB-ASSEMBLY
1. Remove the 10 bolts and 2 nuts.
2. Using a "TORX" socket wrench (E8), remove the stud bolt.

  Fig 17: Removing Timing Chain Or Belt Cover Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the timing chain cover by prying the portions between the timing chain cover, cylinder head and cylinder block with a screwdriver.
  NOTE: Be careful not to damage the contact surfaces of the timing chain cover, cylinder head and cylinder block.
REMOVE TIMING CHAIN OR BELT COVER OIL SEAL
1. Place the timing chain cover on wooden blocks.
2. Using a screwdriver, remove the oil seal.

  Fig 18: Removing Oil Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CRANKSHAFT POSITION SENSOR PLATE NO.1
1. Remove the crankshaft position sensor plate from the crankshaft.

  Fig 19: Identifying Crankshaft Position Sensor Plate No.1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CHAIN TENSIONER SLIPPER
1. Remove the bolt, then remove the chain tensioner slipper.

  Fig 20: Locating Chain Tensioner Slipper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CHAIN SUB-ASSEMBLY
1. Using 2 screwdrivers, pry out the chain with the crankshaft timing gear, as shown in the illustration.
  NOTE:
  - Use a shop rag or piece of cloth to protect the engine.
  - If revolving the camshafts with the chain off the gears, turn the crankshaft 1/4 revolution to prevent the valves from coming into contact with the pistons.

    Fig 21: Prying Out Chain With Crankshaft Timing Gear
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
