Timing Chain: Components

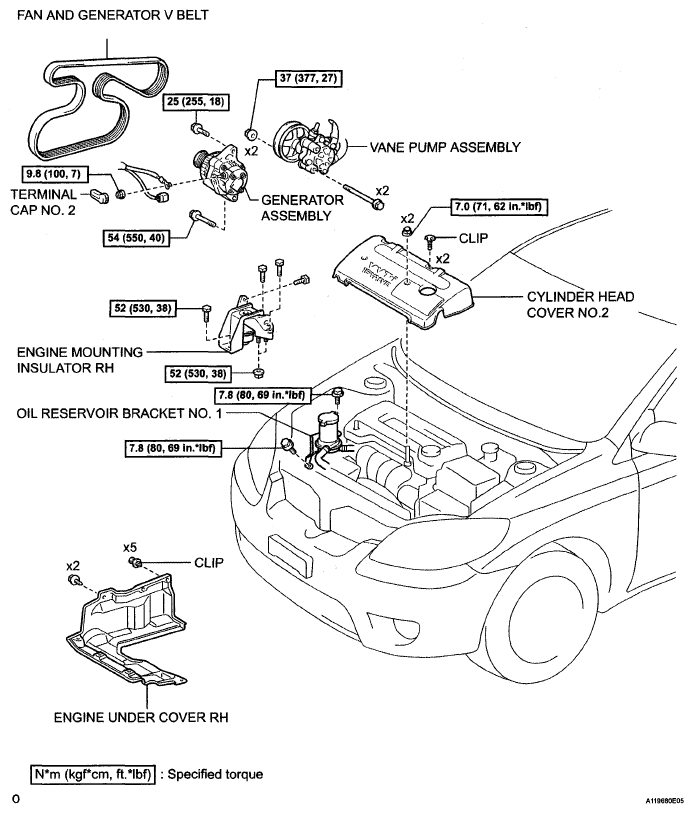

Fig 1: Engine Replacement Components With Torque Specifications (1 Of 3)
G05233016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

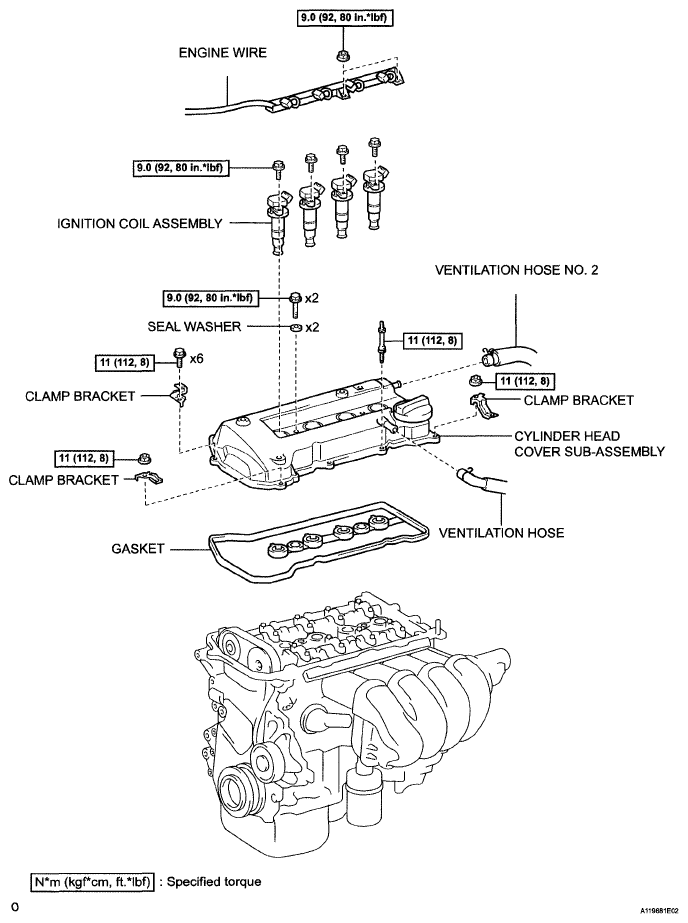

Fig 2: Engine Replacement Components With Torque Specifications (2 Of 3)
G05233017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

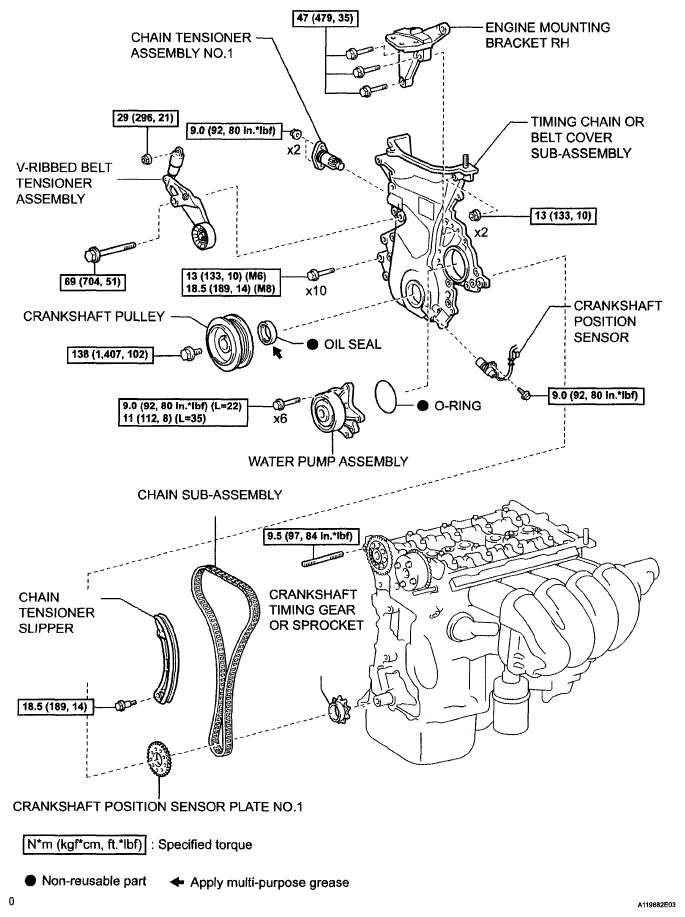

Fig 3: Engine Replacement Components With Torque Specifications (3 Of 3)
G05233018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
